PART №1637

High-Mounted Stop-Lamp Access Knob

ABS · Nylon · PETG1 FILECC-BYExterior lighting, cameras & sensors
SummaryREF 1637
PART
High-Mounted Stop-Lamp Access Knob
OEM
FITS
SL R129
PartREV 2026

Loading 3D viewer...

Ref 16371 STL filePrints without supports
Field photographs
3 PLATES
Plate 1 of 3

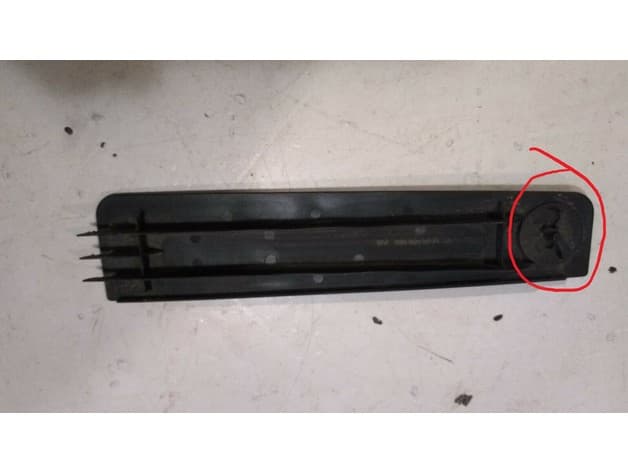

PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1637
  • [01]BrakeLightAccessDoor.STL.STL
  • [02]Bounding box22.000 × 22.000 × 12.500 mm
  • [03]Volume532.937 mm³
Field notes
BY PREADOR

Replacement knob for the access cover on the high-mounted stop-lamp assembly. The creator instructs removing the broken knob base, bonding this print in its place and printing sideways for strength. The cited 1297500039 number identifies the surrounding lamp-cover assembly rather than this repair fragment and is not assigned. Use cabin-heat- and UV-resistant material, choose adhesive compatible with the original plastic and verify that the cover remains secure and the stop lamp operates correctly.
