PART №1597

Ignition-Key Handle Case

ABS · Nylon · PETGMULTI-PART2 FILESCC-BY-NCDashboard & controls
SummaryREF 1597
PART
Ignition-Key Handle Case
OEM
FITS
W123 Series W123 / S123 / C123
PartREV 2026

Loading 3D viewer...

Ref 15972 STL filesPrints without supports
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Files & dimensions
MAN-1597
  • [01]Lower part.stl.STL
  • [02]Upper part.stl.STL
  • [03]Bounding box30.197 × 25.000 × 7.618 mm
  • [04]Volume3,226.584 mm³
Field notes
BY BURGERMEISTERDESIGN

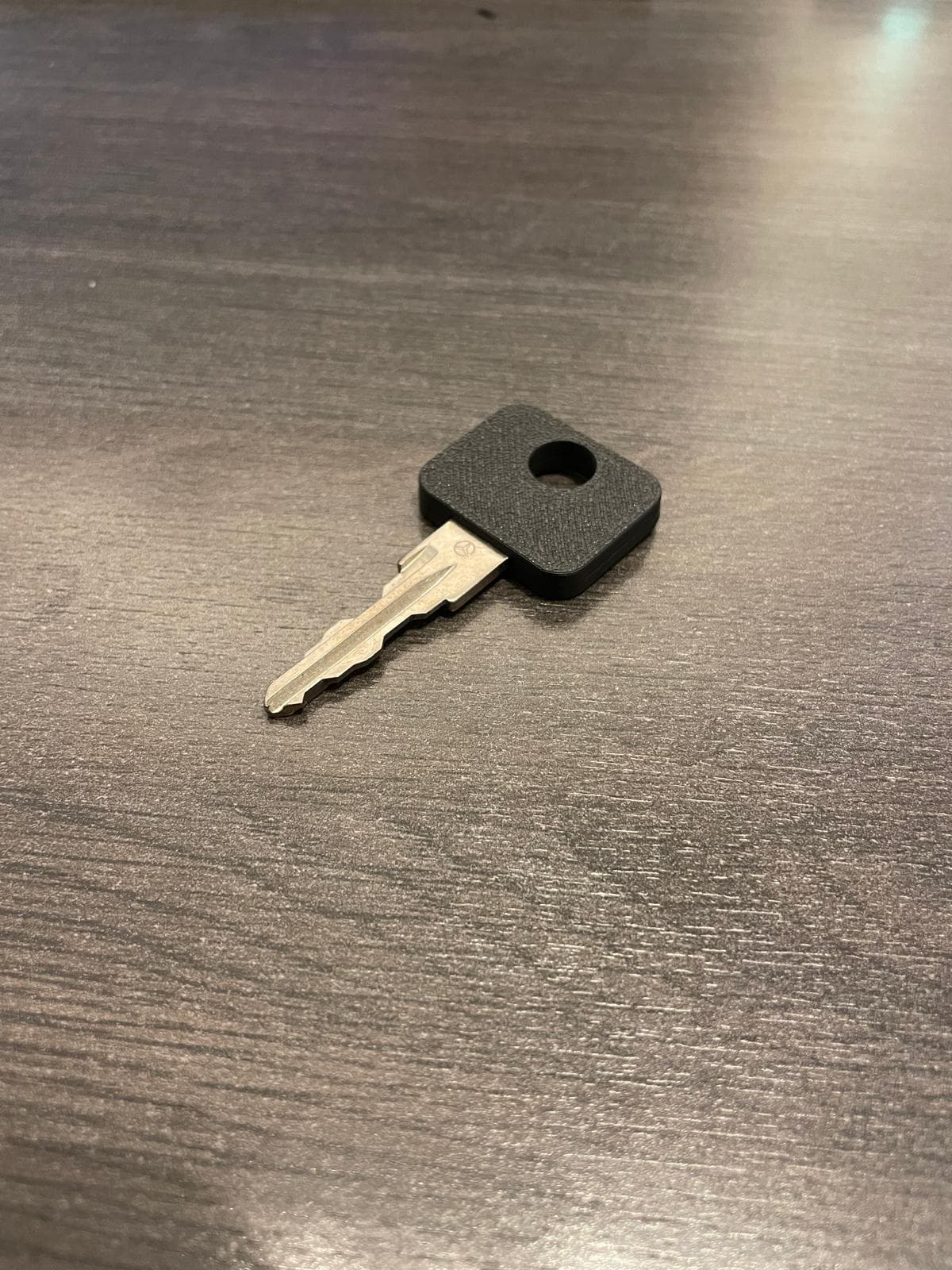

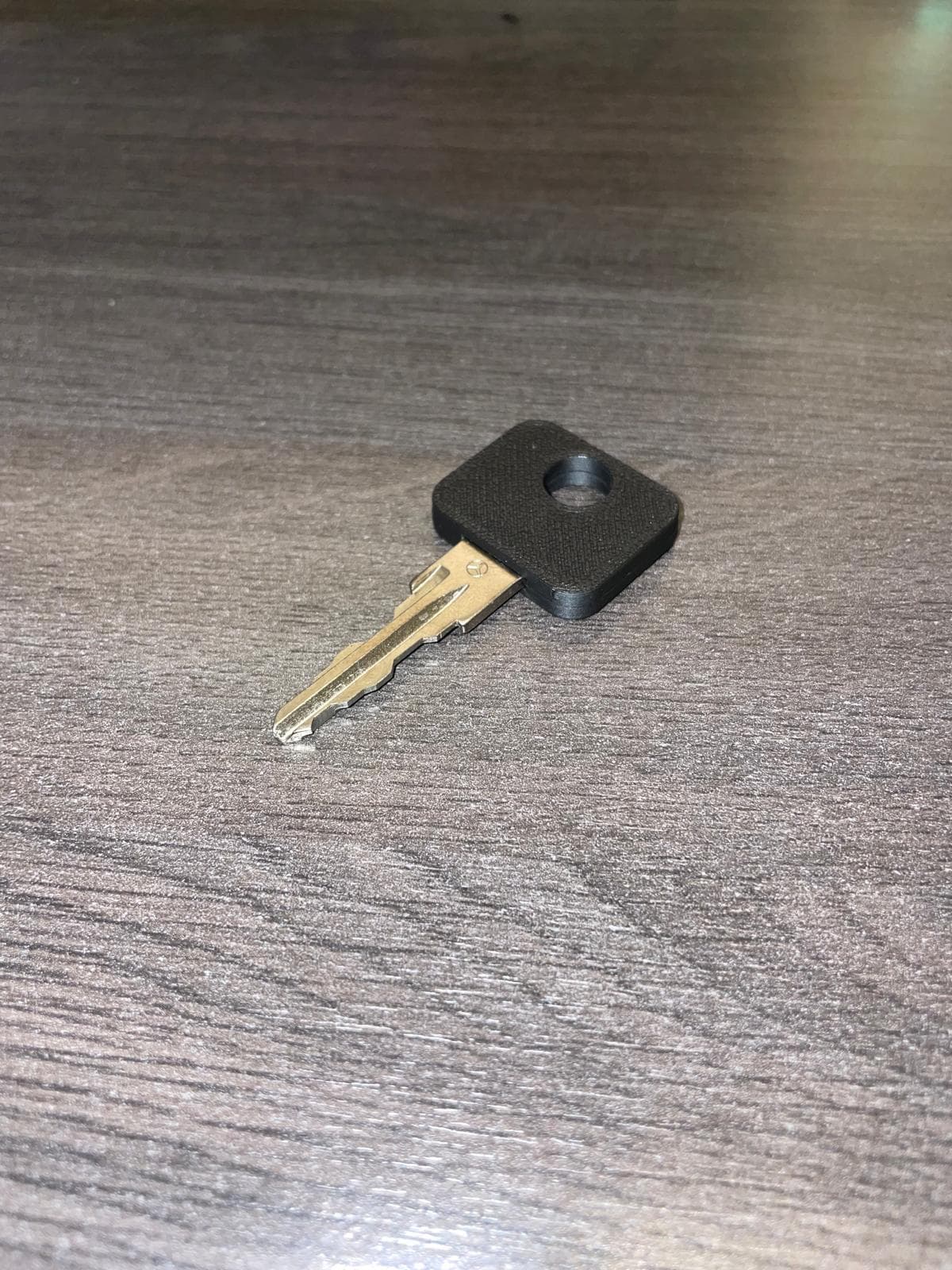

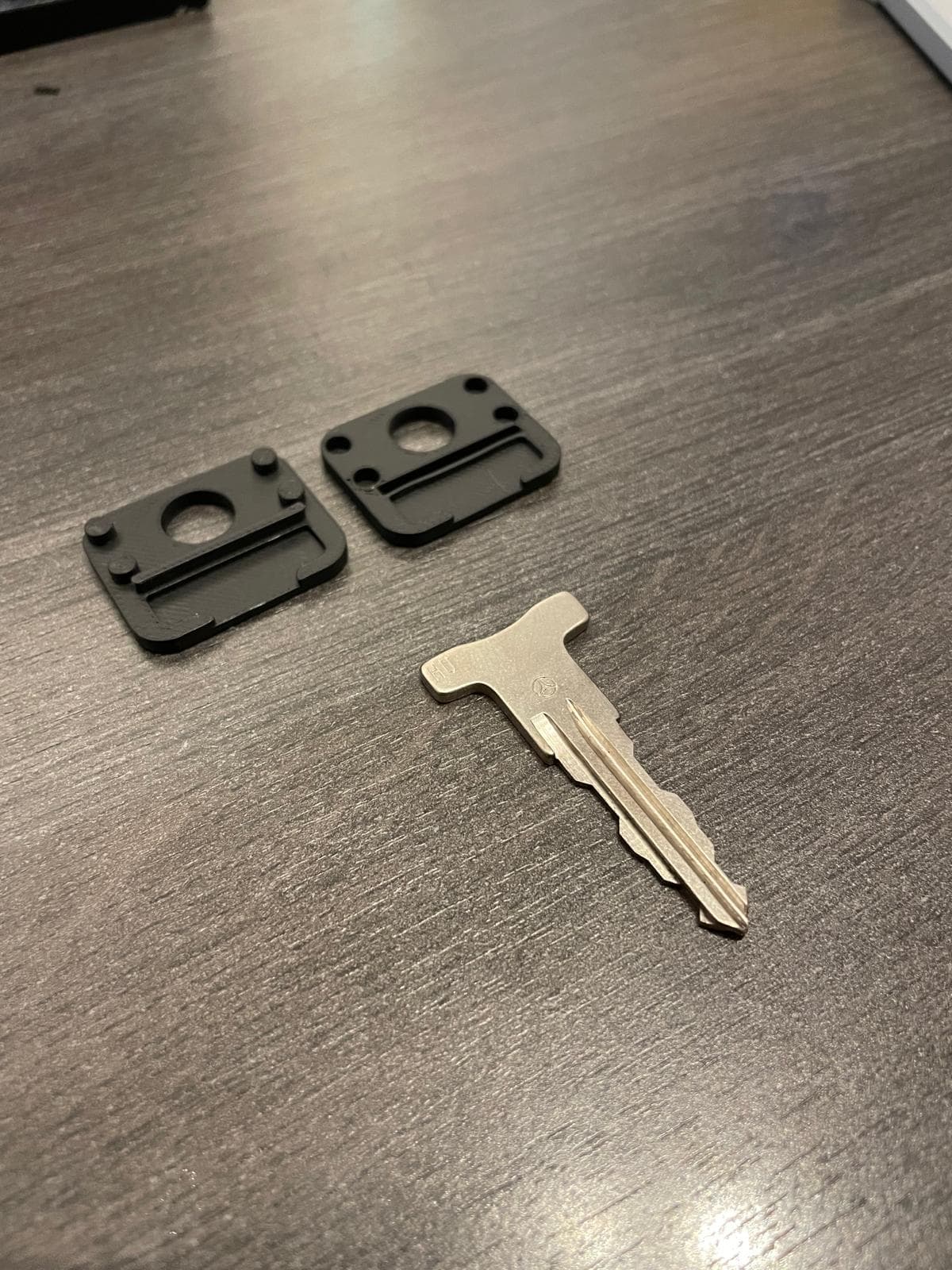

Two-piece replacement case for the handle portion of the original ignition key blade. The creator provides separate upper and lower shells and shows the physical case around a 123-series key. This does not reproduce or alter the metal key blade or lock coding. Verify the blade head dimensions, bond the shells securely with no adhesive on the blade cuts, and confirm the case cannot separate or obstruct full key removal.
