PART №1778

Inner Sunroof-Shade Side Guides

ABS · Nylon · PETG2 FILESCC-BYCabin trim, cargo & roof
SummaryREF 1778
PART
Inner Sunroof-Shade Side Guides
OEM
FITS
A-Class W169
PartREV 2026

Loading 3D viewer...

Ref 17782 STL filesPrints without supports
Field photographs
5 PLATES
Plate 1 of 5
PLATE 01 / 05No caption recorded
Files & dimensions
MAN-1778

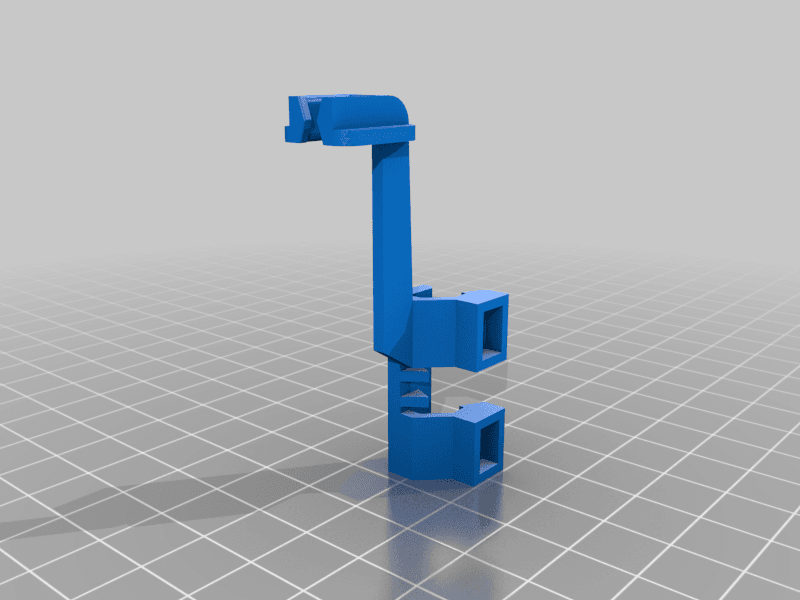

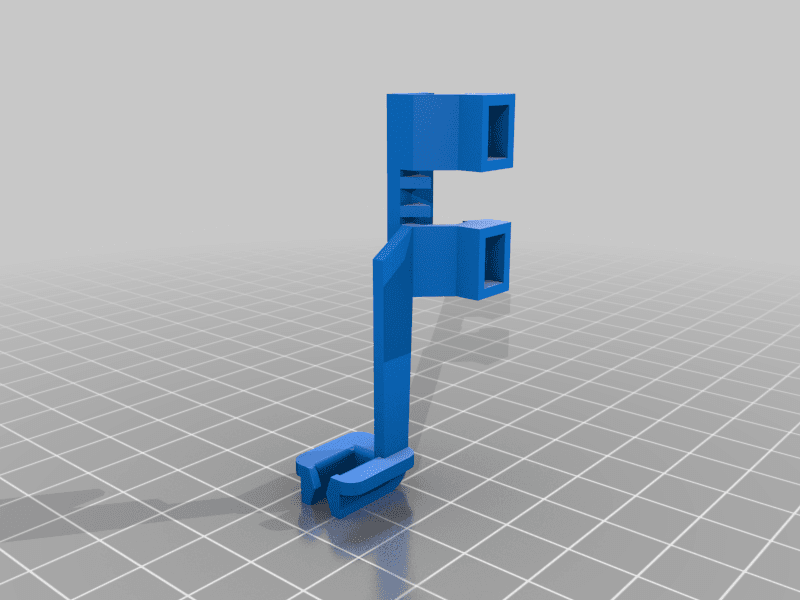

  • [01]C-Führung_Sonnenrollo_V2_links.stl.STL
  • [02]C-Führung_Sonnenrollo_V2_rechts.stl.STL
  • [03]Bounding box58.500 × 28.500 × 19.000 mm
  • [04]Volume2,494.527 mm³
Field notes
BY HENNING PETERSEN (BRUNODERUFF)

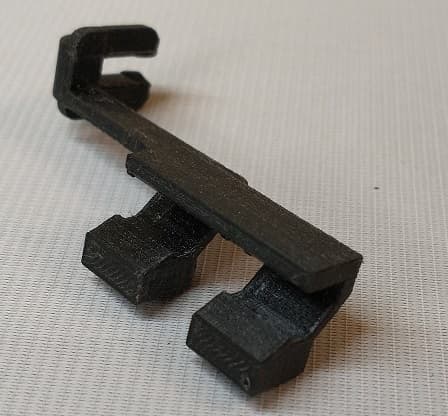

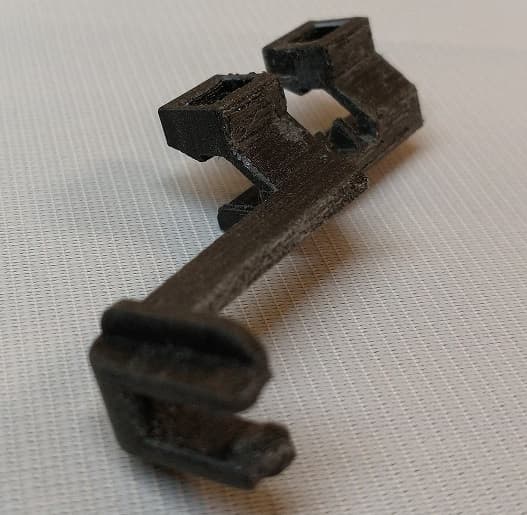

Left- and right-hand side guides for the inner shade of the factory lamella sunroof. The creator explicitly describes these as the second-version guides from a 2009 vehicle; do not treat them as universal for other roof systems, years or guide revisions. The files are separate side variants. Compare the original guide profile and orientation before printing, use a heat-resistant low-friction material, test shade travel gently by hand, and discontinue use if the guide binds, sheds debris or interferes with roof movement.
