Instrument-Panel Magnetic Phone Mount

ABS · Nylon · PETGMULTI-PART4 FILESCC-BY-NCDashboard & controls

SummaryREF 1842

PART: Instrument-Panel Magnetic Phone Mount
OEM: —
FITS: C-Class W205 / S205 / C205 / A205

Loading 3D viewer...

Ref 18424 STL filesPrints without supports

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Files & dimensions

MAN-1842

[01]Handyhalterung w205.stlHandyhalterung w205.stl.STL
[02]Handyhalterung w205_2.stlHandyhalterung w205_2.stl.STL
[03]Magnet-Kugel Adapter.stlMagnet-Kugel Adapter.stl.STL
[04]Mutter.stlMutter.stl.STL
[05]Bounding box337.996 × 45.000 × 32.500 mm
[06]Volume137,326.096 mm³

Field notes

BY DK-3D

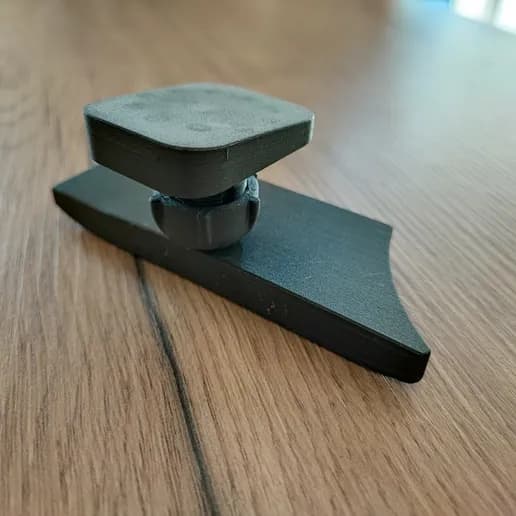

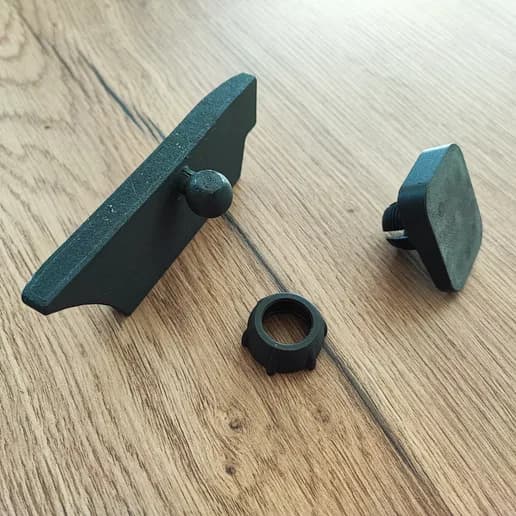

Three-part magnetic phone-mount system whose base clamps between the display and instrument cluster. The source specifies 6×4 mm and/or 10×3 mm magnet pockets and shows the physical components and installed fit. Confirm magnet polarity and secure encapsulation, use the correct nut and ball adapter, protect trim, and verify the phone cannot obscure the cluster, detach, or interfere with controls.
