PART №1834

Instrument-Panel Phone-Mount Bar

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYDashboard & controls
SummaryREF 1834
PART
Instrument-Panel Phone-Mount Bar
OEM
FITS
C-Class W205 / S205 / C205 / A205
PartREV 2026

Loading 3D viewer...

Ref 18342 STL filesPrints without supports
Field photographs
5 PLATES
Plate 1 of 5
PLATE 01 / 05No caption recorded
Files & dimensions
MAN-1834
  • [01]Mercedes_C_CLass_W205_Phone_Holder_LHD.stl.STL
  • [02]Mercedes_C_CLass_W205_Phone_Mount.stl.STL
  • [03]Bounding box328.000 × 84.000 × 72.000 mm
  • [04]Volume100,073.795 mm³
Field notes
BY MODGE MCDONALD (MODGE1981)

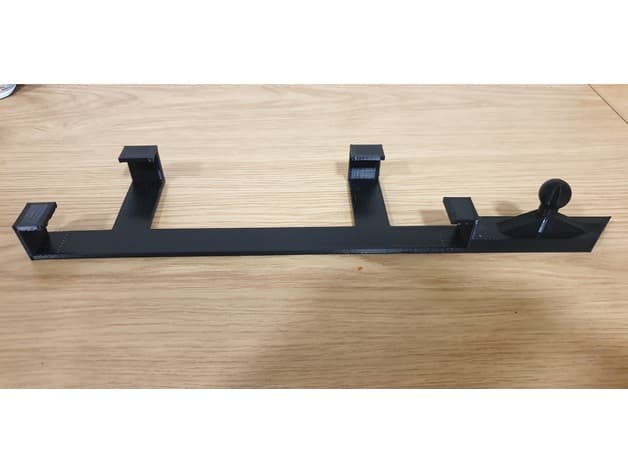

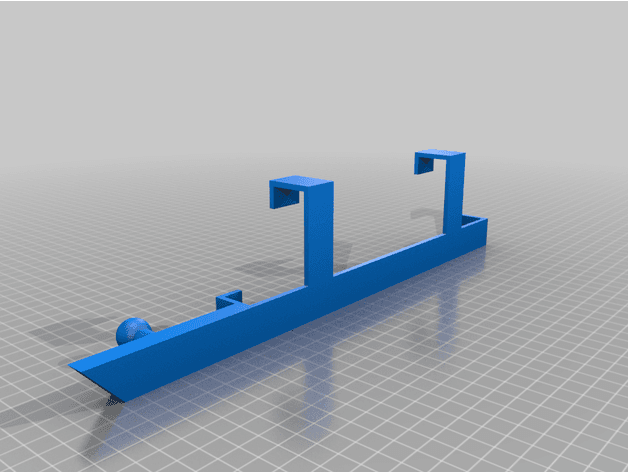

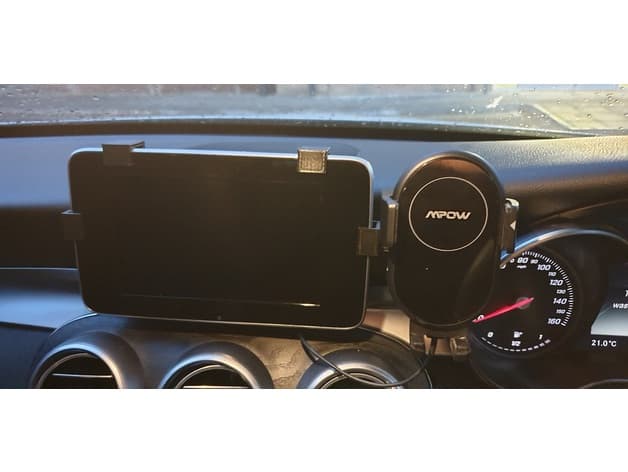

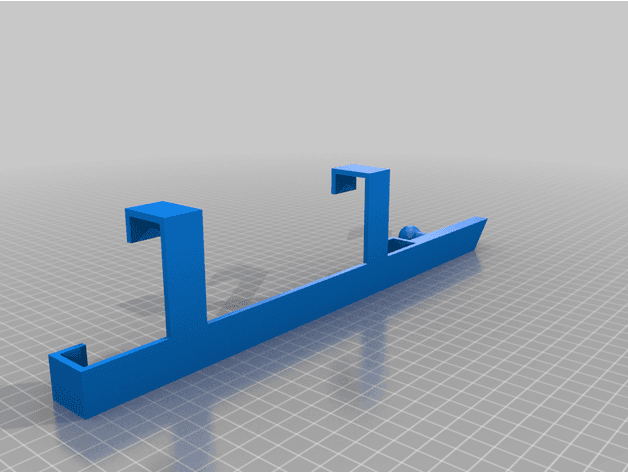

Screen-hook phone-mount bar with a 14 mm ball, designed around an MPOW wireless charger. The author supplies separate right-hand-drive and mirrored left-hand-drive files and shows both the bare part and installed phone. Bend only as required for installation behind the screen, verify the correct steering-side file, protect dashboard surfaces, and confirm the mount cannot obscure instruments, loosen, or contact controls.
