PART №1644

Interior Door-Panel Retaining Clip

ABS · Nylon · PETG1 FILECC-BYInterior doors & windows
SummaryREF 1644
PART
Interior Door-Panel Retaining Clip
OEM
FITS
G-Class W463
PartREV 2026

Loading 3D viewer...

Ref 16441 STL filePrints without supports
Field photographs
2 PLATES
Plate 1 of 2
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1644
  • [01]Clip.stl.STL
  • [02]Bounding box17.500 × 16.867 × 16.867 mm
  • [03]Volume397.819 mm³
Field notes
BY EBO LOMPEDO (EBOLOMPEDO)

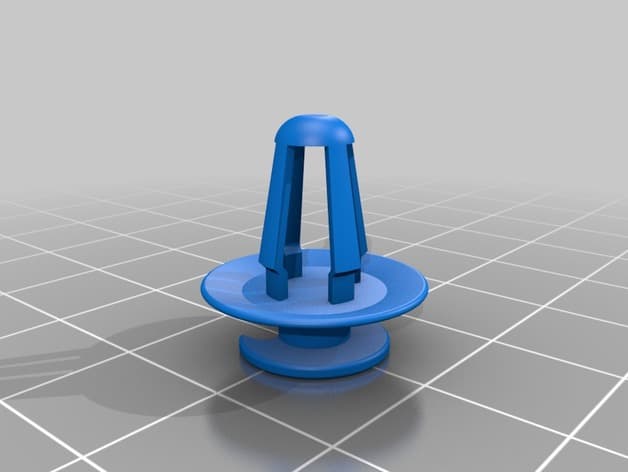

Replacement interior door-panel clip for 1990s vehicles. The source includes a physical image of the clip installed in the door-panel mounting point and a CAD render, but gives no material or print settings and no exact Mercedes child-component number. Match the original clip and panel hole, remove supports and sharp edges, press-fit without forcing brittle trim and confirm the panel is fully retained before driving.
