PART №1579

Jacking-Point Protective Plug

ABS · Nylon · PETG1 FILECC-BY-NCBody panels & exterior trim
SummaryREF 1579
PART
Jacking-Point Protective Plug
OEM
FITS
W123 Series W123 / S123 / C123
PartREV 2026

Loading 3D viewer...

Ref 15791 STL filePrints without supports
Field photographs
5 PLATES
Plate 1 of 5
PLATE 01 / 05No caption recorded
Files & dimensions
MAN-1579
  • [01]Jack_plug.stl.STL
  • [02]Bounding box36.000 × 36.000 × 25.000 mm
  • [03]Volume3,692.476 mm³
Field notes
BY LAYERS ENGINEERING (LIVIU_M2002)

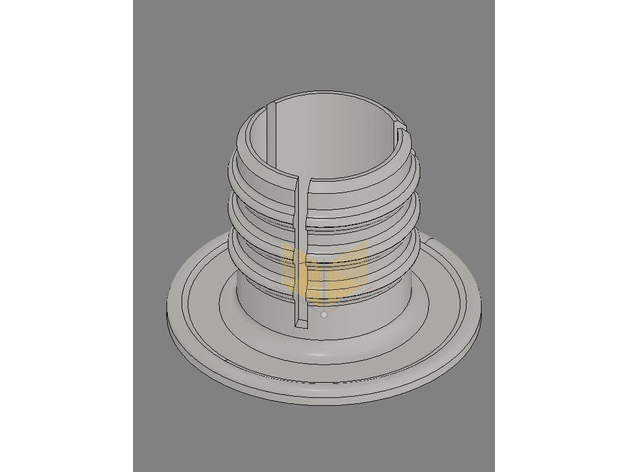

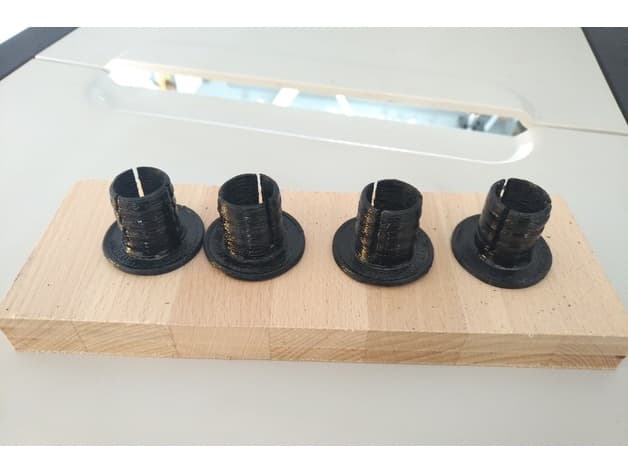

Protective body plug test-fitted in a 123-series jacking point. The creator printed it in ABS with three flex slots and advises rust protection inside the jacking tube before installation. This is a dust and appearance plug only: remove it before using the factory jack, never treat it as a lifting pad, and inspect the jacking point for corrosion before lifting. The source mentions reference number 2018990008, but no exact EPC child-component record was independently recovered, so no OEM number is assigned.
