PART №1570

Lamp Retaining-Nut Set

ABS · Nylon · PETGMULTI-PART2 FILESCC-BY-NC-SAExterior lighting, cameras & sensors

SummaryREF 1570

PART: Lamp Retaining-Nut Set
OEM: —
FITS: W123 Series W123 / S123 / C123

Loading 3D viewer...

Ref 15702 STL filesPrints without supports

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Files & dimensions

MAN-1570

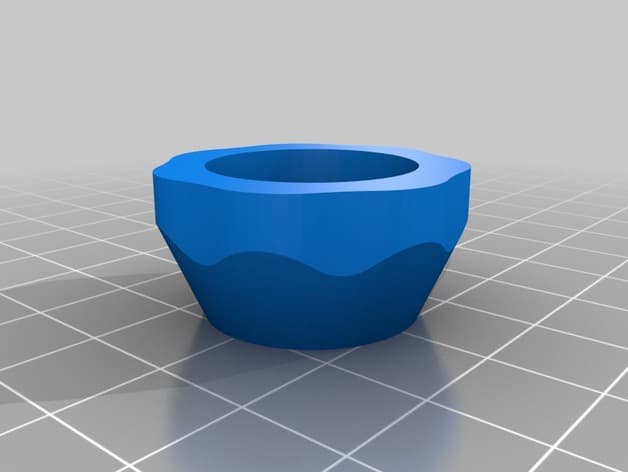

[01]W123_BIG.stlW123_BIG.stl.STL

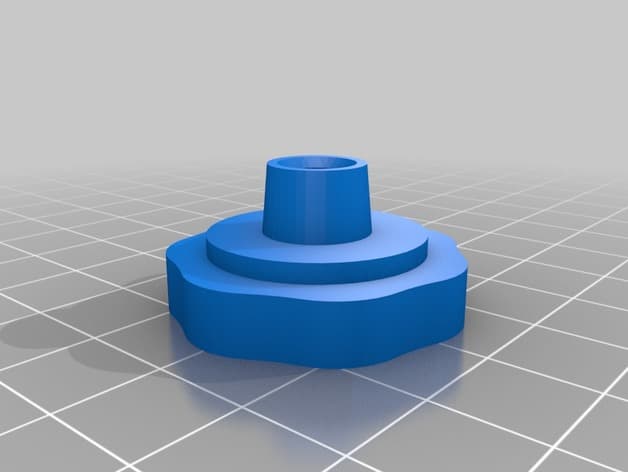

[02]W123_SMALL.stlW123_SMALL.stl.STL
[03]Bounding box61.153 × 30.207 × 15.000 mm
[04]Volume22,715.847 mm³

Field notes

BY LAYERS ENGINEERING (LIVIU_M2002)

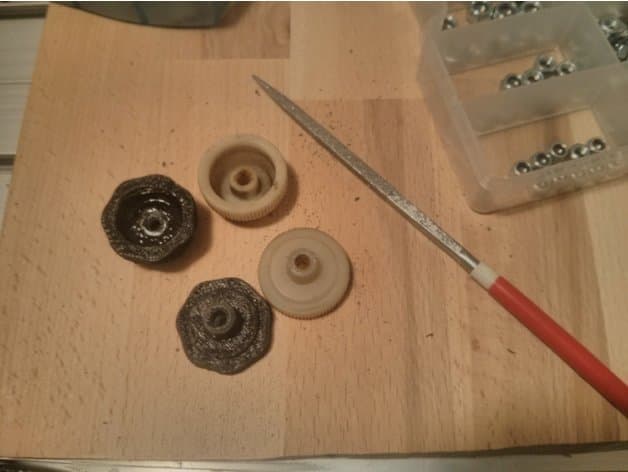

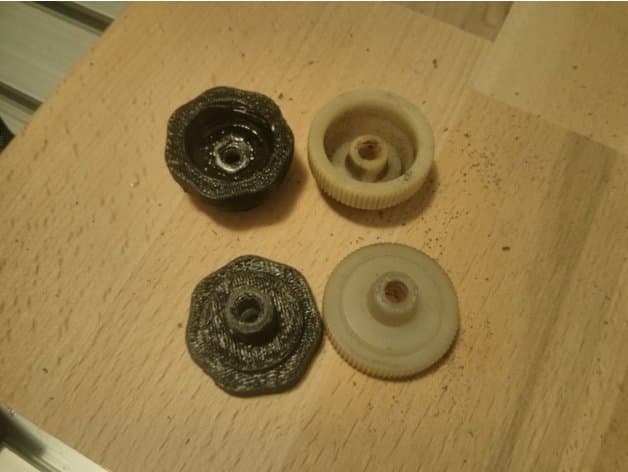

Two sizes of replacement plastic retaining nut copied from the headlamp, indicator and rear-lamp hardware on a US-market 123-series car. The source does not define every position, so compare the original nut, thread, diameter and lamp location before choosing a size. Use weather- and heat-resistant material, tighten only enough to retain the lamp and recheck lamp alignment and sealing.
