PART №1743

Luggage-Compartment Side-Panel Rosette Set

ABS · PETGMULTI-PART2 FILESCC-BY-NC-SACabin trim, cargo & roof

SummaryREF 1743

PART: Luggage-Compartment Side-Panel Rosette Set
OEM: —
FITS: E-Class W211 / S211

Loading 3D viewer...

Ref 17432 STL filesPrints without supports

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Files & dimensions

MAN-1743

[01]Left_side_panel_rosette_A2116940194.stlLeft_side_panel_rosette_A2116940194.stl.STL
[02]Right_side_panel_rosette_A2116940294.stlRight_side_panel_rosette_A2116940294.stl.STL
[03]Bounding box101.000 × 70.849 × 20.748 mm
[04]Volume14,117.967 mm³

Field notes

BY (FORGOTMYUSERNAME)

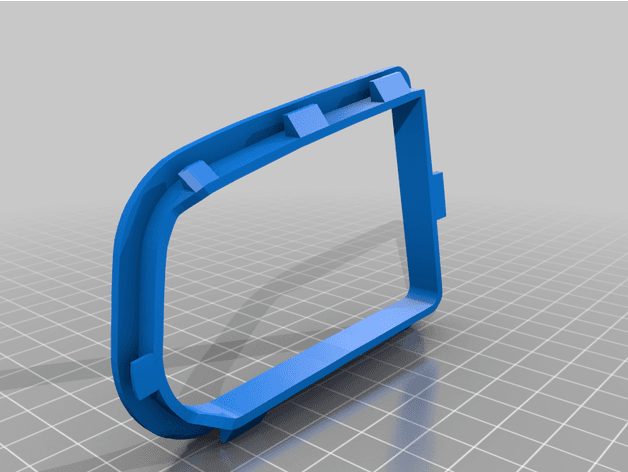

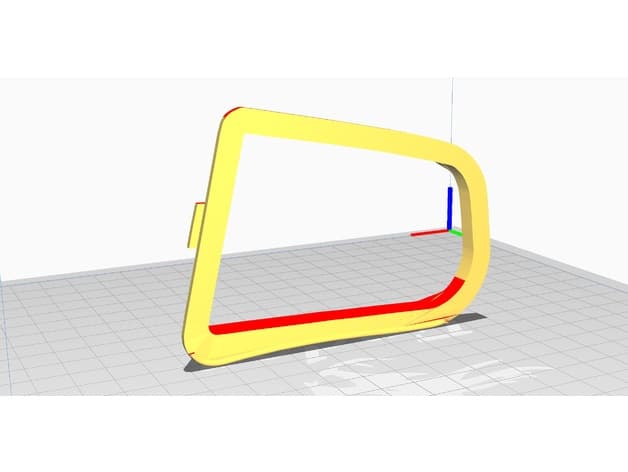

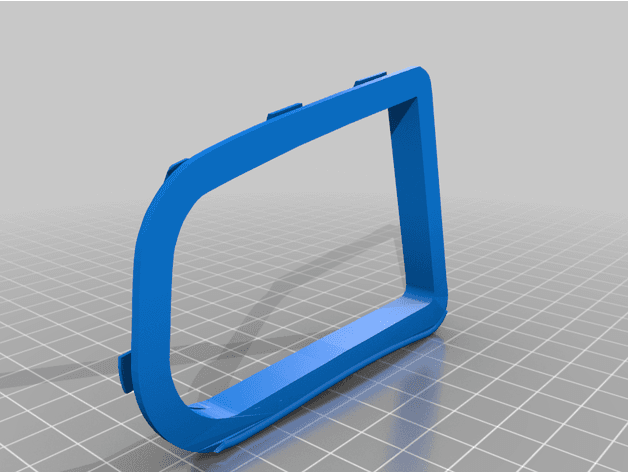

Left and right rosettes for the luggage-compartment side panels around the boot-lid hinge arms. The author reports a perfect fit but instructs users to make a small cut after printing so each rosette can be installed around its arm. Molded child numbers were not independently verified, so no OEM number is assigned.
