PART №1715
Luggage-Compartment Trim Clip Set
ABS · Nylon · PETGMULTI-PART3 FILESCC-BYCabin trim, cargo & roof
- PART
- Luggage-Compartment Trim Clip Set
- OEM
- —
- FITS
- C-Class W203 / S203 / CL203
Loading 3D viewer...
Ref 17153 STL filesPrints without supports
Field photographs
3 PLATES
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1715- [01]W203_Clip_Kofferraum.STLW203_Clip_Kofferraum.STL.STL

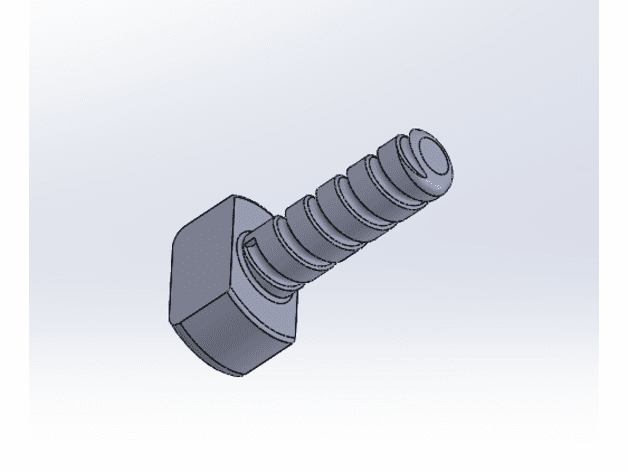

- [02]w203_Clip_Ziehschraube.STLw203_Clip_Ziehschraube.STL.STL

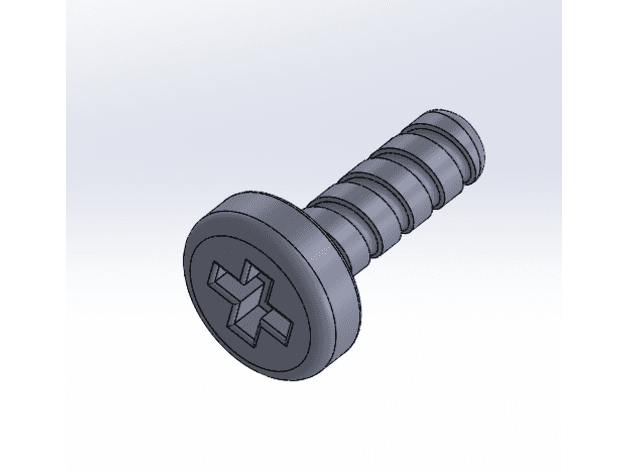

- [03]w203_Clip__Schraube.STLw203_Clip__Schraube.STL.STL
- [04]Bounding box24.498 × 15.000 × 12.000 mm
- [05]Volume688.446 mm³
Field notes
BY NICO HANS (MEMBEROFD)Three-part retaining system for luggage-compartment trim: a 5 mm-hole clip plus either a screw-style or pull-style centre pin. The creator printed the parts upright in PETG with a brim and prefers the pull-pin version for removal. Compare the body holes and original trim thickness, use tough cabin-heat-resistant material, deburr the pins and verify every panel is retained without damaging wiring or sharp body edges.
