PART №1740

Nine-Inch Stereo Installation Frame

ABS · PETGMULTI-PART3 FILESCC-BYConsole & storage

SummaryREF 1740

PART: Nine-Inch Stereo Installation Frame
OEM: —
FITS: E-Class W211 / S211

Loading 3D viewer...

Ref 17403 STL filesPrints without supports

Field photographs

3 PLATES

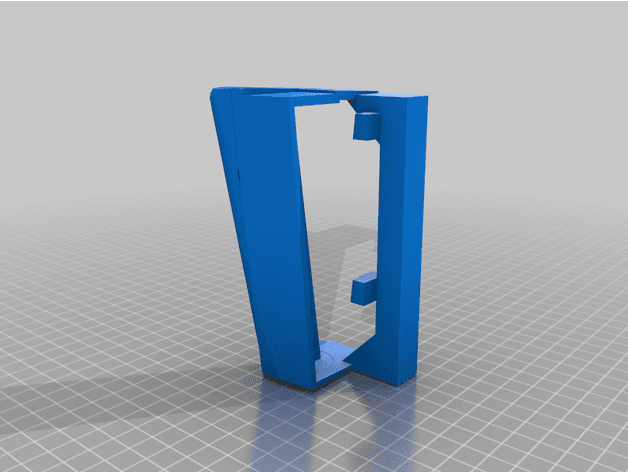

PLATE 01 / 03No caption recorded

Files & dimensions

MAN-1740

[01]stereo_-_connector.stlstereo_-_connector.stl.STL
[02]stereo_-_left.stlstereo_-_left.stl.STL
[03]stereo_-_right.stlstereo_-_right.stl.STL
[04]Bounding box149.000 × 138.000 × 72.217 mm
[05]Volume153,185.892 mm³

Field notes

BY JOSEPH JOSHY (JOSEPHRJD)

Three-piece installation frame for a nine-inch Android head unit. The author describes it as functional but imperfect and requiring finishing; join all three parts as shown by the source and check secure retention before driving.

View original source ↗
