PART №1584
Number-Plate Lamp Frame
ABS · Nylon · PETG1 FILECC-BYExterior lighting, cameras & sensors
- PART
- Number-Plate Lamp Frame
- OEM
- —
- FITS
- W123 Series W123 / S123 / C123
Loading 3D viewer...
Ref 15841 STL filePrints without supports
Field photographs
2 PLATES

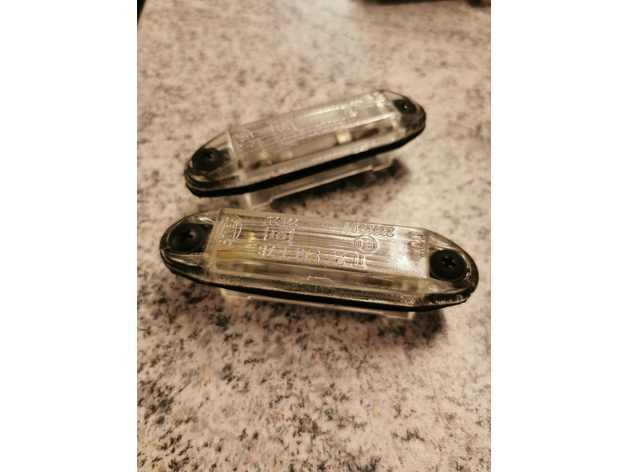

PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1584- [01]W123_Kennzeichen_Beleuchtung.stlW123_Kennzeichen_Beleuchtung.stl.STL
- [02]Bounding box101.500 × 25.000 × 2.000 mm
- [03]Volume1,847.498 mm³
Field notes
BY BUNDES-METAL-MINISTER (BUNDES-METAL-MINISTER)Replacement frame for a broken rear number-plate lamp, also usable as a cutting guide for a new seal. The creator states fitment across 123-series variants. Use UV- and heat-resistant material, preserve the original lens, bulb holder and wiring, install an appropriate gasket and confirm lamp visibility, weather sealing and wire clearance.
