PART №1648

Power-Seat Switch Panel Retainer Set

ABS · Nylon · PETGMULTI-PART4 FILESCC-BYSeats & restraints
SummaryREF 1648
PART
Power-Seat Switch Panel Retainer Set
OEM
FITS
S-Class W140 / C140
PartREV 2026

Loading 3D viewer...

Ref 16484 STL filesPrints without supports
Field photographs
6 PLATES
Plate 1 of 6
PLATE 01 / 06No caption recorded
Files & dimensions
MAN-1648

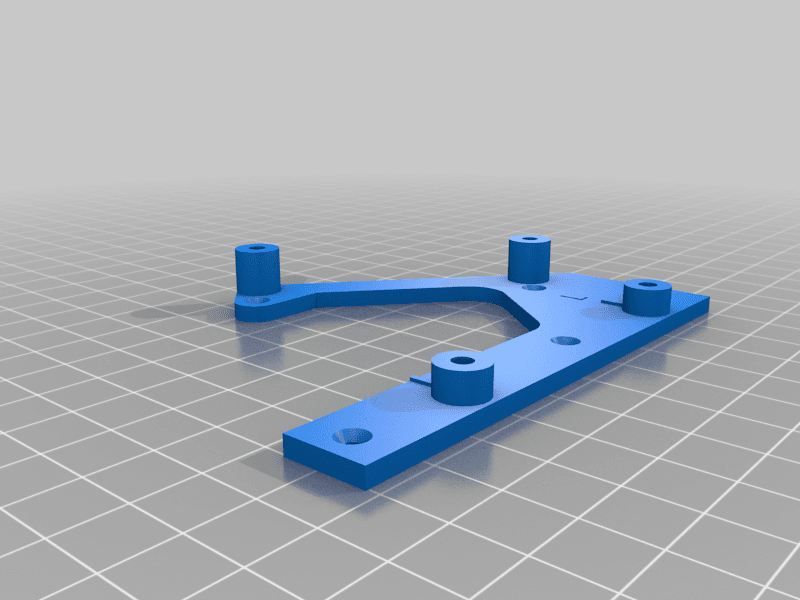

  • [01]panel_base_left.stl.STL

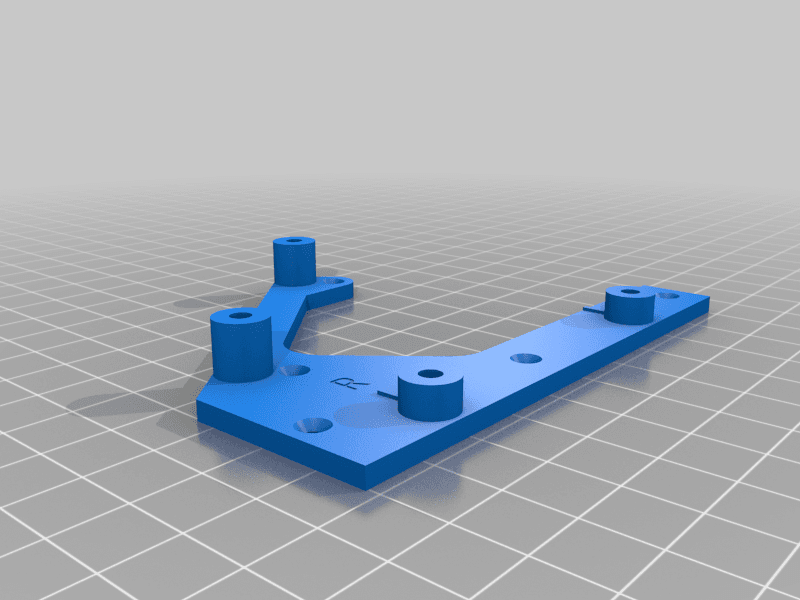

  • [02]panel_base_right.stl.STL

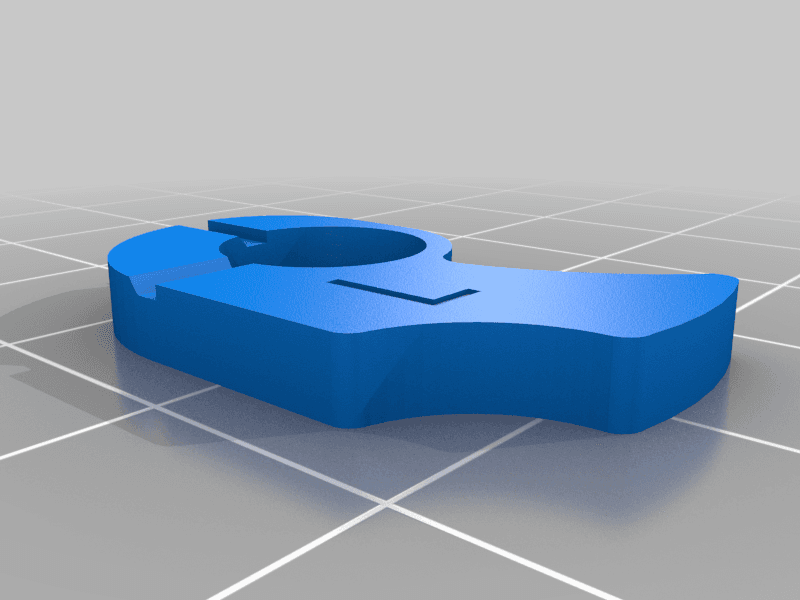

  • [03]panel_clip_left.stl.STL

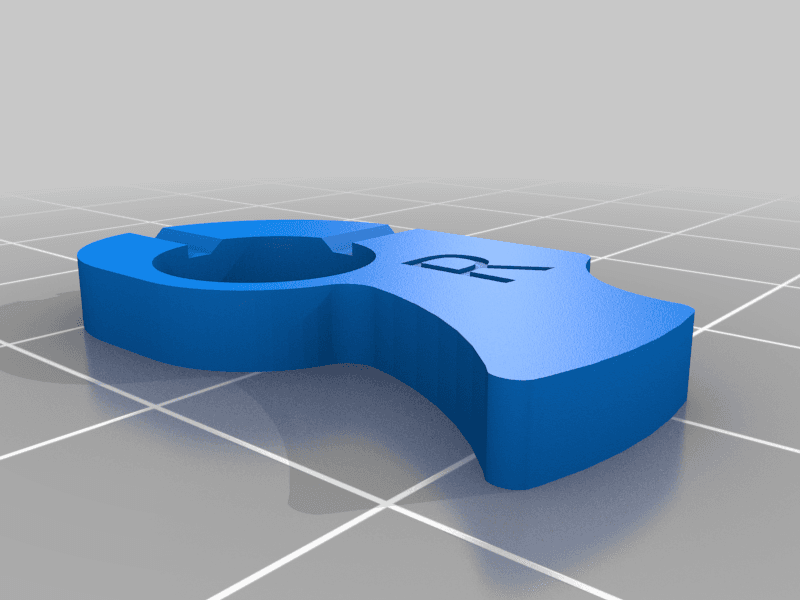

  • [04]panel_clip_right.stl.STL
  • [05]Bounding box180.500 × 100.000 × 12.000 mm
  • [06]Volume20,516.652 mm³
Field notes
BY BENJAMIN SANGTASH (MADMAN604)

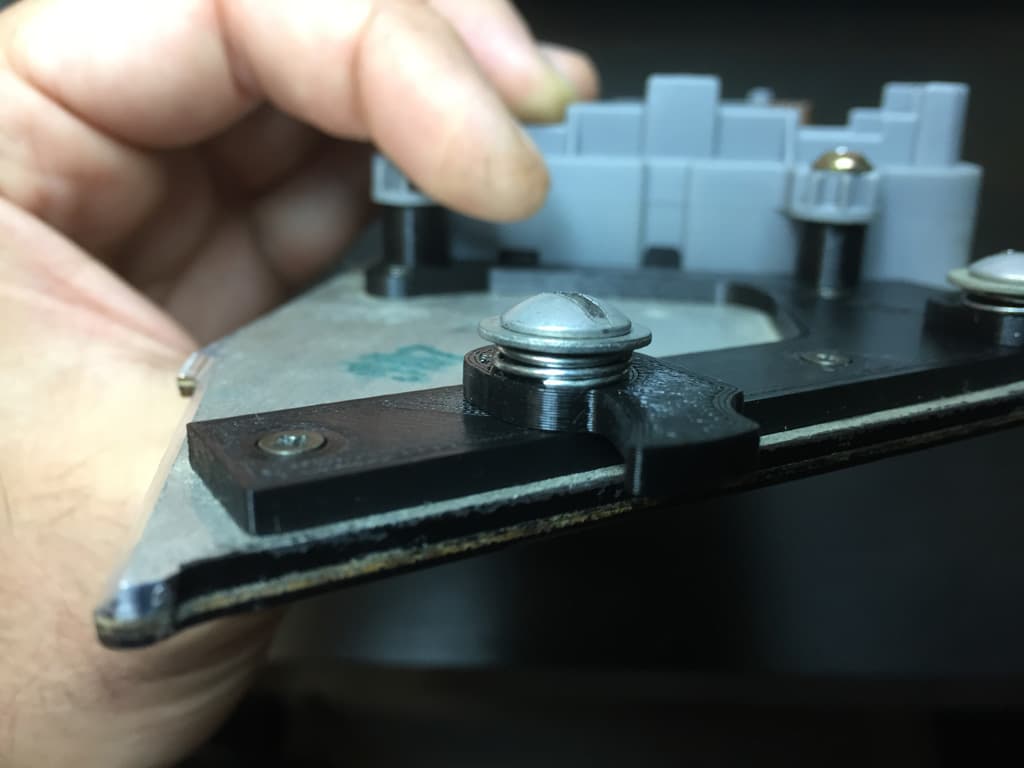

Four-piece left/right replacement retainer set for the power-seat switch panels, explicitly designed as a direct replacement for a 1990s S420. The source photographs show the physical panel assemblies and installed retainers. Independent mesh inspection found three of the four preserved STLs non-watertight, so repair and validate the sliced geometry before printing. Compare side and switch-panel version before use, print in a tough cabin-heat-resistant material, retain the original fasteners, and verify that the panel is secure without restricting any seat control or trapping wiring.
