PART №1745
Rear-Bumper Support Bracket
REPLACES OEMA2118851314
ABS · Nylon1 FILECC-BYBumpers, grilles & guards
- PART
- Rear-Bumper Support Bracket
- OEM
- A2118851314
- FITS
- E-Class W211 / S211
Loading 3D viewer...
Ref 17451 STL filePrints without supports

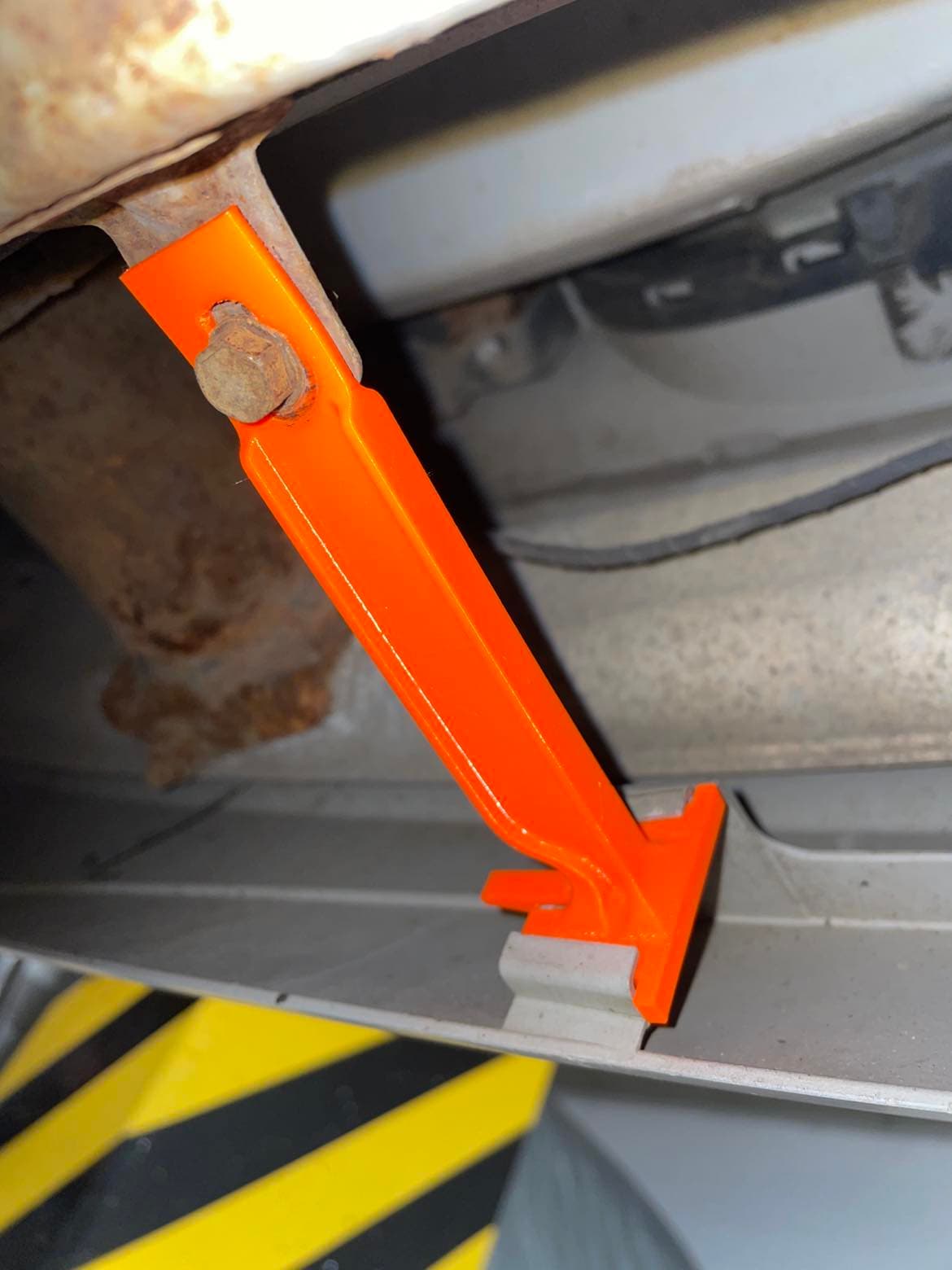

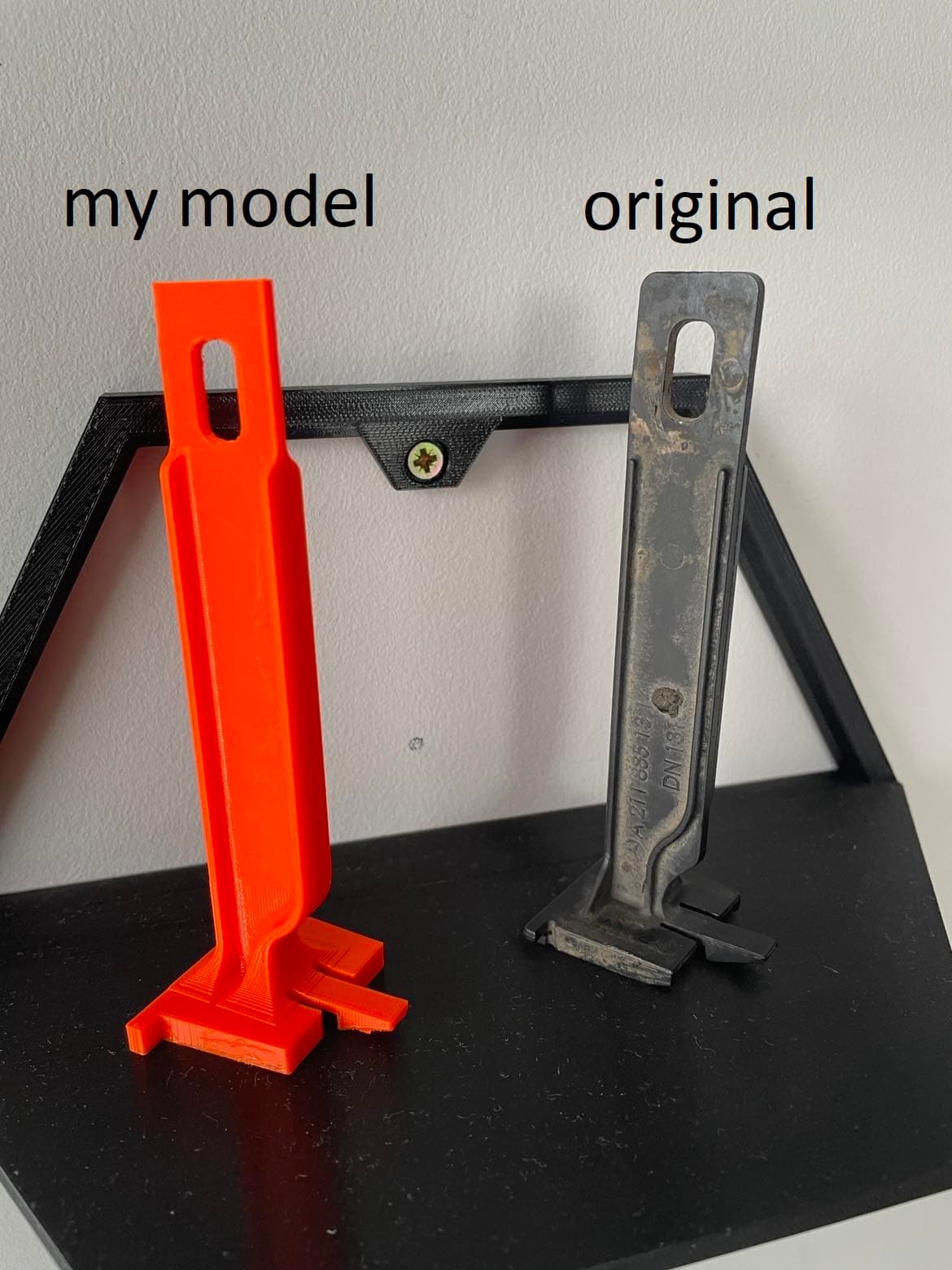

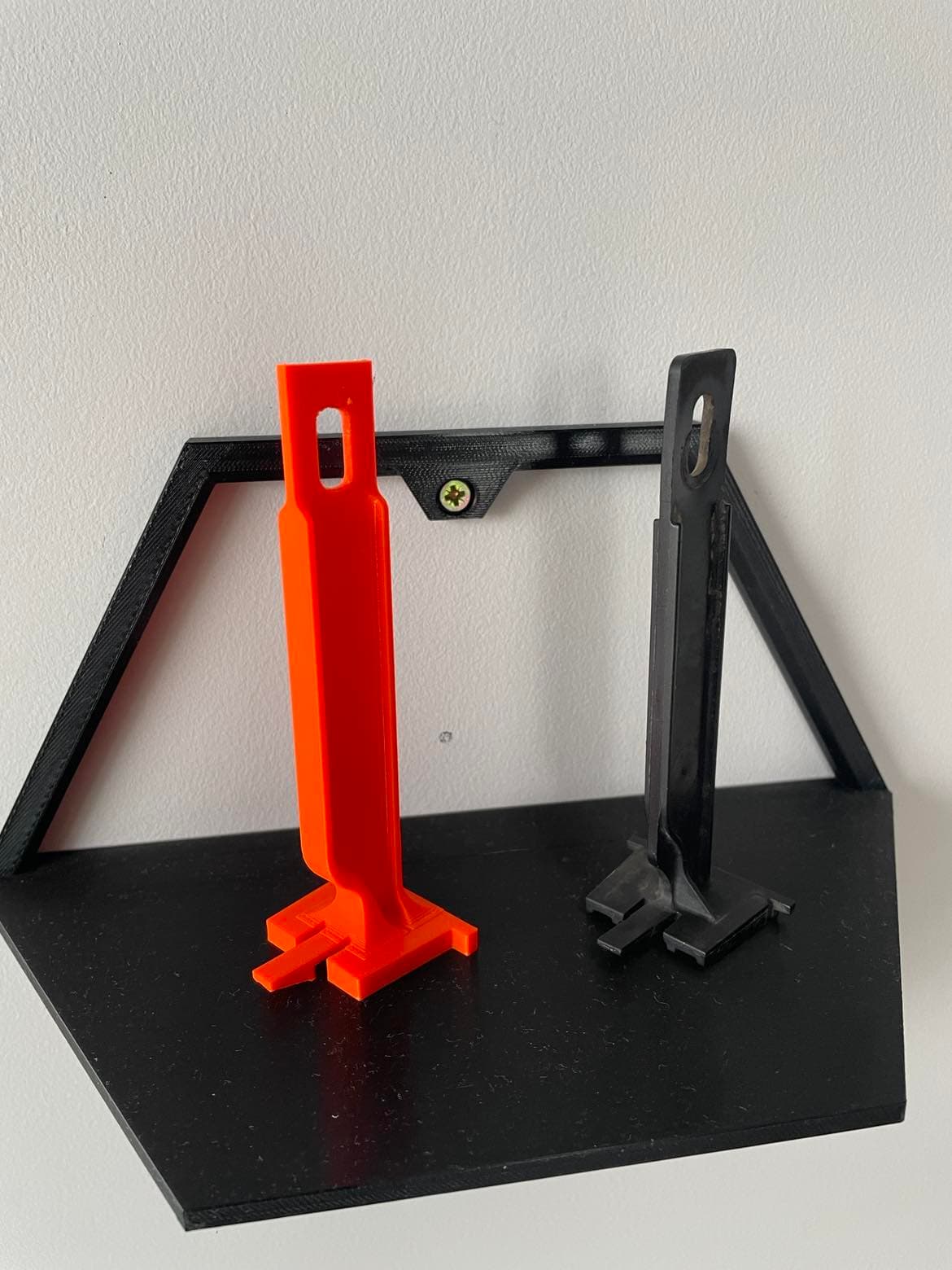

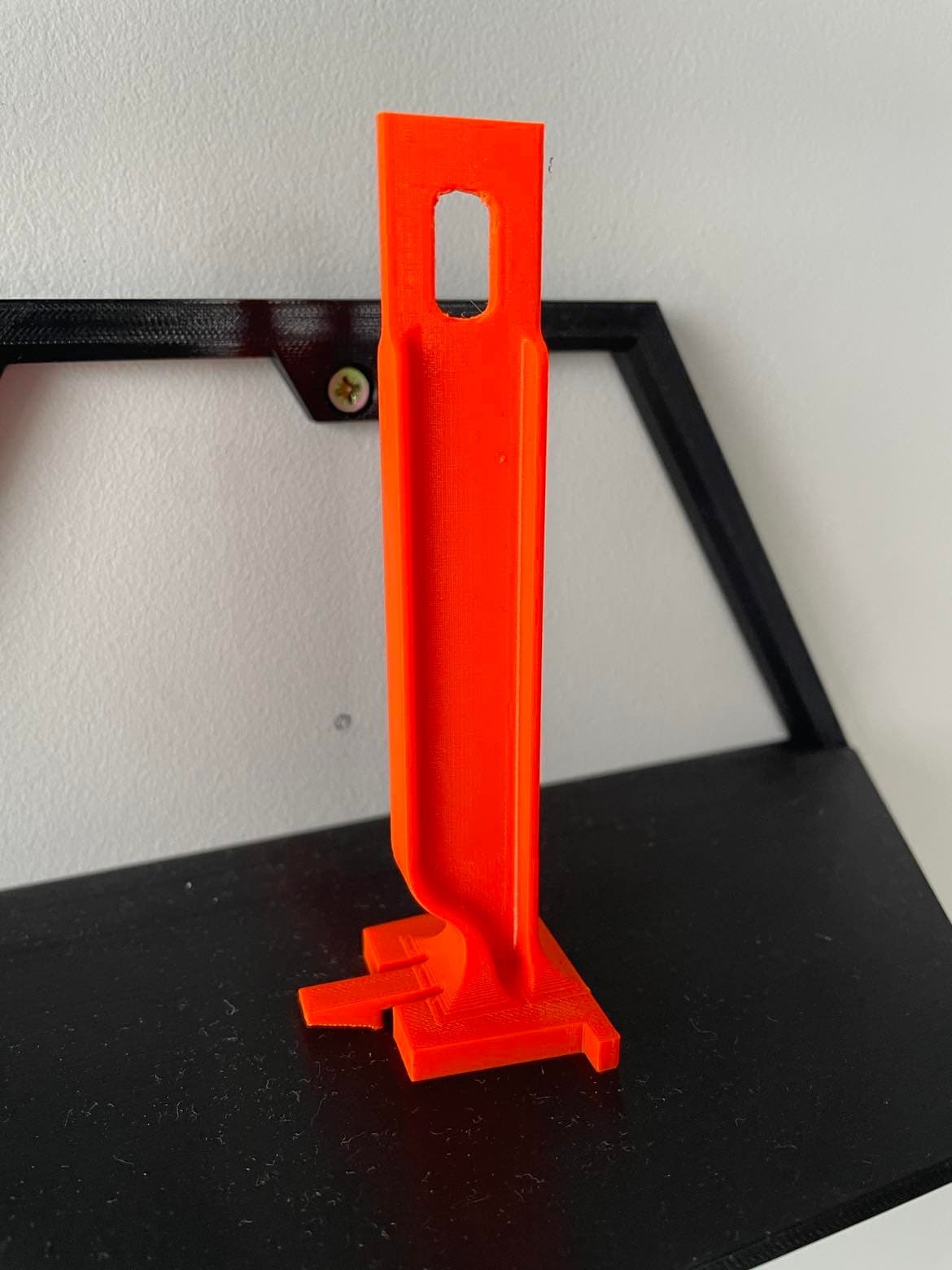

Field photographs
5 PLATES
PLATE 01 / 05No caption recorded
Files & dimensions
MAN-1745- [01]mercedes_zderzak.stlmercedes_zderzak.stl.STL
- [02]Bounding box119.600 × 42.400 × 40.000 mm
- [03]Volume13,004.178 mm³
Field notes
BY SZPADYLReplacement rear-bumper support bracket corresponding to the exact child number identified by the creator. Print upright with high infill in ABS or polycarbonate-class material, use support only at the latch, and remove the modeled sacrificial support from the screw hole after printing.
