PART №1738

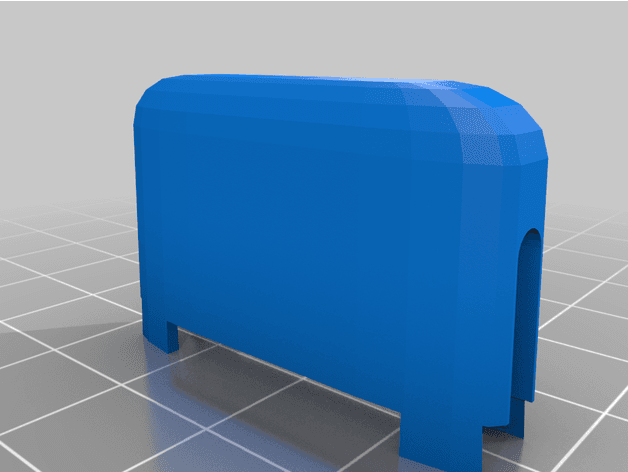

Rear Center-Console Air-Vent Clip

ABS · PETG1 FILECC-BYCabin trim, cargo & roof

SummaryREF 1738

PART: Rear Center-Console Air-Vent Clip
OEM: —
FITS: E-Class W211 / S211

Loading 3D viewer...

Ref 17381 STL filePrints without supports

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Files & dimensions

MAN-1738

[01]Center_console_ac_clips.stlCenter_console_ac_clips.stl.STL
[02]Bounding box35.398 × 22.997 × 8.396 mm
[03]Volume2,726.156 mm³

Field notes

BY JOSEPH JOSHY (JOSEPHRJD)

Replacement tab for the rear center-console air vent. The author states that it fits this vent position only and that other air-vent locations were not tested; surface finishing and paint may be needed.

View original source ↗
