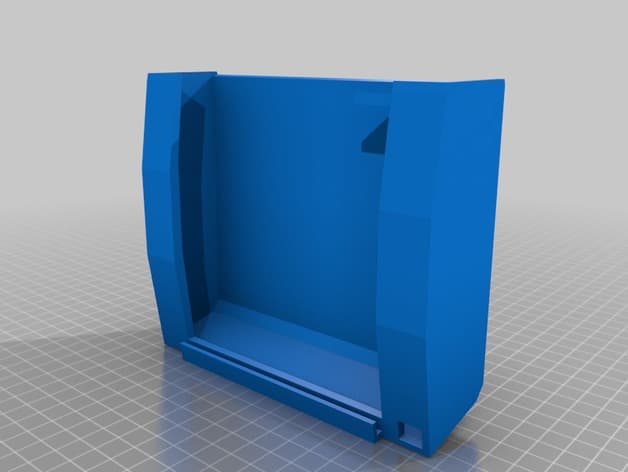

Rear-Console USB Phone Tray

ABS · Nylon · PETG1 FILECC-BY-NCConsole & storage
SummaryREF 1661
PART
Rear-Console USB Phone Tray
OEM
FITS
E-Class W210 / S210
PartREV 2026

Loading 3D viewer...

Ref 16611 STL filePrints without supports
Field photographs
2 PLATES
Plate 1 of 2
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1661
  • [01]W210_Handybox_Mittelkonsole_hinten.stl.STL
  • [02]Bounding box150.000 × 128.898 × 45.130 mm
  • [03]Volume123,232.962 mm³
Field notes
BY INGO JANDA (INGOJ)

Phone tray with an accessory USB charging socket for the rear centre-console cover position. The creator states 210-series use, 3M VHB or Tesa ACXplus adhesive mounting, and supplies the original-cover comparison plus the physical tray; no installed follow-up image is present. Use cabin-heat-resistant insulating material, a fused automotive-grade USB module and strain relief, preserve rear-console and seat travel, and verify adhesion and wiring clearance before use.
