PART №1841

Rear Dash-Camera Headliner Mount

ABS · NylonMULTI-PART2 FILESCC-BY-NCExterior lighting, cameras & sensors

SummaryREF 1841

PART: Rear Dash-Camera Headliner Mount
OEM: —
FITS: C-Class W205 / S205 / C205 / A205

Loading 3D viewer...

Ref 18412 STL filesPrints without supports

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Files & dimensions

MAN-1841

[01]vantrue_reardashcam_s205_mount_v3.3mfvantrue_reardashcam_s205_mount_v3.3mf.STL
[02]vantrue_reardashcam_s205_mount_v3.stlvantrue_reardashcam_s205_mount_v3.stl.STL
[03]Bounding box138.515 × 54.000 × 34.571 mm
[04]Volume53,072.004 mm³

Field notes

BY MOMMEL

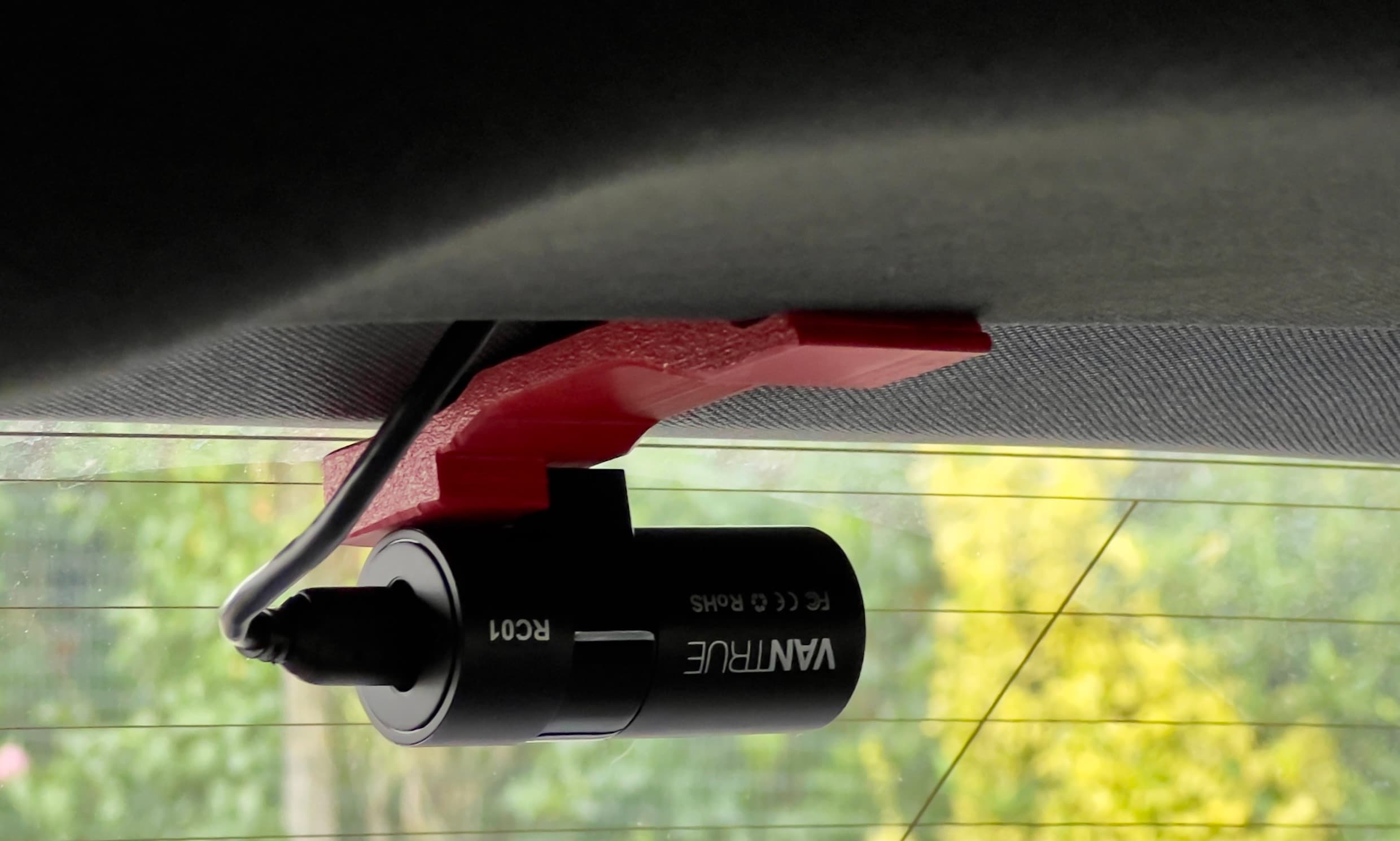

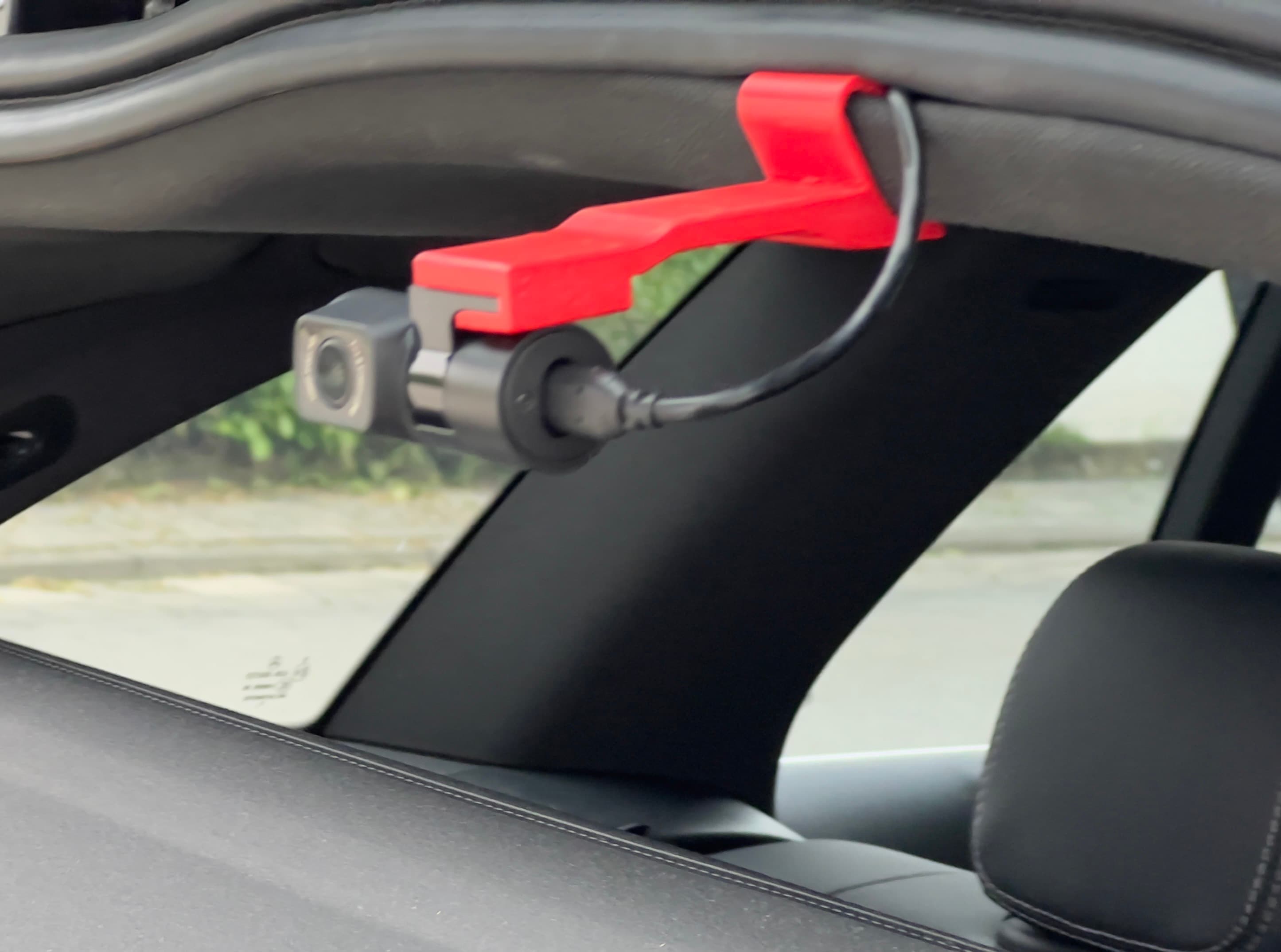

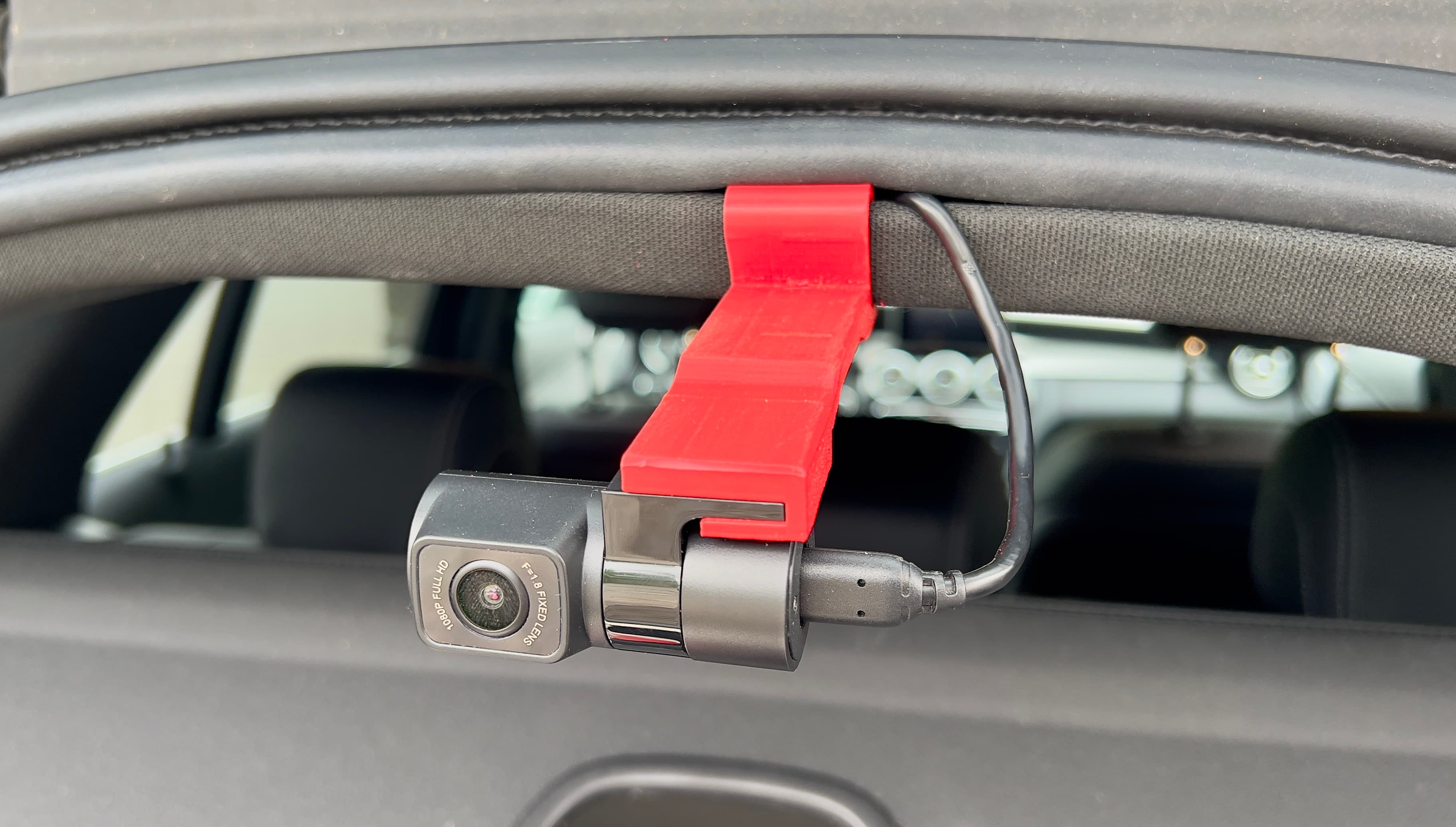

Clip-on rear-camera mount developed for the estate headliner and a Vantrue N4/N5 RC-01 rear camera. It clamps between the headliner and roof sheet without screws or holes and is shown installed clear of the tailgate. Fitment is limited to the estate body. Protect the headliner, keep the camera and cable clear of airbags, visibility and tailgate travel, and verify the mount cannot detach.
