PART №1749

Rear-Door Sunshade Pull Clip

ABS · PETG1 FILECC-BY-NCCabin trim, cargo & roof

SummaryREF 1749

PART: Rear-Door Sunshade Pull Clip
OEM: —
FITS: E-Class W211 / S211

Loading 3D viewer...

Ref 17491 STL filePrints without supports

Field photographs

4 PLATES

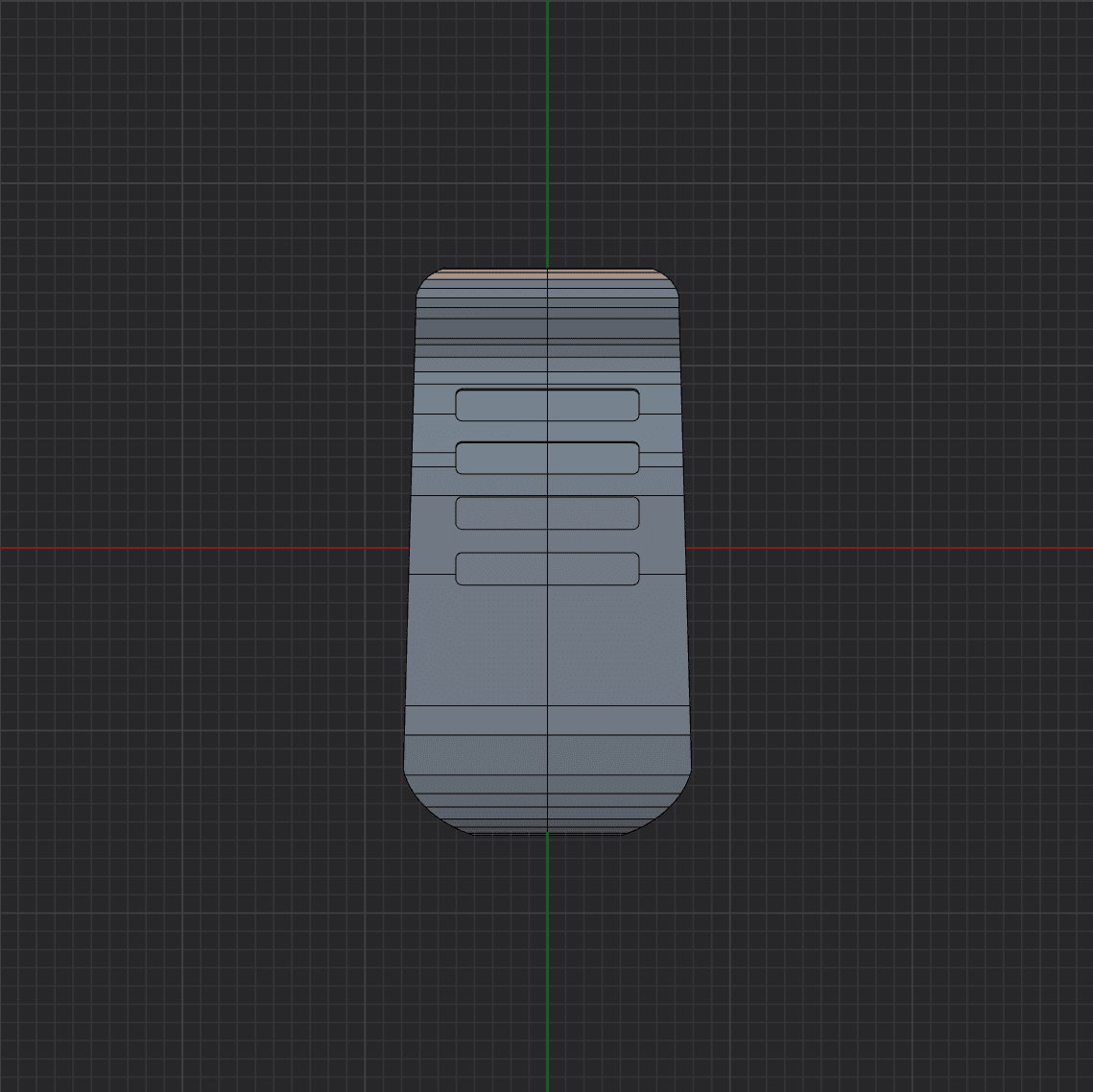

PLATE 01 / 04No caption recorded

Files & dimensions

MAN-1749

[01]Mercedes Benz W211 sunshade clip v3.stlMercedes Benz W211 sunshade clip v3.stl.STL
[02]Bounding box31.112 × 15.795 × 7.600 mm
[03]Volume1,268.106 mm³

Field notes

BY FLATBLACK722

Replacement pull clip for the factory rear side-window sunshade. The creator modeled it from the factory design, reports direct fit without modification, and recommends ABS or PETG with 0.2 mm layers and 100% infill for cabin heat resistance.

View original source ↗
