PART №1857

Rear ISOFIX Anchor Trim Cover

REPLACES OEMA2139209602

ABS · PETG1 FILECC-BY-NC-SASeats & restraints

SummaryREF 1857

PART: Rear ISOFIX Anchor Trim Cover
OEM: A2139209602
FITS: E-Class W213 / S213 / C238 / A238

Loading 3D viewer...

Ref 18571 STL filePrints without supports

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Files & dimensions

MAN-1857

[01]Isofix W213 v2.stlIsofix W213 v2.stl.STL
[02]Bounding box53.601 × 44.288 × 39.114 mm
[03]Volume8,605.997 mm³

Field notes

BY ROBIN_PE

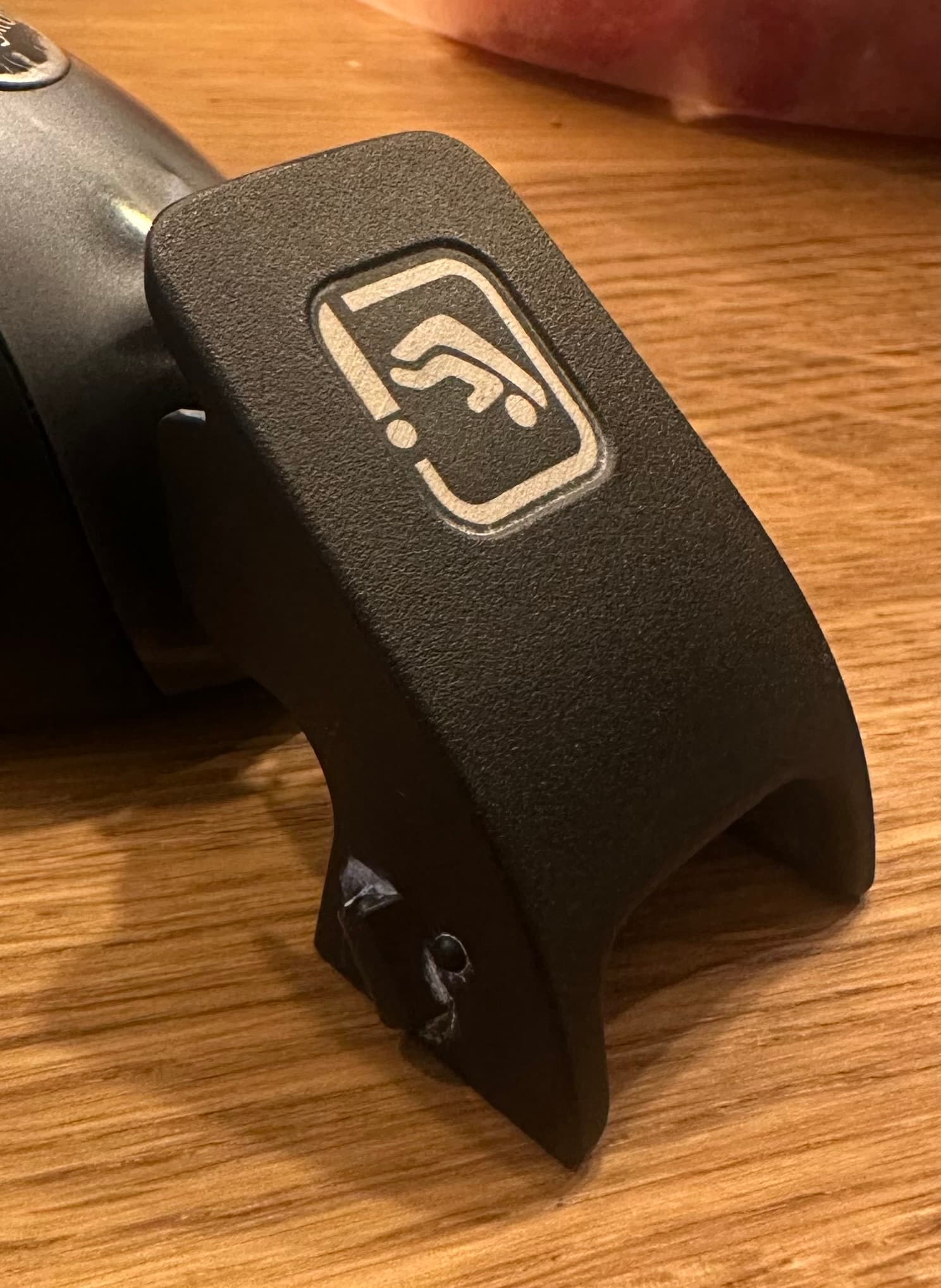

Working replacement trim plug for the rear-seat ISOFIX anchor opening, derived by the creator from a 3D scan of the factory cover. The creator states that the scan is not perfect; compare the upholstery opening and verify secure seating. This is only a removable trim cap: it must not obstruct, modify or carry load from the ISOFIX anchor, and it should be removed before attaching a child restraint.

View original source ↗
