PART №1828

Rear-Lamp Fastener Removal Tool

PETG1 FILECC-BY-SARemoval tools
SummaryREF 1828
PART
Rear-Lamp Fastener Removal Tool
OEM
FITS
A-Class W176
PartREV 2026

Loading 3D viewer...

Ref 18281 STL filePrints without supports
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1828
  • [01]MB W176 Heckleuchte Werkzeug.stl.STL
  • [02]Bounding box16.000 × 15.000 × 15.000 mm
  • [03]Volume1,866.421 mm³
Field notes
BY FEILER

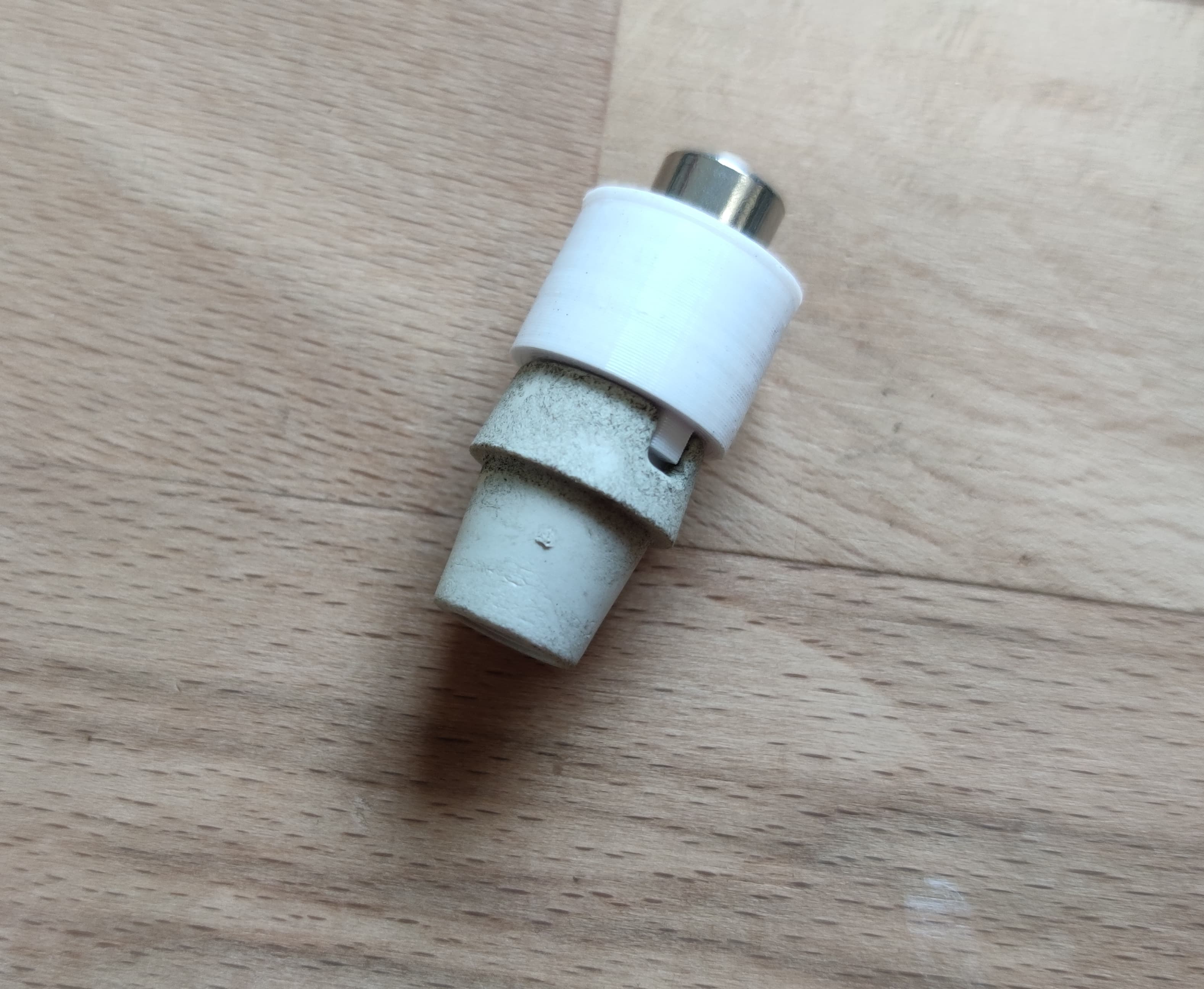

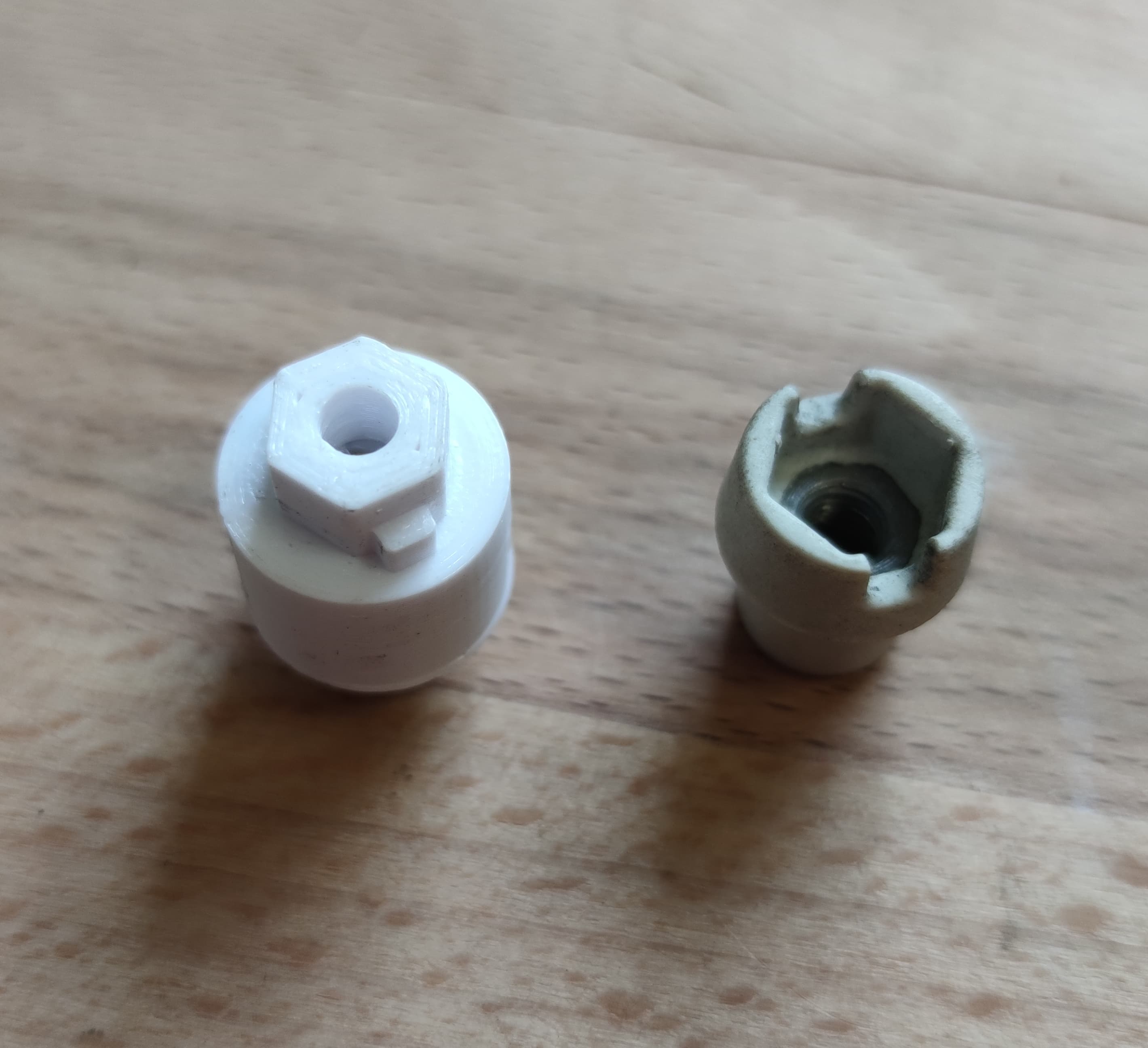

Small service adapter for more easily loosening and tightening the rear-lamp retaining fastener during bulb replacement. The creator specifies PETG plus an M5 heat-set insert, an M5×6 socket-head screw, and a DIN 9021 5.3×15 washer, and source photos show the assembled tool on the fastener. Use it only as a hand tool; do not overtighten the lamp fastener, and inspect the printed body and insert before each use.
