PART №1770

Rear Number-Plate Mounting Dowel

REPLACES OEMA1697420181

TPU2 FILESCC-BY-NC-SAExterior lighting, cameras & sensors

SummaryREF 1770

PART: Rear Number-Plate Mounting Dowel
OEM: A1697420181
FITS: Vito / Viano / V-Class W639

Loading 3D viewer...

Ref 17702 STL filesPrints without supports

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Files & dimensions

MAN-1770

[01]w639-numberplate-clip.3mfw639-numberplate-clip.3mf.STL
[02]w639-numberplate-clip.stlw639-numberplate-clip.stl.STL
[03]Bounding box24.823 × 12.000 × 7.000 mm
[04]Volume718.702 mm³

Field notes

BY MOWERK

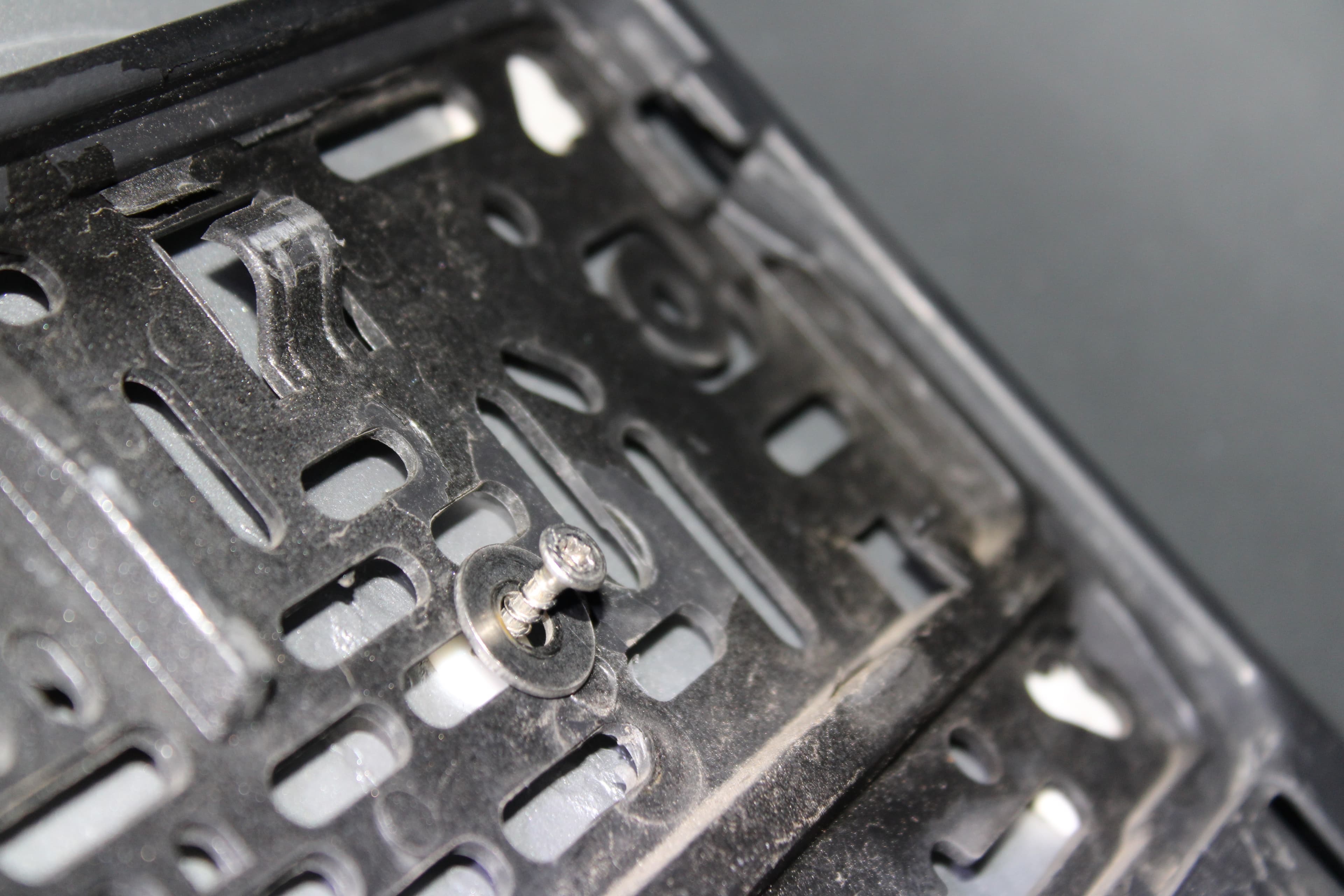

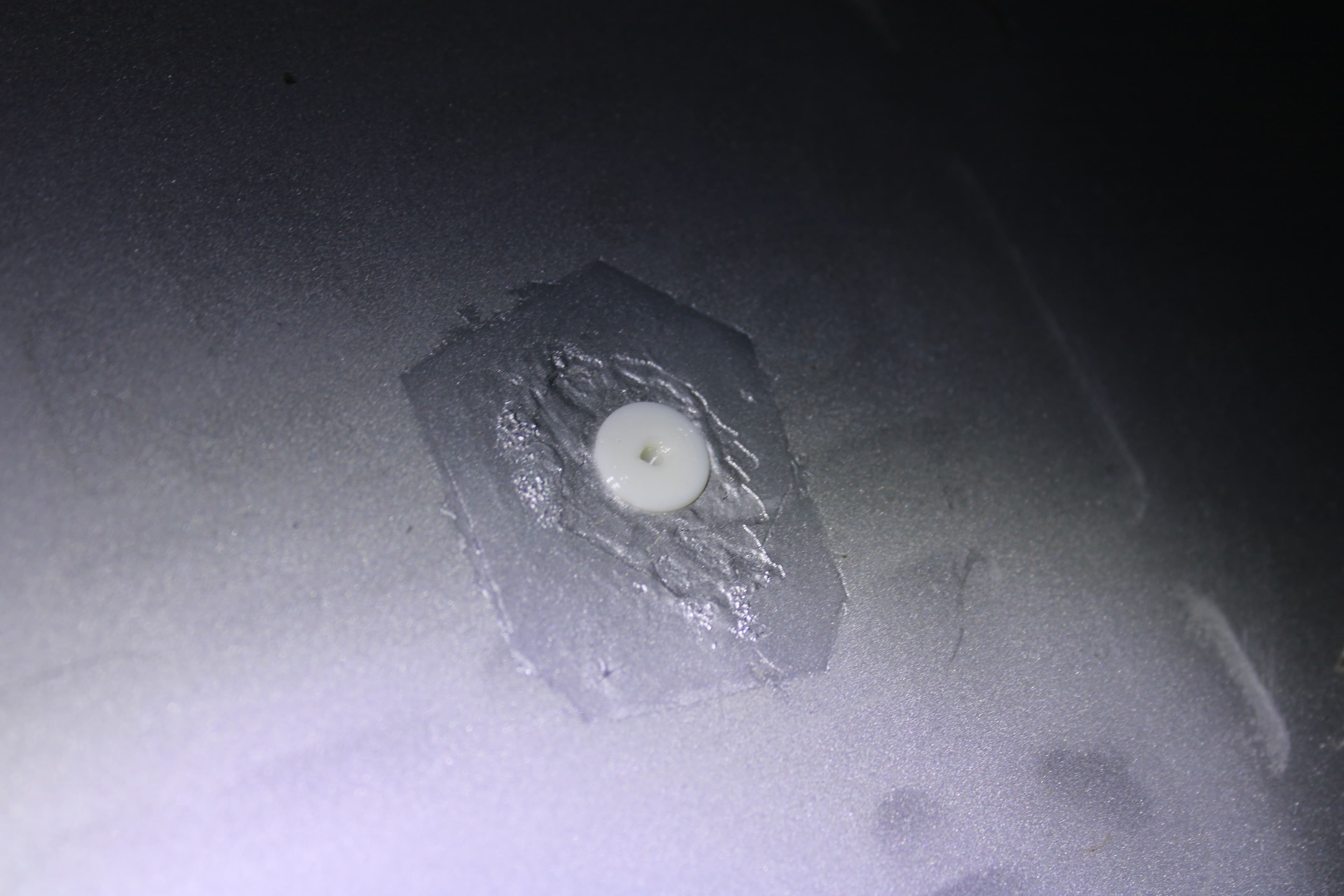

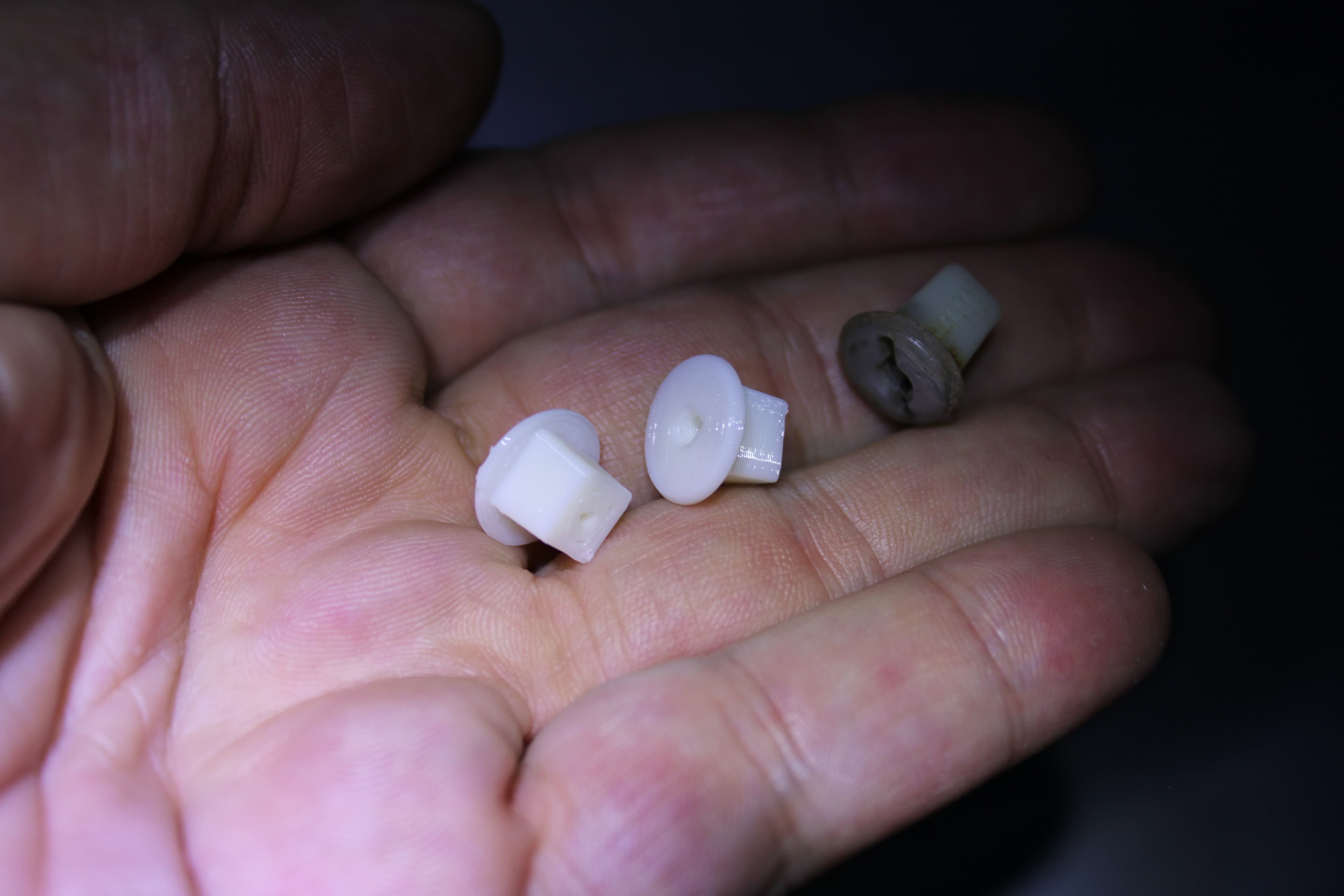

Flexible expansion dowel for the rear number-plate mounting holes, designed so scaling can compensate for enlarged corroded openings. Source photographs show the loose child and installed location. Use weather-resistant TPU, assess and repair corrosion separately, scale conservatively, use compatible screws, and confirm the plate is secure without distorting the tailgate skin.

View original source ↗
