PART №1766
Rear-Wiper Shaft Rubber Gasket
REPLACES OEMA0109971881
TPU3 FILESCC-BY-NC-SAWipers & washers
- PART
- Rear-Wiper Shaft Rubber Gasket
- OEM
- A0109971881
- FITS
- Vito / Viano / V-Class W639
Loading 3D viewer...
Ref 17663 STL filesPrints without supports

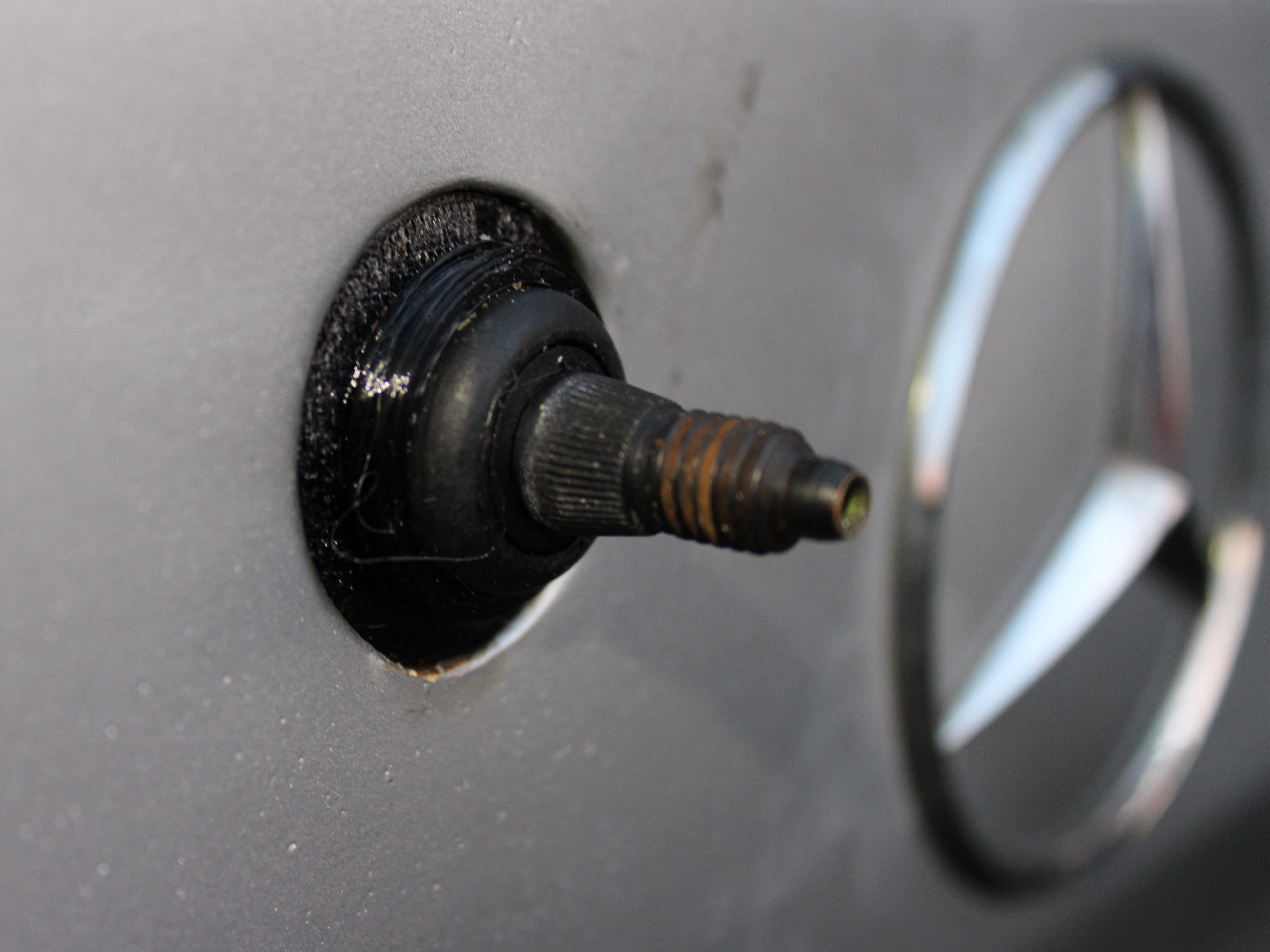

Field photographs
3 PLATES

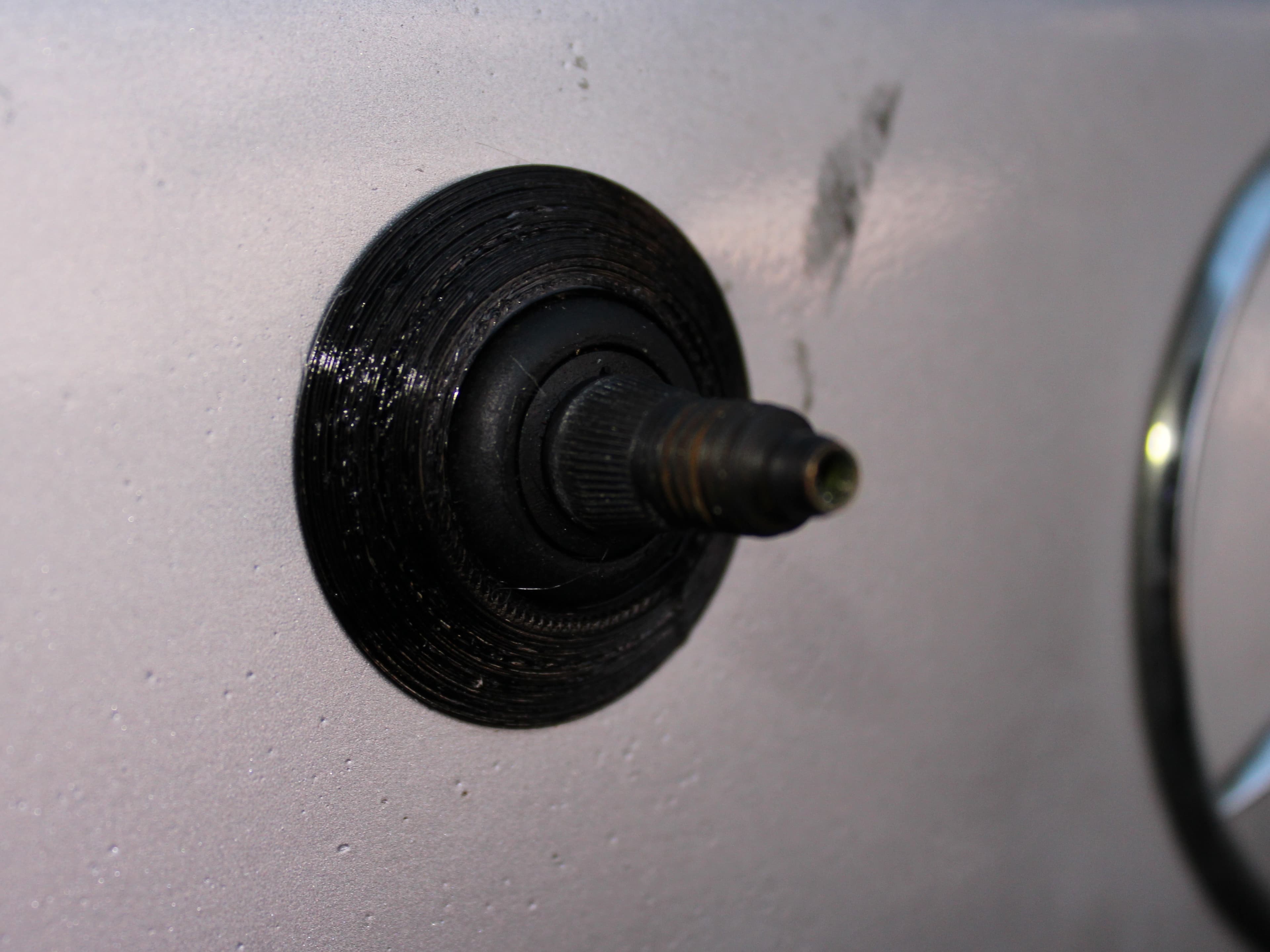

PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1766- [01]w639-rear-wiper-gasket-bottom.3mfw639-rear-wiper-gasket-bottom.3mf.STL
- [02]w639-rear-wiper-gasket-bottom.stlw639-rear-wiper-gasket-bottom.stl.STL
- [03]w639-rear-wiper-gasket-top.stlw639-rear-wiper-gasket-top.stl.STL
- [04]Bounding box79.343 × 47.186 × 5.664 mm
- [05]Volume2,946.438 mm³
Field notes
BY MOWERKTwo-piece flexible gasket for the rear-window wiper shaft. The creator explicitly describes it as a temporary fix because typical printable TPU is harder than the original rubber; installation requires removing the rear wiper motor. Use only as a temporary non-equivalent seal, match the exact shaft and glass interface, avoid loading or scratching the glass, and verify sealing, motor alignment and free wiper movement.
