PART №1721

Registration-Lamp Camera Insert

PETG1 FILECC-BY-SAExterior lighting, cameras & sensors
SummaryREF 1721
PART
Registration-Lamp Camera Insert
OEM
FITS
C-Class W203 / S203 / CL203, CLK C209 / A209
PartREV 2026

Loading 3D viewer...

Ref 17211 STL filePrints without supports

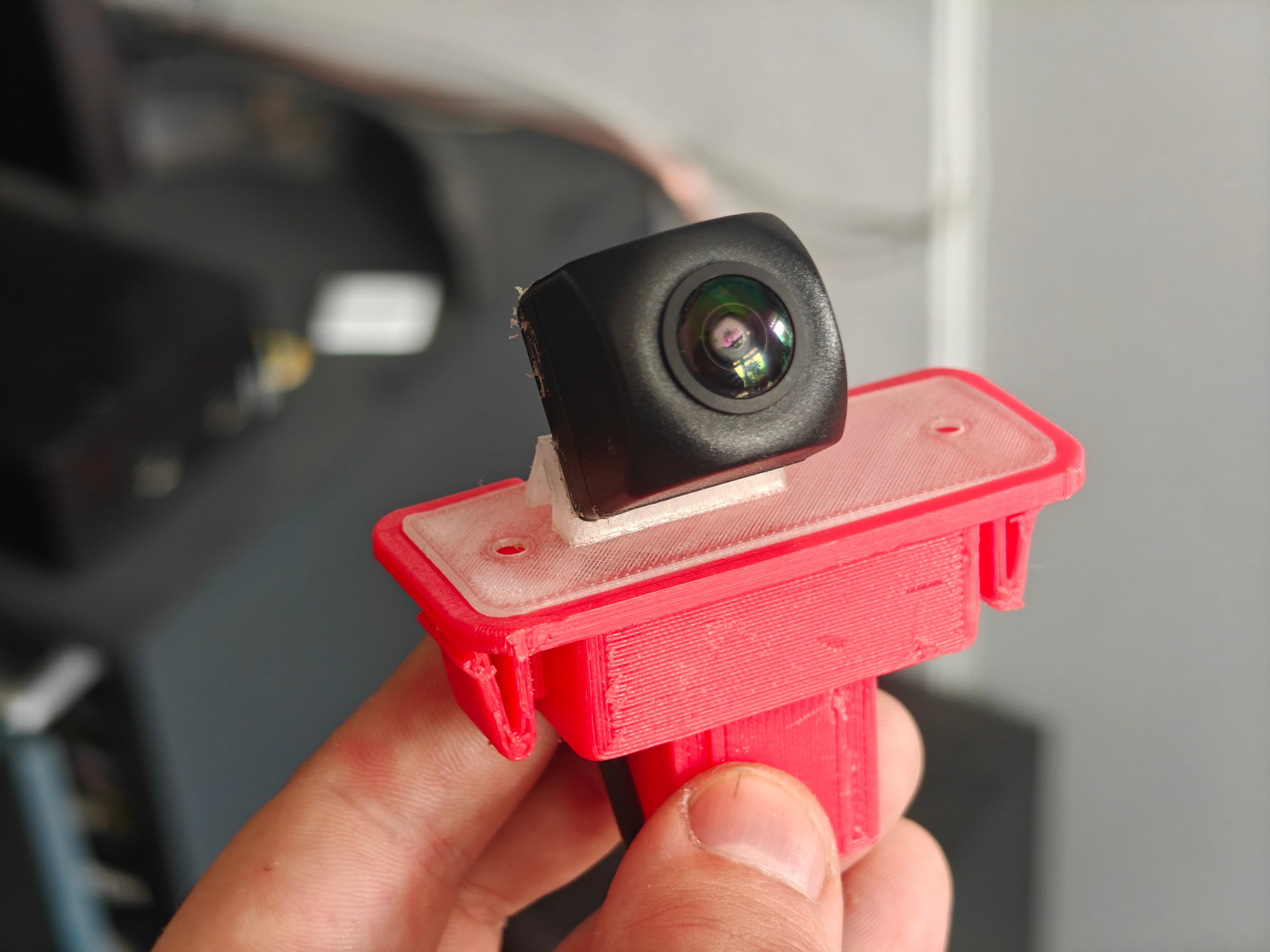

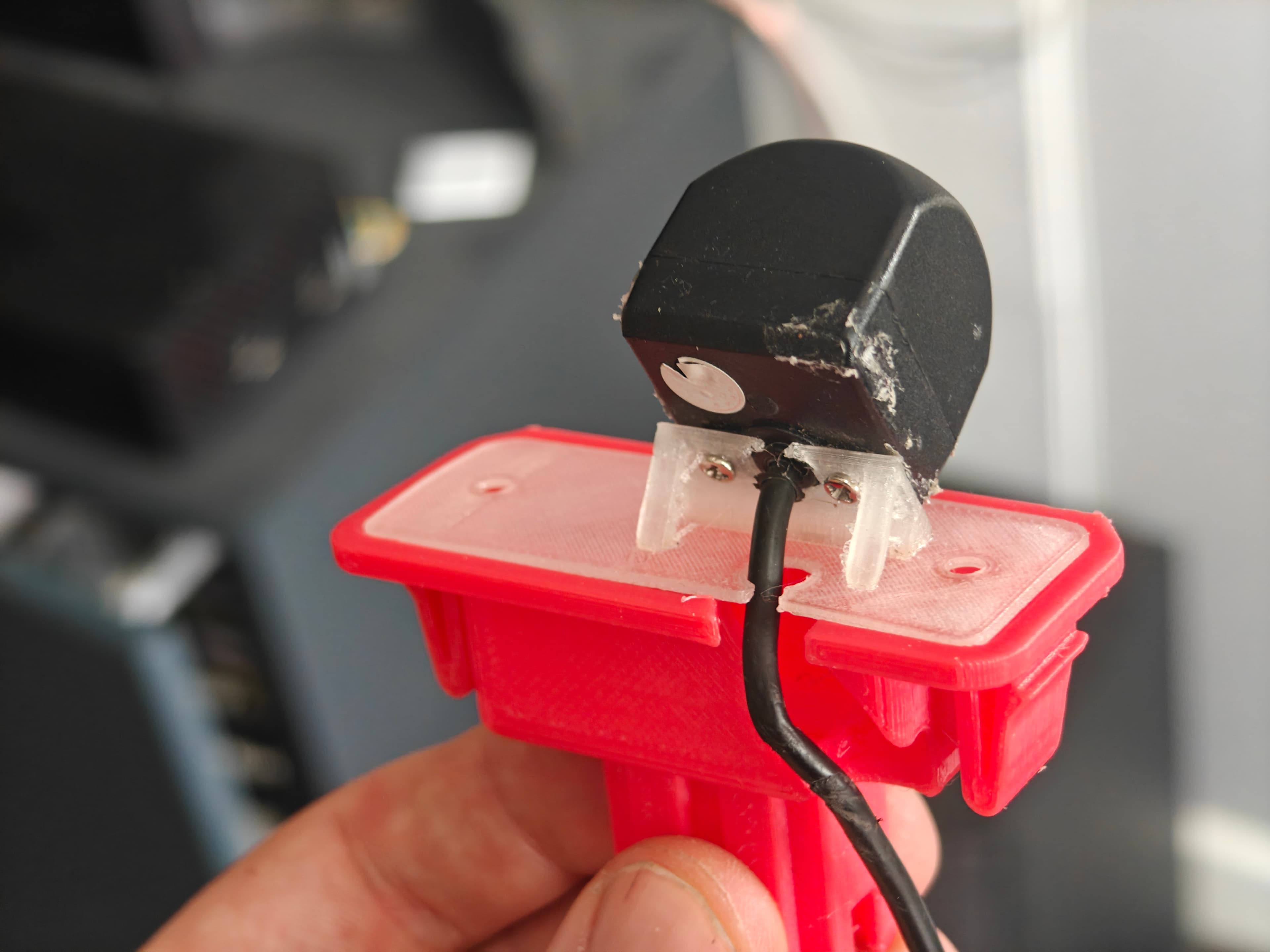

Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1721
  • [01]camera v1.stl.STL
  • [02]Bounding box64.000 × 24.000 × 11.276 mm
  • [03]Volume2,805.653 mm³
Field notes
BY ASCARIB

Transparent registration-lamp insert with a mount for the compact CVBS/AHD camera commonly supplied with aftermarket head units. The creator explicitly states W203 and W209 fitment and recommends transparent PCTG or PETG, aligned 100% infill, no top or bottom layers and ironing. Compare the lamp opening and camera body, seal cable entries, preserve required plate illumination and verify the insert cannot detach or leak into the boot lid.
