PART №1785

Right Cargo-Cover Locking-Pin Repair

REPLACES OEMA1648120201
ABS · Nylon · PETGMULTI-PART2 FILESCC-BYCabin trim, cargo & roof
SummaryREF 1785
PART
Right Cargo-Cover Locking-Pin Repair
OEM
A1648120201
FITS
GL / GLS X164, M-Class / GLE W164
PartREV 2026

Loading 3D viewer...

Ref 17852 STL filesPrints without supports
Field photographs
2 PLATES
Plate 1 of 2
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1785
  • [01]base.stl.STL
  • [02]holder.stl.STL
  • [03]Bounding box82.546 × 60.176 × 39.919 mm
  • [04]Volume20,153.512 mm³
Field notes
BY TIMO SAIRIALA (TIMPPAJEE)

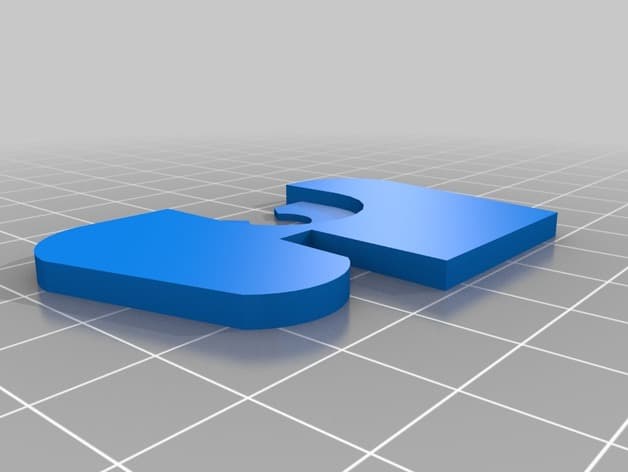

Two-piece repair for the right-hand locking pin/holder used when the retractable luggage-compartment cover is pulled across the cargo area. The creator designed it from the broken component on a 2006 vehicle and separated the base and holder because a one-piece print was too tight to install; clip in the base, then bond the holder to it. Mercedes EPC-style evidence identifies exact child A1648120201 as the right cargo-cover locking pin and maps that same component to W164 and X164. Verify side, colour/trim interface and retention before use.
