PART №1726

Roof-Moulding Retaining Clip Pair

REPLACES OEMA2036900013

ABS · Nylon · PETGMULTI-PART2 FILESCC-BY-SACabin trim, cargo & roof

SummaryREF 1726

PART: Roof-Moulding Retaining Clip Pair
OEM: A2036900013
FITS: C-Class W203 / S203 / CL203

Loading 3D viewer...

Ref 17262 STL filesPrints without supports

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Files & dimensions

MAN-1726

[01]Mercedes W203 Black Clip.STLMercedes W203 Black Clip.STL.STL
[02]Mercedes W203 White Clip.STLMercedes W203 White Clip.STL.STL
[03]Bounding box34.644 × 22.100 × 8.800 mm
[04]Volume3,059.082 mm³

Field notes

BY MAPM1998

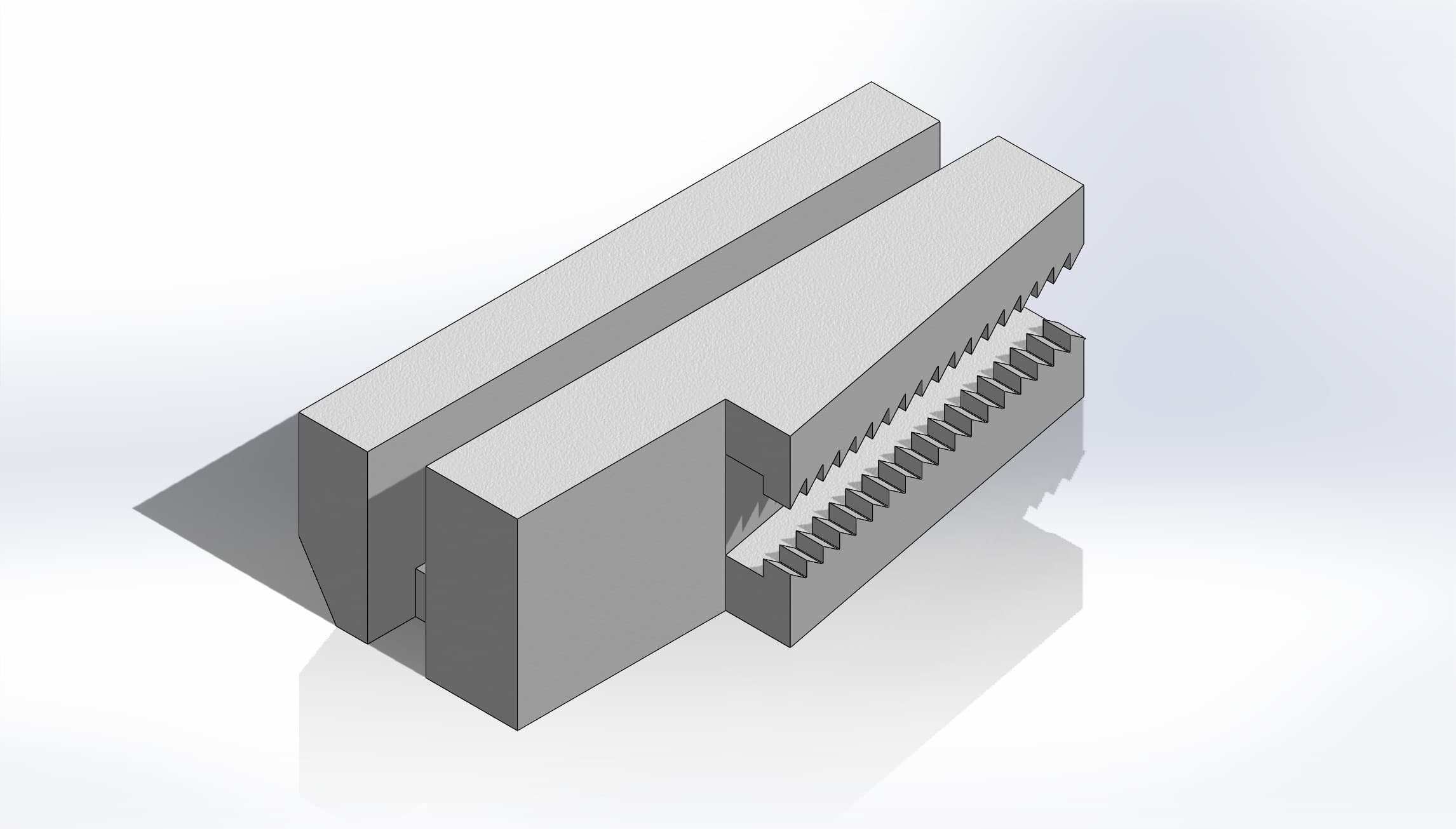

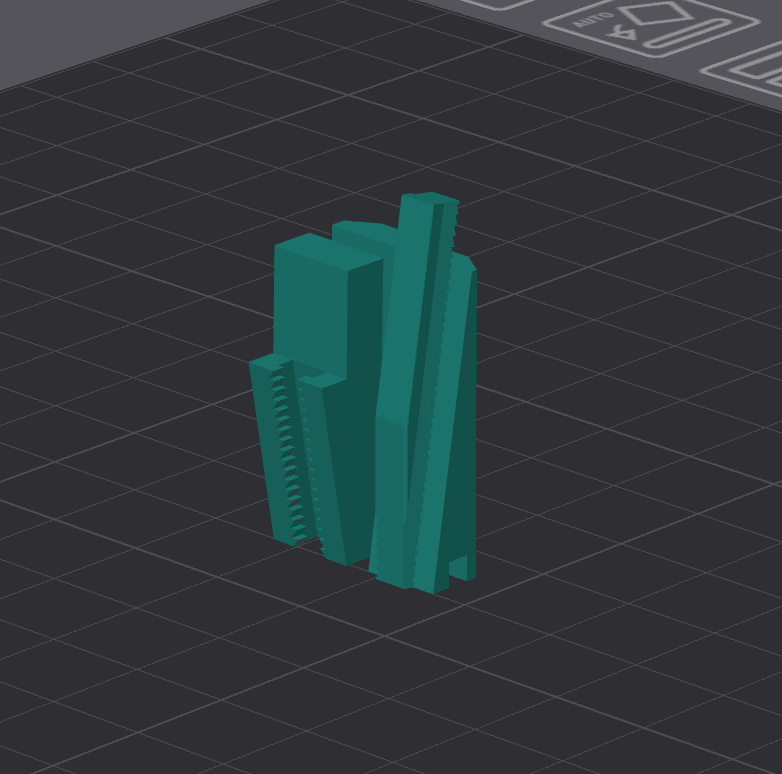

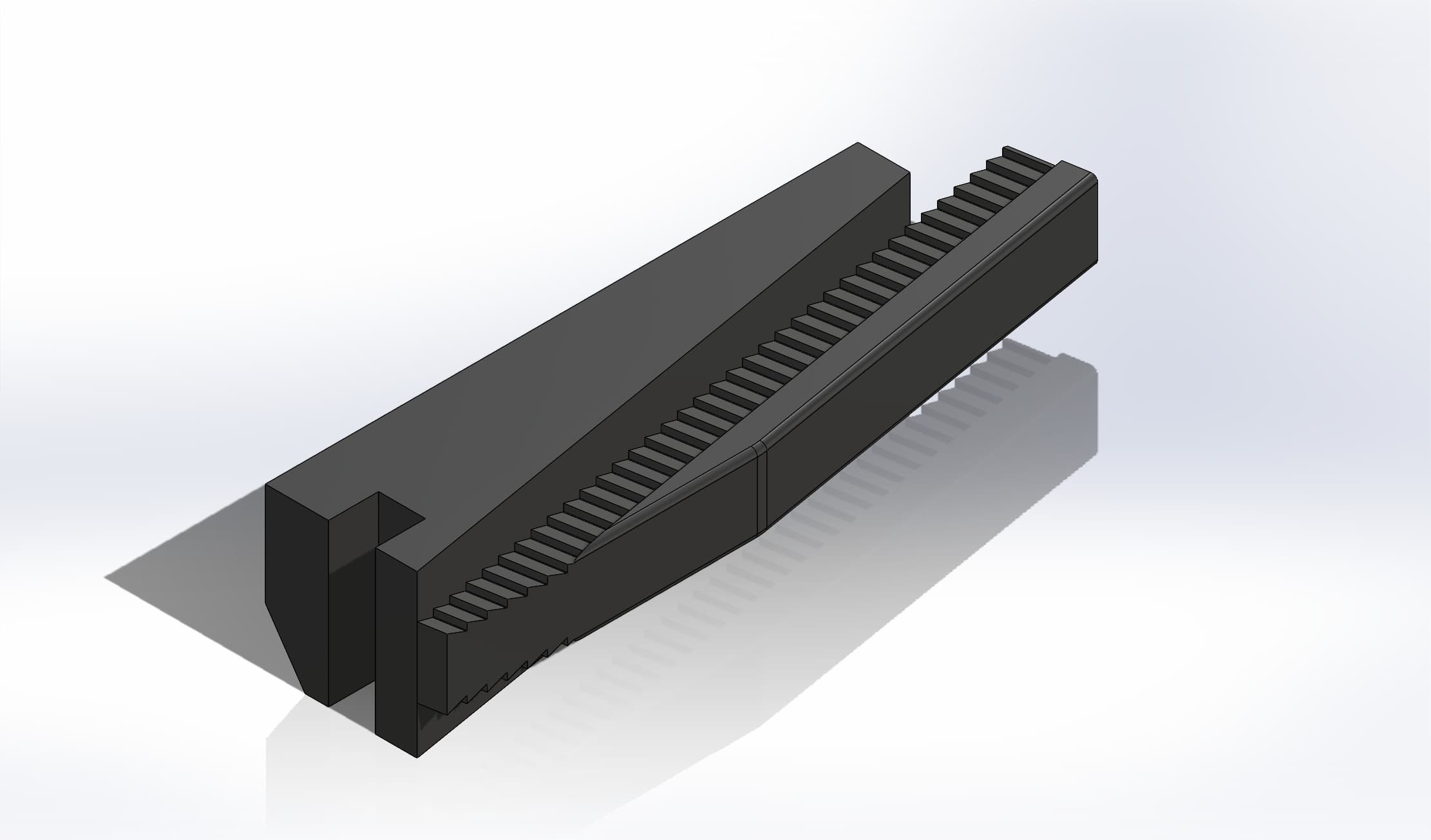

Reinforced black and white replacement clips for the sedan roof trim, designed to remain compatible with each other and with the original parts. The creator identifies exact child number A2036900013; Mercedes official and PartSouq evidence corroborates it as the W203 roof-moulding retaining clamp. Print both clips upright in heat-resistant material, verify sedan body and trim position, fit without forcing the roof strip and confirm secure retention and unobstructed drainage.
