PART №1566

Seat-Adjustment Repair Handle

PETG1 FILECC-BYSeats & restraints
SummaryREF 1566
PART
Seat-Adjustment Repair Handle
OEM
FITS
S-Class W116, W123 Series W123 / S123 / C123
PartREV 2026

Loading 3D viewer...

Ref 15661 STL filePrints without supports
Field photographs
5 PLATES
Plate 1 of 5
PLATE 01 / 05No caption recorded
Files & dimensions
MAN-1566

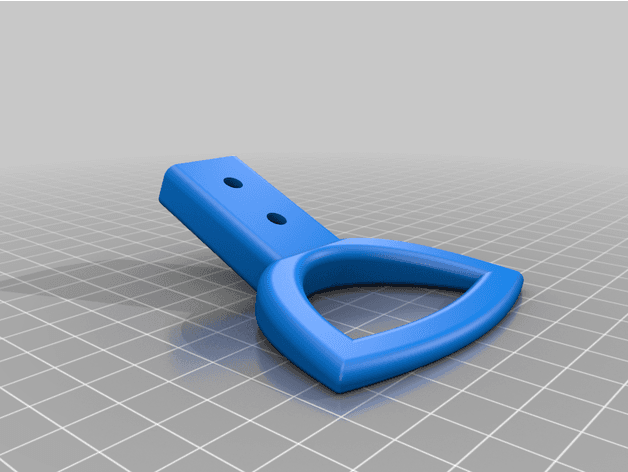

  • [01]Mercedes_w123_seat_handle.stl.STL
  • [02]Bounding box83.753 × 69.716 × 27.780 mm
  • [03]Volume16,831.072 mm³
Field notes
BY TRUSTDAVID

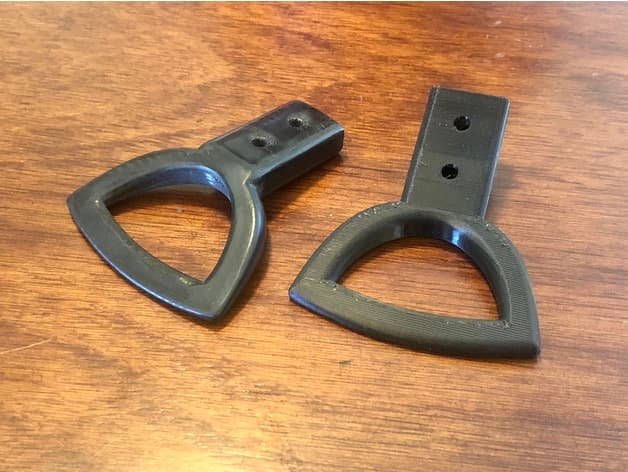

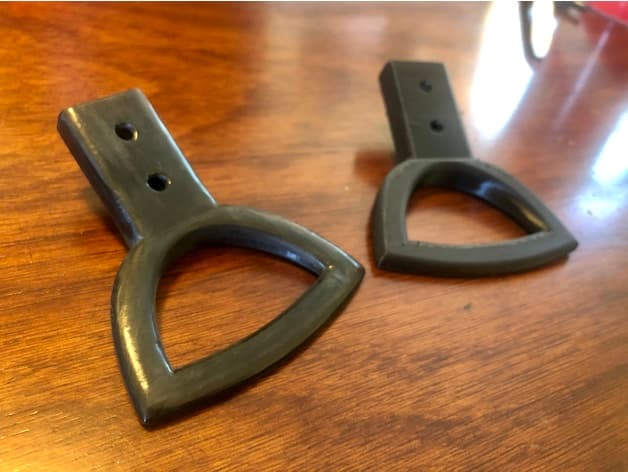

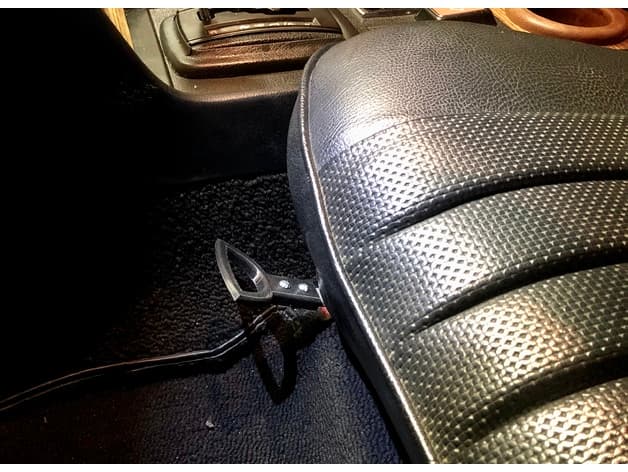

Bolt-on replacement handle for broken manual seat-adjustment levers. The creator explicitly designed and photographed it for both 116-series and 123-series cars, states that it can be used at all four handle positions, and notes that side height adjusters accept one screw while the front adjusters use two. The demonstrated part was printed in PETG, sanded and buffed, then fastened through the surviving metal lever with screws and nuts. Remove only the remains of the failed grip, preserve the original lever, deburr all holes, use secure low-profile hardware, and confirm full adjustment and locking travel before driving.
