PART №1758

Seat-Belt Upper-Anchor Cover

ABS · Nylon · PETG1 FILECC-BY-NC-SASeats & restraints
SummaryREF 1758
PART
Seat-Belt Upper-Anchor Cover
OEM
FITS
Vito / Viano / V-Class W639
PartREV 2026

Loading 3D viewer...

Ref 17581 STL filePrints without supports
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1758
  • [01]W639_seatbelt_anchor_cover_1.5mm_clips.stl.STL
  • [02]Bounding box54.000 × 45.000 × 32.000 mm
  • [03]Volume8,607.276 mm³
Field notes
BY IVICA VUJANIC (IVICA68)

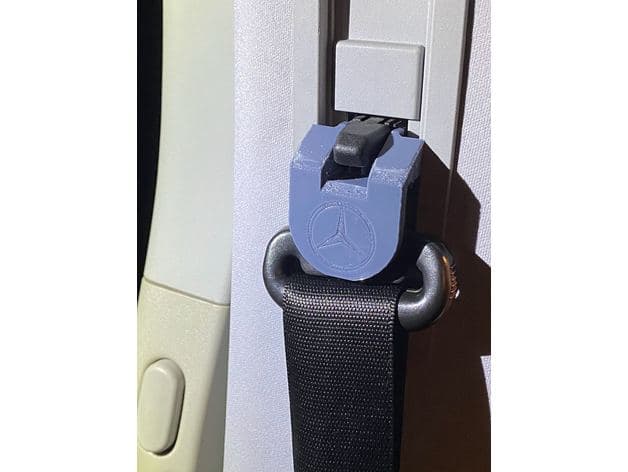

Trim cover for the upper seat-belt height-adjuster anchor. Source photographs show the printed cover installed over the factory adjuster; it is cosmetic and must not carry belt load. Use tough cabin-heat-resistant material, preserve unobstructed adjuster travel, never cover damage or alter the belt, anchor or mechanism, and confirm the belt retracts, adjusts and locks normally after fitting.
