PART №1571

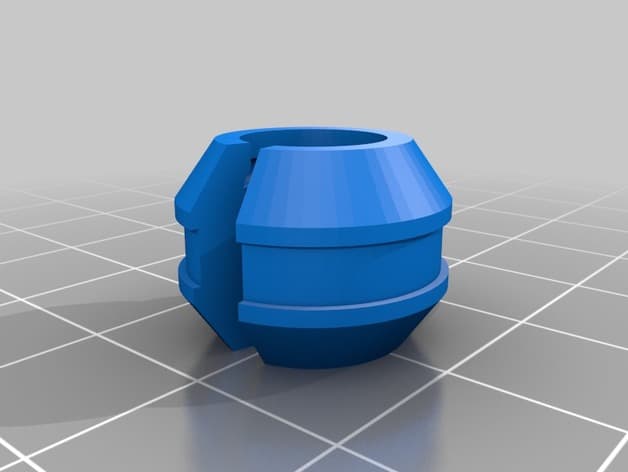

Selector-Linkage Bushing

Nylon · PETG1 FILECC-BYTransmission & drivetrain
SummaryREF 1571
PART
Selector-Linkage Bushing
OEM
FITS
W123 Series W123 / S123 / C123
PartREV 2026

Loading 3D viewer...

Ref 15711 STL filePrints without supports
Field photographs
2 PLATES
Plate 1 of 2
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1571
  • [01]ShifterBushing-split.STL.STL
  • [02]Bounding box16.993 × 16.787 × 12.500 mm
  • [03]Volume1,350.602 mm³
Field notes
BY GARY MITCHELL (GM2)

Replacement automatic gear-selector linkage bushing printed for a degraded original on a 123-series car. The creator shows the part at the linkage and notes that a 1/4-inch E-clip can replace a missing retaining clip. Use a wear-resistant material, retain the linkage securely, then verify every selector position, positive Park engagement and neutral-start behavior with the parking brake applied before driving; stop use if the linkage binds or develops play.
