PART №1633
Self-Levelling Reservoir Mount Grommet Set
REPLACES OEMA1299971681
TPU2 FILESCC-BY-NC-SASteering, suspension & brakes
- PART
- Self-Levelling Reservoir Mount Grommet Set
- OEM
- A1299971681
- FITS
- E-Class W124 / S124 / C124 / A124
Loading 3D viewer...
Ref 16332 STL filesPrints without supports
Field photographs
2 PLATES

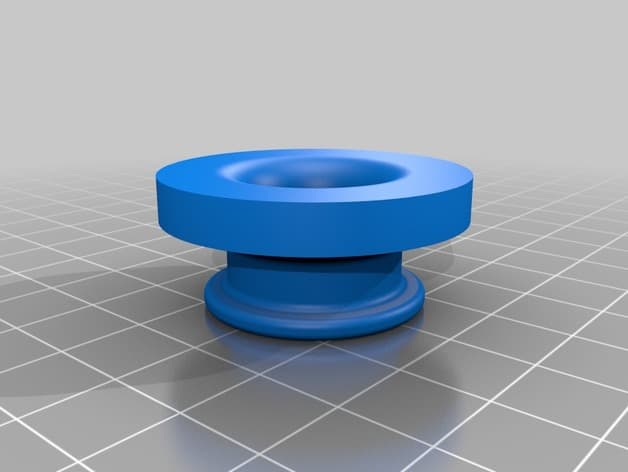

PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1633- [01]SLS_Reservoir_Grommet.stlSLS_Reservoir_Grommet.stl.STL
- [02]SLS_Reservoir_Grommet_Alt.stlSLS_Reservoir_Grommet_Alt.stl.STL
- [03]Bounding box37.999 × 37.997 × 16.900 mm
- [04]Volume8,907.438 mm³
Field notes
BY LUCAS (PTASHEK)Standard- and loose-fit replacement grommets for mounting the hydraulic self-levelling suspension oil reservoir on estate cars. The creator identifies the exact child as A1299971681. These grommets support only the reservoir, not a suspension load path. Use oil-, heat- and vibration-resistant flexible material, match the mounting hole and reservoir pin, and inspect for leaks and secure retention after installation.
