PART №1588

Sensor-Connector Locking Pin

ABS · Nylon · PETG1 FILECC-BYEngine-bay electrical & sensors
SummaryREF 1588
PART
Sensor-Connector Locking Pin
OEM
FITS
W123 Series W123 / S123 / C123
PartREV 2026

Loading 3D viewer...

Ref 15881 STL filePrints without supports
Field photographs
5 PLATES
Plate 1 of 5
PLATE 01 / 05No caption recorded
Files & dimensions
MAN-1588
  • [01]w123-pin-4mm.stl.STL
  • [02]Bounding box30.000 × 18.000 × 8.000 mm
  • [03]Volume2,146.943 mm³
Field notes
BY DMITRI SOLOVIEV (DMISOL)

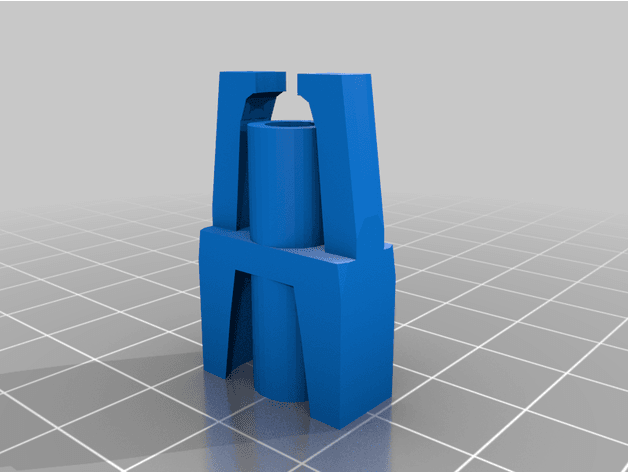

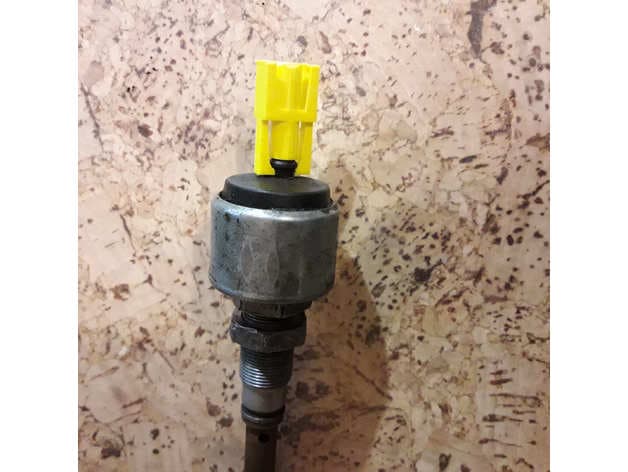

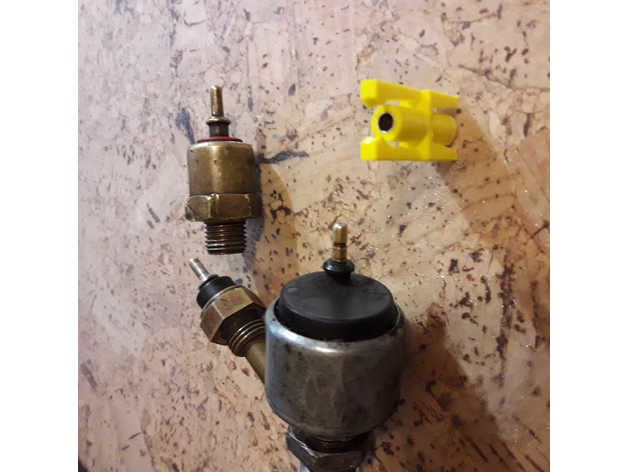

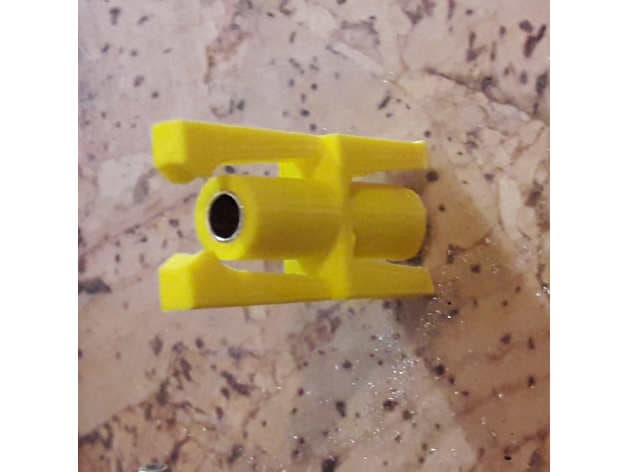

Replacement 4 mm plastic locking pin for electrical sensor connectors and the Stromberg 175 carburettor valve connector. The creator demonstrates the printed pin with the original sensor fittings. Match the connector body and pin diameter exactly, use engine-bay heat- and fuel-resistant material, route wiring without strain and confirm the connector cannot loosen or short before operating the engine.
