PART №1667

Sliding-Door Latch Push Knob

ABS · PETG · TPU1 FILEPublic DomainInterior doors & windows
SummaryREF 1667
PART
Sliding-Door Latch Push Knob
OEM
FITS
Sprinter W901–W905
PartREV 2026

Loading 3D viewer...

Ref 16671 STL filePrints without supports
Field photographs
2 PLATES

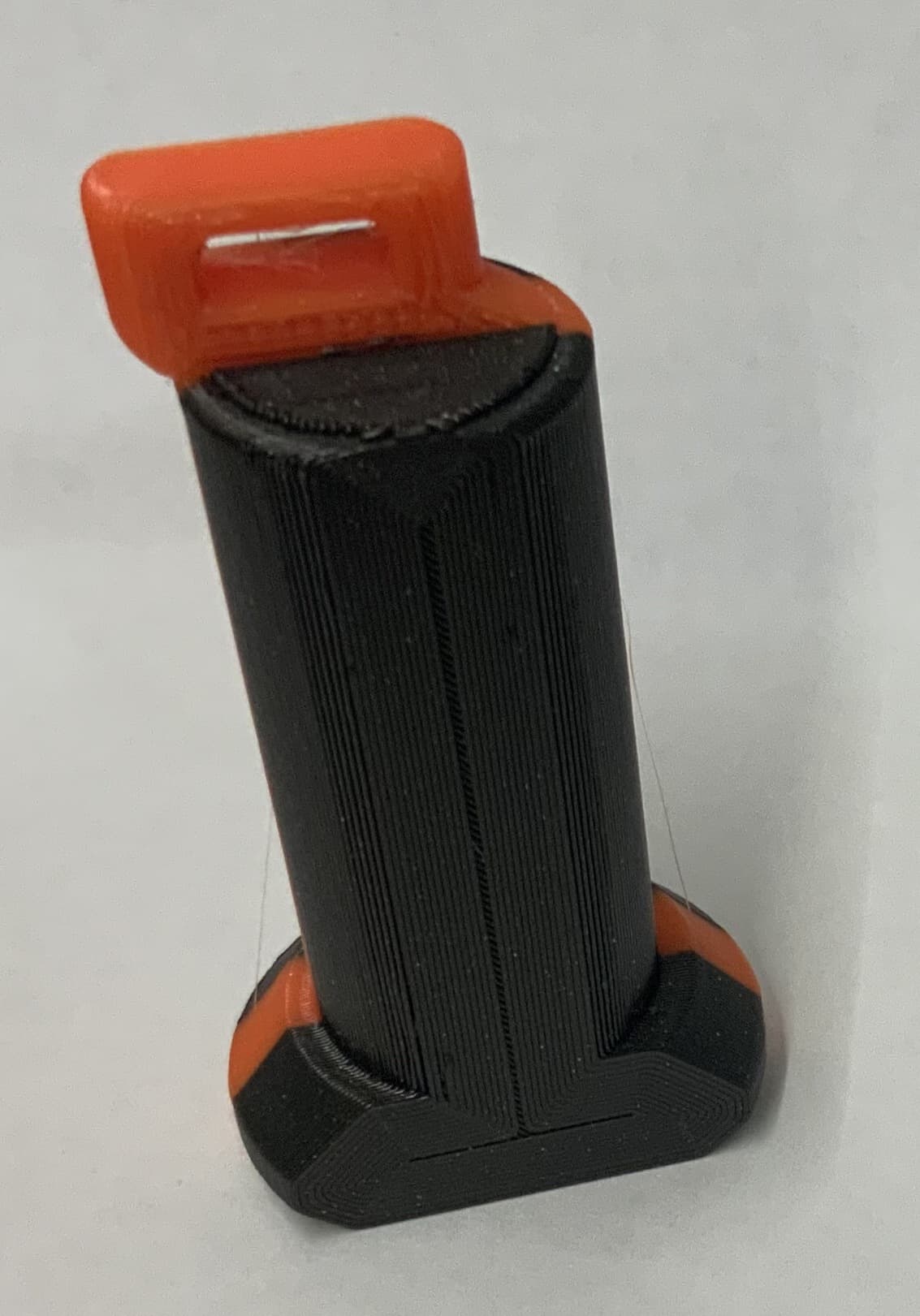

Plate 1 of 2
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1667
  • [01]van door inner plunger.stl.STL
  • [02]Bounding box61.500 × 32.000 × 32.000 mm
  • [03]Volume20,984.872 mm³
Field notes
BY TOMM

Two-material push knob for operating the interior sliding-door latch, developed on a 2006 2500 van after the replacement handle tab failed. The source provides STL and 3MF variants plus photographs of the physical knob, and specifies flexible material sandwiched between rigid sections. Clean and repair a resistant latch mechanism rather than forcing it, use tough cabin-heat-resistant materials, confirm secure engagement and verify normal opening, closing and latching from inside and outside before use.
