PART №1610

Switch-Blanking Cover

ABS · PETG1 FILECC-BYDashboard & controls
SummaryREF 1610
PART
Switch-Blanking Cover
OEM
FITS
190 Series W201
PartREV 2026

Loading 3D viewer...

Ref 16101 STL filePrints without supports
Field photographs
5 PLATES
Plate 1 of 5
PLATE 01 / 05No caption recorded
Files & dimensions
MAN-1610
  • [01]Mercedes_Teil.STL.STL
  • [02]Bounding box41.600 × 18.300 × 7.500 mm
  • [03]Volume1,730.948 mm³
Field notes
BY NIVEKKEKE

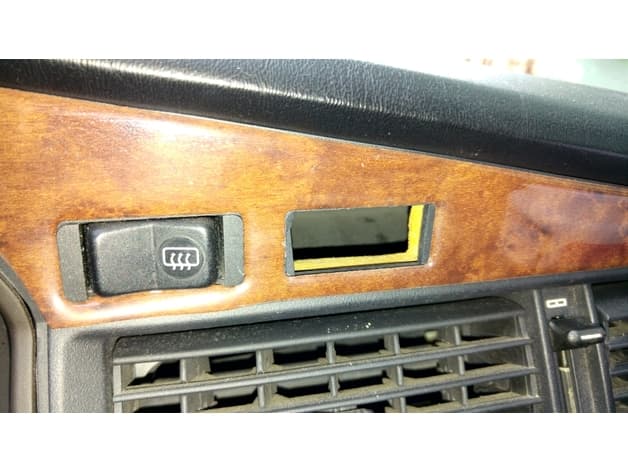

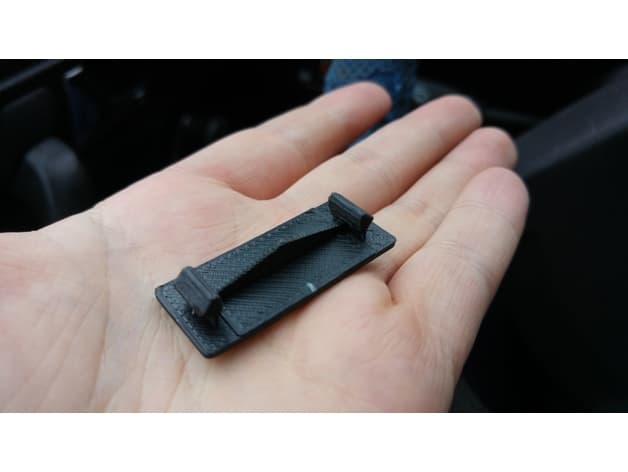

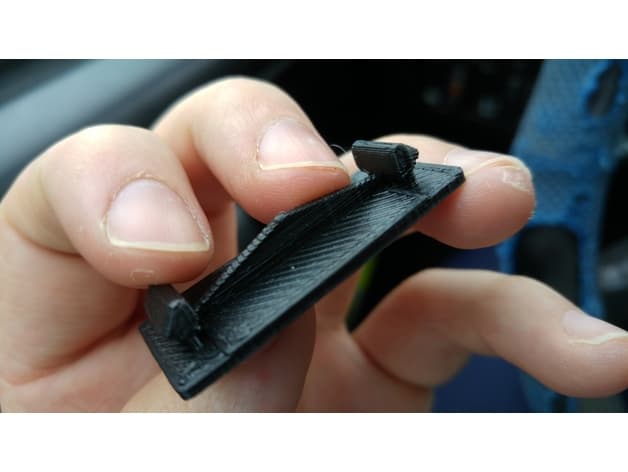

Blanking cover for an unused rectangular switch opening in the upper centre dashboard trim. The creator designed and physically fitted it in a 190-series cabin but does not claim other applications. Compare the opening and surrounding veneer before printing, use cabin-heat-resistant material, and verify the cover cannot interfere with the adjacent rear-window-demister switch or air vent.
