PART №1636

Tail-Lamp Bulb-Carrier Retaining Clip

ABS · Nylon · PETG1 FILECC-BYExterior lighting, cameras & sensors
SummaryREF 1636
PART
Tail-Lamp Bulb-Carrier Retaining Clip
OEM
FITS
SL R129
PartREV 2026

Loading 3D viewer...

Ref 16361 STL filePrints without supports
Field photographs
6 PLATES
Plate 1 of 6
PLATE 01 / 06No caption recorded
Files & dimensions
MAN-1636
  • [01]TailLightHolderClip.STL.STL
  • [02]Bounding box44.400 × 28.800 × 14.722 mm
  • [03]Volume3,923.549 mm³
Field notes
BY PREADOR

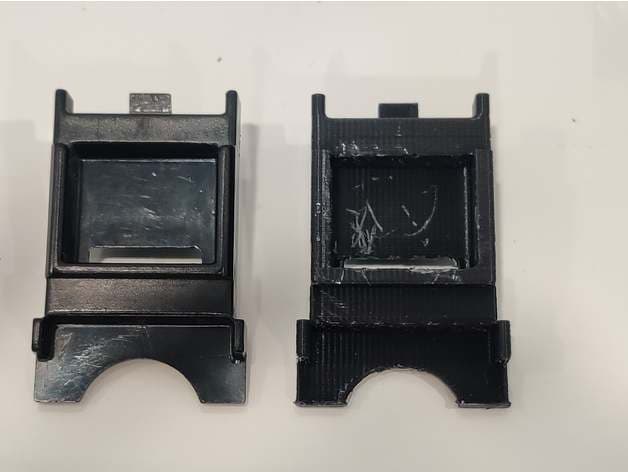

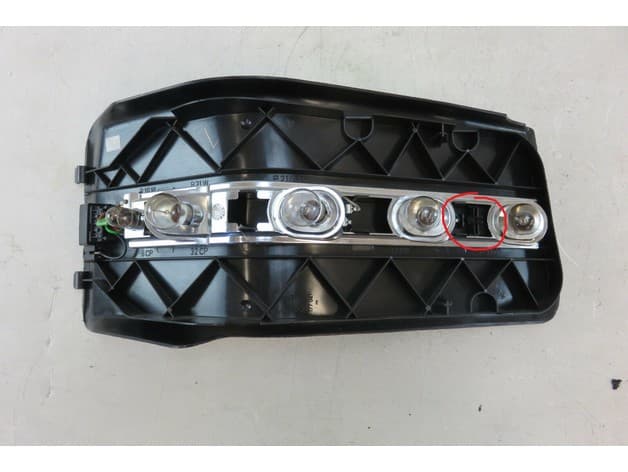

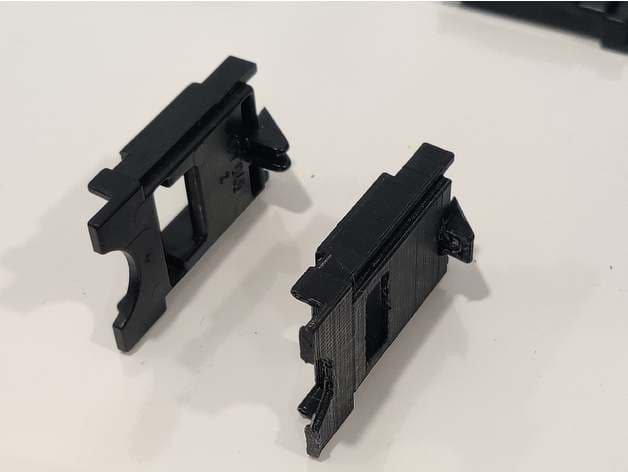

Replacement sliding clip that retains the rear-lamp bulb-carrier assembly. The creator removed the reflector, installed the printed clip, lubricated its sliding faces and reports that it holds the carrier in place. The stated 1298201577, 1298200577 and 1298200677 numbers identify complete lamp assemblies, not this printed child, so they are not assigned. Print with the circular opening toward the bed, use ABS or another heat- and weather-resistant material, verify smooth clip travel and carrier retention, then test every rear lamp before driving.
