PART №1615

Tow-Eye Cover Retaining Clip

ABS · Nylon · PETG1 FILECC-BY-NCBumpers, grilles & guards

SummaryREF 1615

PART: Tow-Eye Cover Retaining Clip
OEM: —
FITS: 190 Series W201

Loading 3D viewer...

Ref 16151 STL filePrints without supports

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Files & dimensions

MAN-1615

[01]04.stl04.stl.STL
[02]Bounding box88.500 × 21.500 × 12.000 mm
[03]Volume1,104.064 mm³

Field notes

BY BLABLABLUB

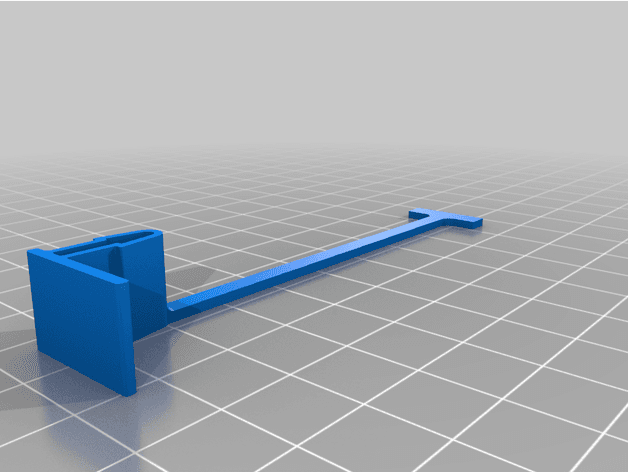

Retaining clip with a safety tab for one side of the front towing-eye cover; the creator instructs mirroring the model for the opposite side. Only CAD/source screenshots are available, so compare the original cover and clip geometry carefully. Use UV-, weather- and impact-resistant material and confirm the cover remains retained at road speed.

View original source ↗
