PART №1741
Under-Seat Storage Handle
ABS · Nylon · PETG1 FILECC-BYDashboard & controls
- PART
- Under-Seat Storage Handle
- OEM
- —
- FITS
- E-Class W211 / S211
Loading 3D viewer...
Ref 17411 STL filePrints without supports
Field photographs
3 PLATES

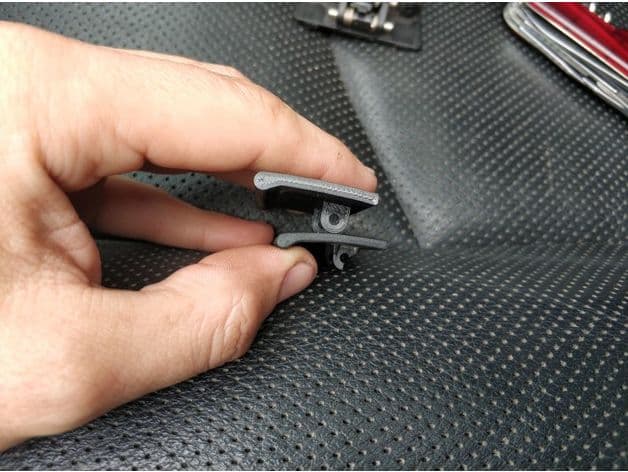

PLATE 01 / 03No caption recorded
Files & dimensions

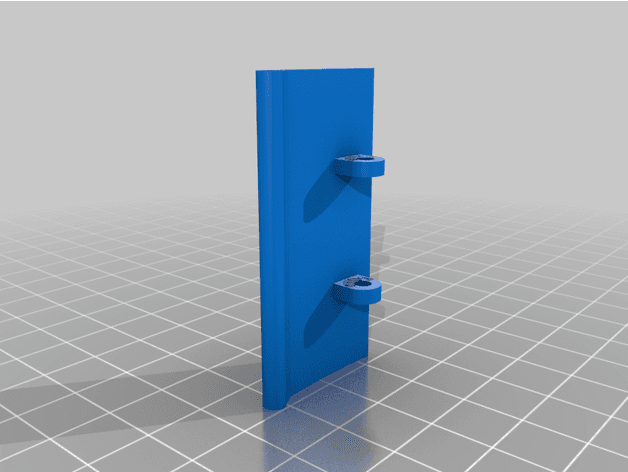

MAN-1741- [01]mercedes_w211_under_seat_locker_handle.stlmercedes_w211_under_seat_locker_handle.stl.STL
- [02]Bounding box51.500 × 26.160 × 9.372 mm
- [03]Volume4,128.554 mm³
Field notes
BY KRZYSZTOF TKACZ (TRUTEN23)Replacement opening handle for the storage compartment below either front seat. Print vertically with support beneath the hinge features and verify hinge movement before loading the compartment.
