Merc 3D Parts
PART №1694

Washer-Reservoir Cap

ABS1 FILECC-BYWipers & washers
SummaryREF 1694
PART
Washer-Reservoir Cap
OEM
FITS
M-Class / GLE W163
PartREV 2026

Loading 3D viewer...

Ref 16941 STL filePrints without supports
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1694

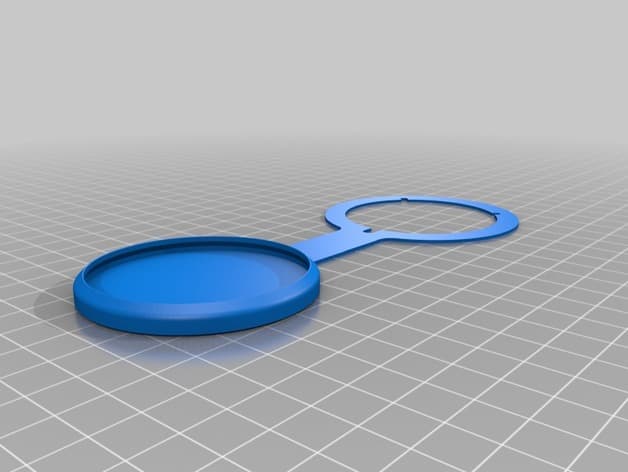

  • [01]cap.stl.STL
  • [02]Bounding box165.627 × 67.996 × 6.536 mm
  • [03]Volume8,855.608 mm³
Field notes
BY MARIUSZ CHWALBA (KODER)

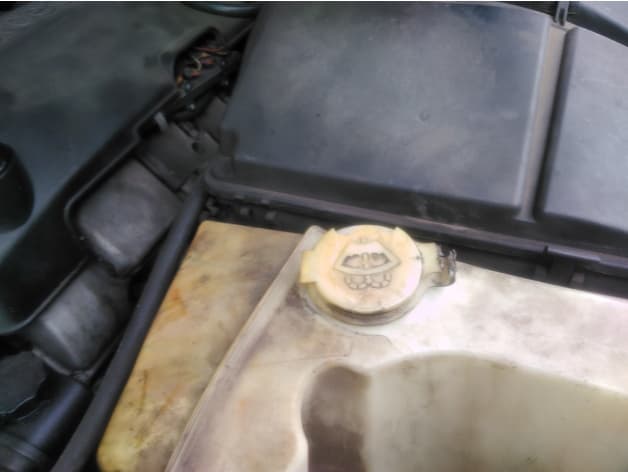

Replacement windshield-washer-fluid reservoir cap proven by the creator on a 1999 first-generation SUV. The source reports that the original cap crumbles with age and that the replacement was printed successfully in dual-colour ABS; the colour change was made 1 mm into the print. Verify the cap profile against the vehicle before installation.
