PART №1765

Washer-Reservoir Cap

REPLACES OEMA1248690172
TPU1 FILECC-BY-NC-SAWipers & washers
SummaryREF 1765
PART
Washer-Reservoir Cap
OEM
A1248690172
FITS
Sprinter W901–W905, Sprinter W906, Vito / Viano / V-Class W639
PartREV 2026

Loading 3D viewer...

Ref 17651 STL filePrints without supports
Field photographs
2 PLATES
Plate 1 of 2
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1765
  • [01]w639-water-tank-cap.stl.STL
  • [02]Bounding box218.000 × 82.000 × 6.000 mm
  • [03]Volume15,382.487 mm³
Field notes
BY MOWERK

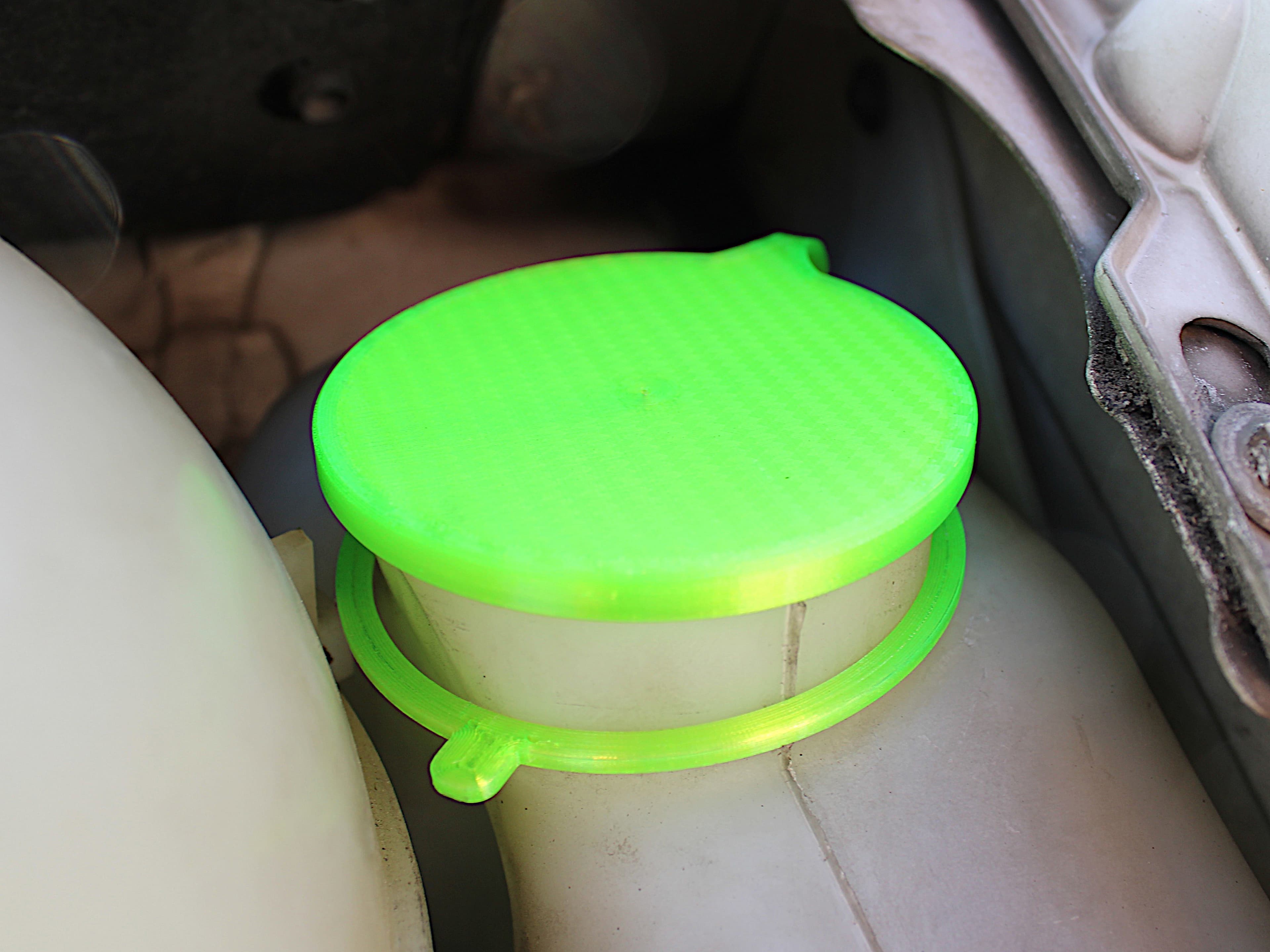

Flexible 74 mm replacement cap for the windscreen-washer reservoir. The creator measured the original, recommends TPU and notes that a 98% scale may improve fit; source photographs show it installed. Verify the reservoir neck diameter, print in washer-fluid-, heat- and weather-resistant flexible material, and confirm the cap seats securely without obstructing filling or venting.
