PART №1691

Wind-Deflector Net Trim Insert

ABS · PETG1 FILECC-BYCabin trim, cargo & roof
SummaryREF 1691
PART
Wind-Deflector Net Trim Insert
OEM
FITS
CLK C208 / A208
PartREV 2026

Loading 3D viewer...

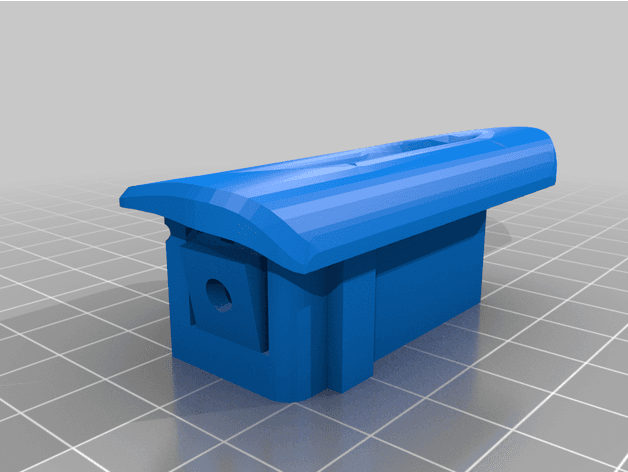

Ref 16911 STL filePrints without supports
Field photographs
5 PLATES
Plate 1 of 5
PLATE 01 / 05No caption recorded
Files & dimensions
MAN-1691
  • [01]cache-filet.stl.STL
  • [02]Bounding box65.000 × 35.102 × 24.861 mm
  • [03]Volume8,164.516 mm³
Field notes
BY MATT SOUL (VENTRACHOUX)

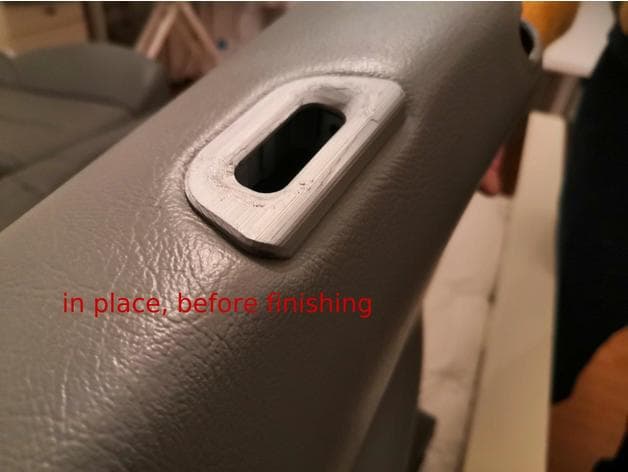

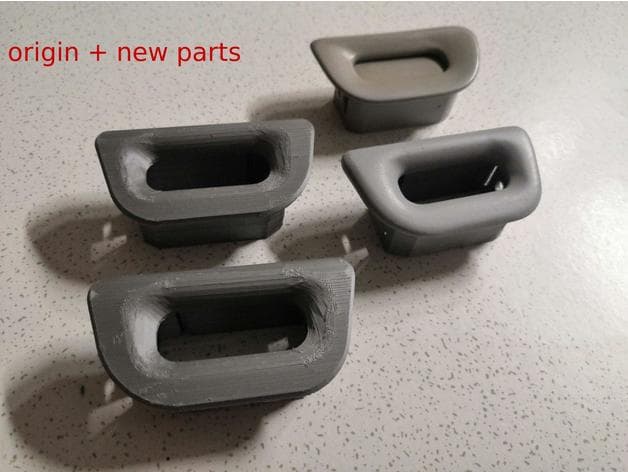

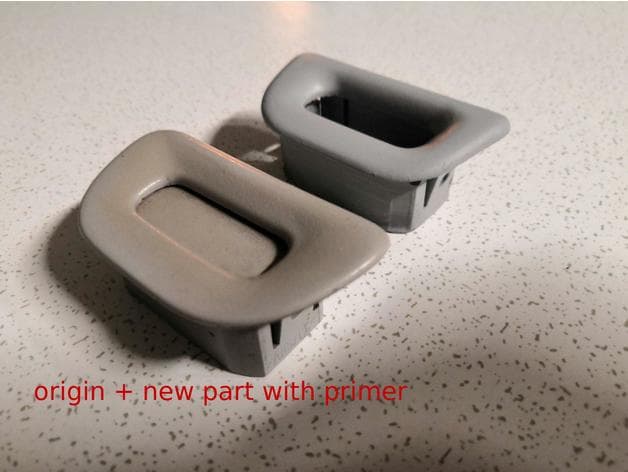

Replacement trim insert for the wind-deflector net opening of the late-1990s CLK convertible, modeled after the creator broke the original while removing the rear trim. The source shows the original and replacement together and the printed part installed. Mirror the supplied model in the slicer for the opposite side, then sand, prime and paint as needed. Transfer the original small flap and spring to the print; the creator does not publish a separately serviced Mercedes child number, so no wind-deflector or rear-trim parent assembly number is assigned. Confirm A208 trim and side geometry before installation.
