PART №1565

Window-Switch Rocker Cap

Nylon2 FILESCC-BY-NC-SAInterior doors & windows
SummaryREF 1565
PART
Window-Switch Rocker Cap
OEM
FITS
SL R107
PartREV 2026

Loading 3D viewer...

Ref 15652 STL filesPrints without supports
Field photographs
2 PLATES

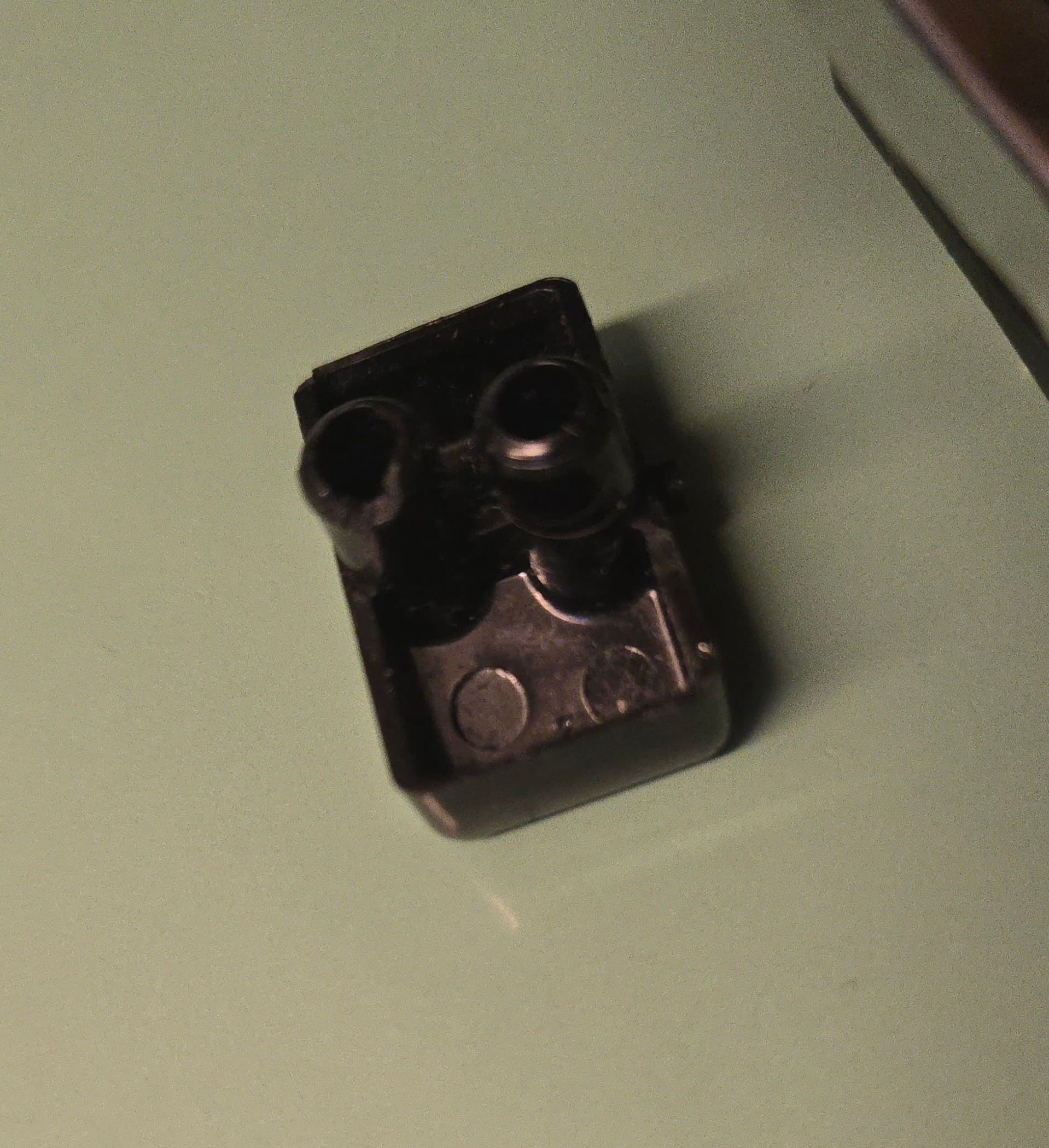

Plate 1 of 2
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1565
  • [01]SL R107 Switch.3mf.STL
  • [02]SL R107 Switch pre-supported.stl.STL
  • [03]Bounding box26.800 × 19.000 × 16.800 mm
  • [04]Volume2,749.564 mm³
Field notes
BY BISCHI

Replacement rocker cap for the electric-window switch. The creator modeled it after a broken original, reports that it fits, and recommends resin printing because ordinary FDM appearance and durability were unsatisfactory. Preserve the switch mechanism and contacts, confirm free return movement and electrical isolation, and stop using the part if it binds or softens in cabin heat.
