PART №1639

Windscreen-Wiper Linkage Bushing

Nylon · PETGMULTI-PART1 FILECC-BYWipers & washers
SummaryREF 1639
PART
Windscreen-Wiper Linkage Bushing
OEM
FITS
SL R129
PartREV 2026

Loading 3D viewer...

Ref 16391 STL filePrints without supports
Field photographs
2 PLATES

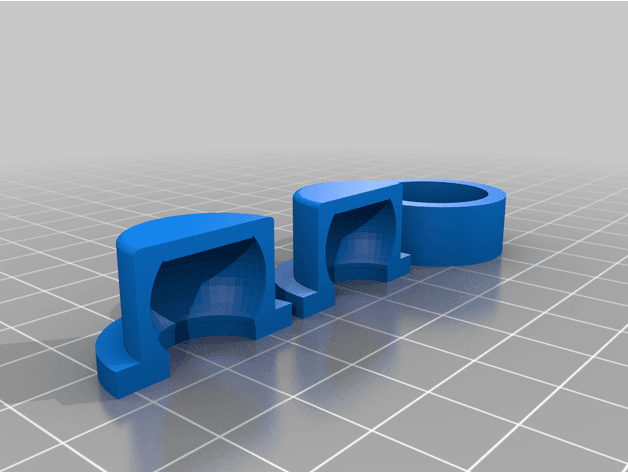

Plate 1 of 2
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1639
  • [01]Mercedes_SL_R129_Wiper_Bushing.stl.STL
  • [02]Bounding box83.234 × 25.998 × 15.000 mm
  • [03]Volume5,471.19 mm³
Field notes
BY A P (AXLPR)

Three-piece replacement bushing for the 16 mm ball joint between the windscreen-wiper arm and motor linkage. The creator printed it in PETG at 100% infill, fitted it around the ball joint, bonded the pieces and recommends lubrication. Match the ball diameter and linkage version, use wear-, heat- and moisture-resistant material, preserve free articulation and bench-test full sweep, parking and stall behavior before wet-road use; inspect the bonded joint regularly.
