PART №1768

Windscreen-Wiper Spindle Nut Cover

REPLACES OEMA6398240049

TPU1 FILECC-BY-NC-SAWipers & washers

SummaryREF 1768

PART: Windscreen-Wiper Spindle Nut Cover
OEM: A6398240049
FITS: Vito / Viano / V-Class W639

Loading 3D viewer...

Ref 17681 STL filePrints without supports

Field photographs

2 PLATES

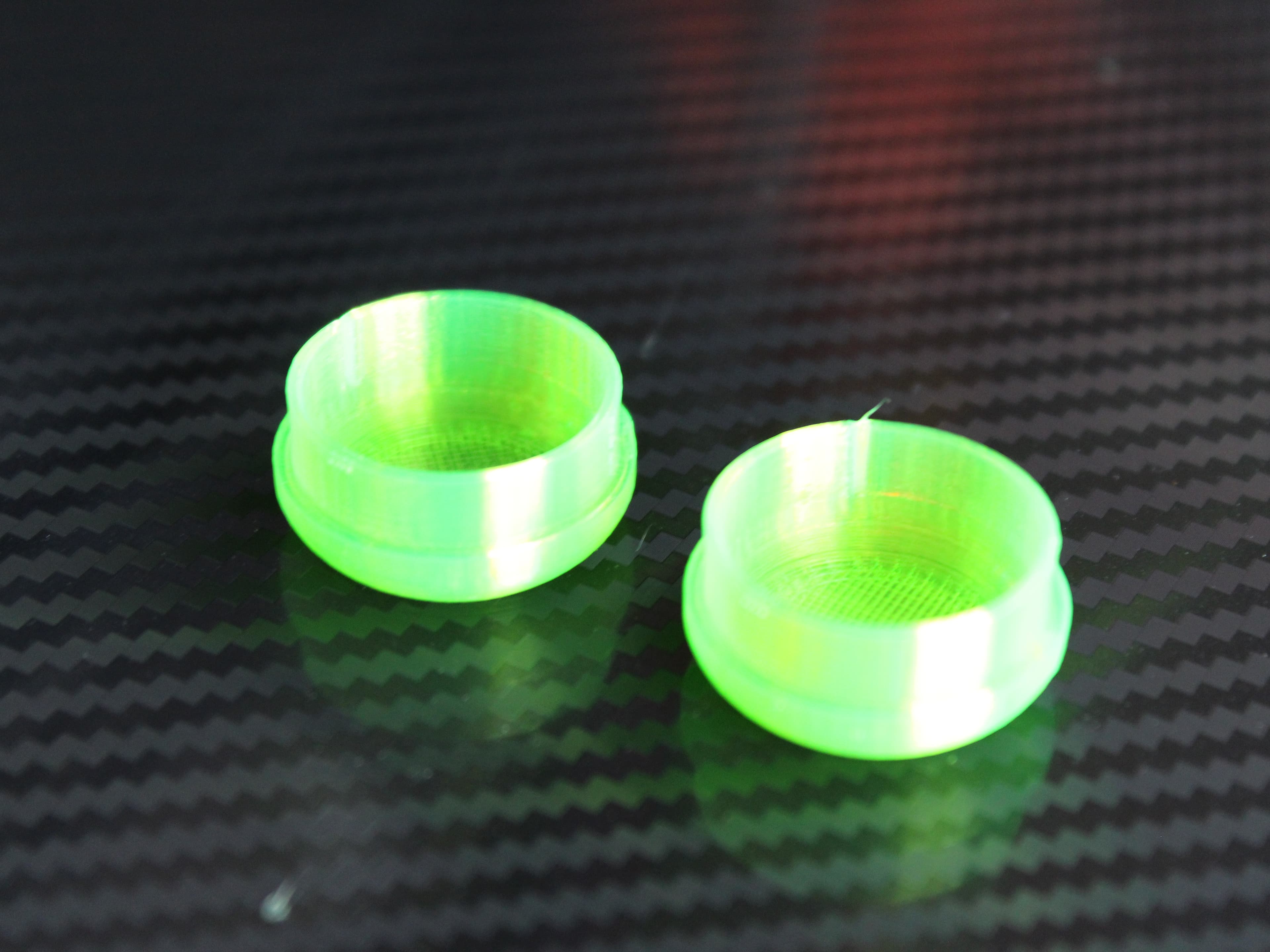

PLATE 01 / 02No caption recorded

Files & dimensions

MAN-1768

[01]w639-wiper-nut-cup.stlw639-wiper-nut-cup.stl.STL
[02]Bounding box21.991 × 21.982 × 10.000 mm
[03]Volume1,647.372 mm³

Field notes

BY MOWERK

Flexible protective cap for the front windscreen-wiper arm nut, print-tested by the creator in 95A TPU and shown installed. Match the spindle and arm version, use UV-, weather- and washer-fluid-resistant flexible material, seat it without contacting the moving arm, and confirm full wiper travel and retention after wet-weather operation.
