PART №1705

Windshield Drain Grille Set

ABS · Nylon · PETG1 FILECC-BY-SABody panels & exterior trim
SummaryREF 1705
PART
Windshield Drain Grille Set
OEM
FITS
C-Class W203 / S203 / CL203
PartREV 2026

Loading 3D viewer...

Ref 17051 STL filePrints without supports
Field photographs
3 PLATES
Plate 1 of 3

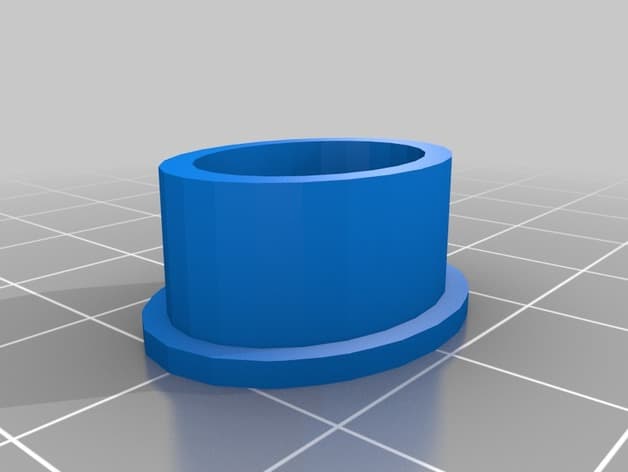

PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1705
  • [01]Gitter_Wasserabl├ñufe.stl.STL
  • [02]Bounding box23.000 × 17.886 × 10.002 mm
  • [03]Volume1,224.858 mm³
Field notes
BY FRANK ALLRAMSEDER (ALLRAMSEDER)

Replacement grilles for the three windshield water drains, designed on a C200 of this generation. The source provides three CAD views and one printable STL but does not state body style, market or facelift coverage. Compare all three drain openings before printing, use UV-, heat- and water-resistant material, keep every drain passage open and verify water flows freely without entering the cabin or electronics.
