PART №1769
Wiper-Compartment Opening Plug
REPLACES OEMA1009870044
TPU2 FILESCC-BY-NC-SABody panels & exterior trim
- PART
- Wiper-Compartment Opening Plug
- OEM
- A1009870044
- FITS
- Vito / Viano / V-Class W639
Loading 3D viewer...
Ref 17692 STL filesPrints without supports
Field photographs
6 PLATES
PLATE 01 / 06No caption recorded
Files & dimensions
MAN-1769- [01]w639-42mm-plug.3mfw639-42mm-plug.3mf.STL
- [02]w639-42mm-plug.stlw639-42mm-plug.stl.STL
- [03]Bounding box144.879 × 100.902 × 6.000 mm
- [04]Volume28,526.573 mm³
Field notes

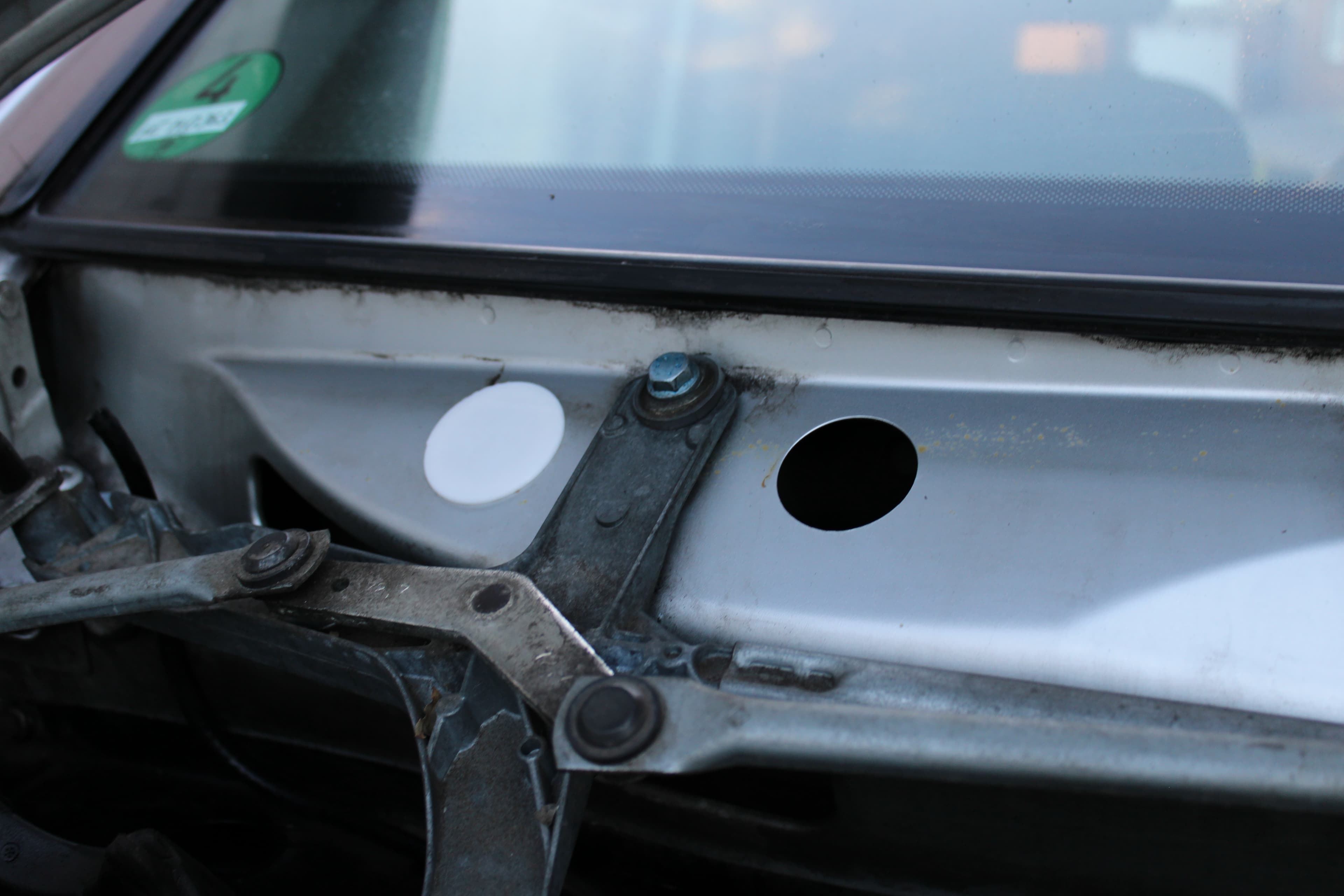

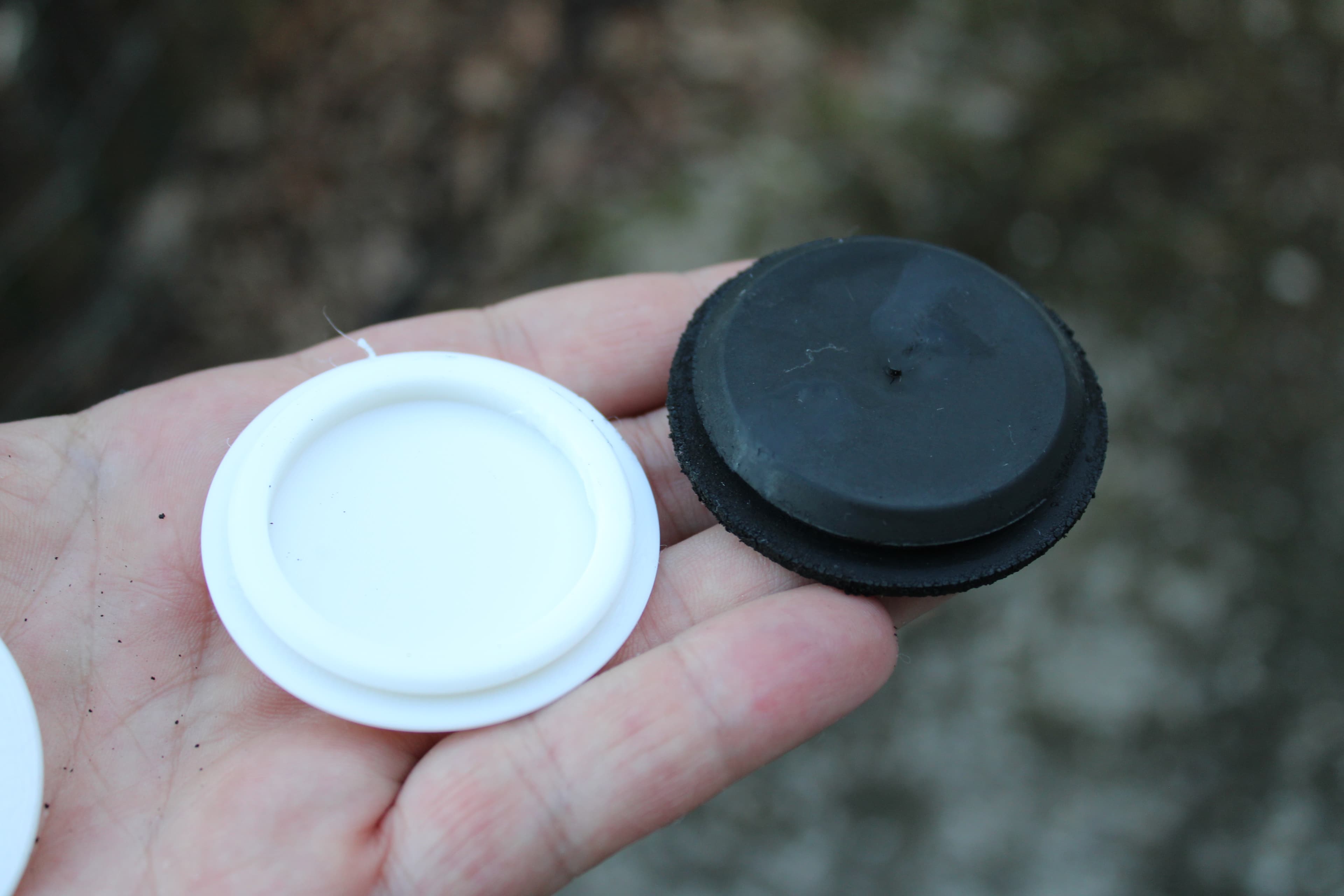

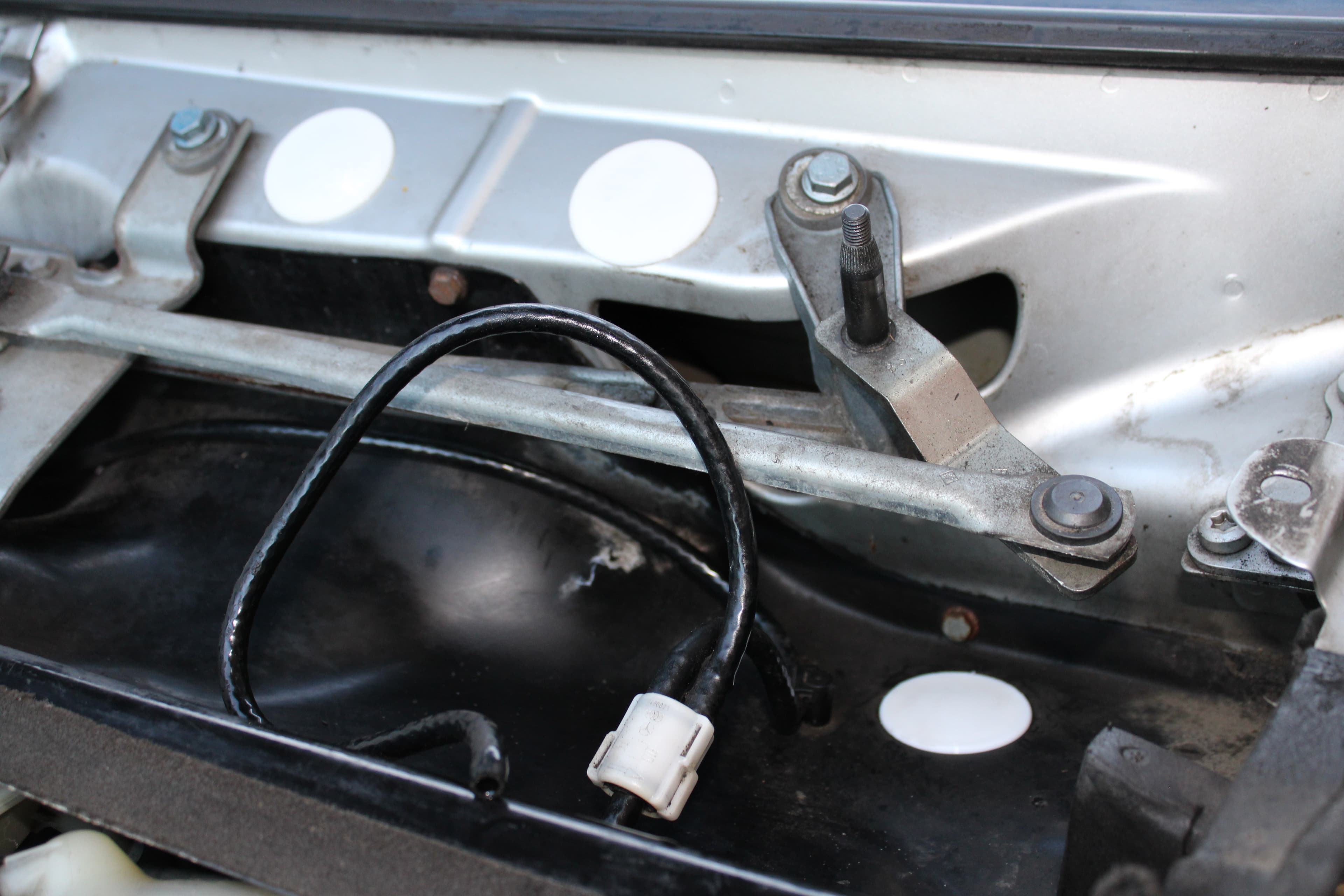

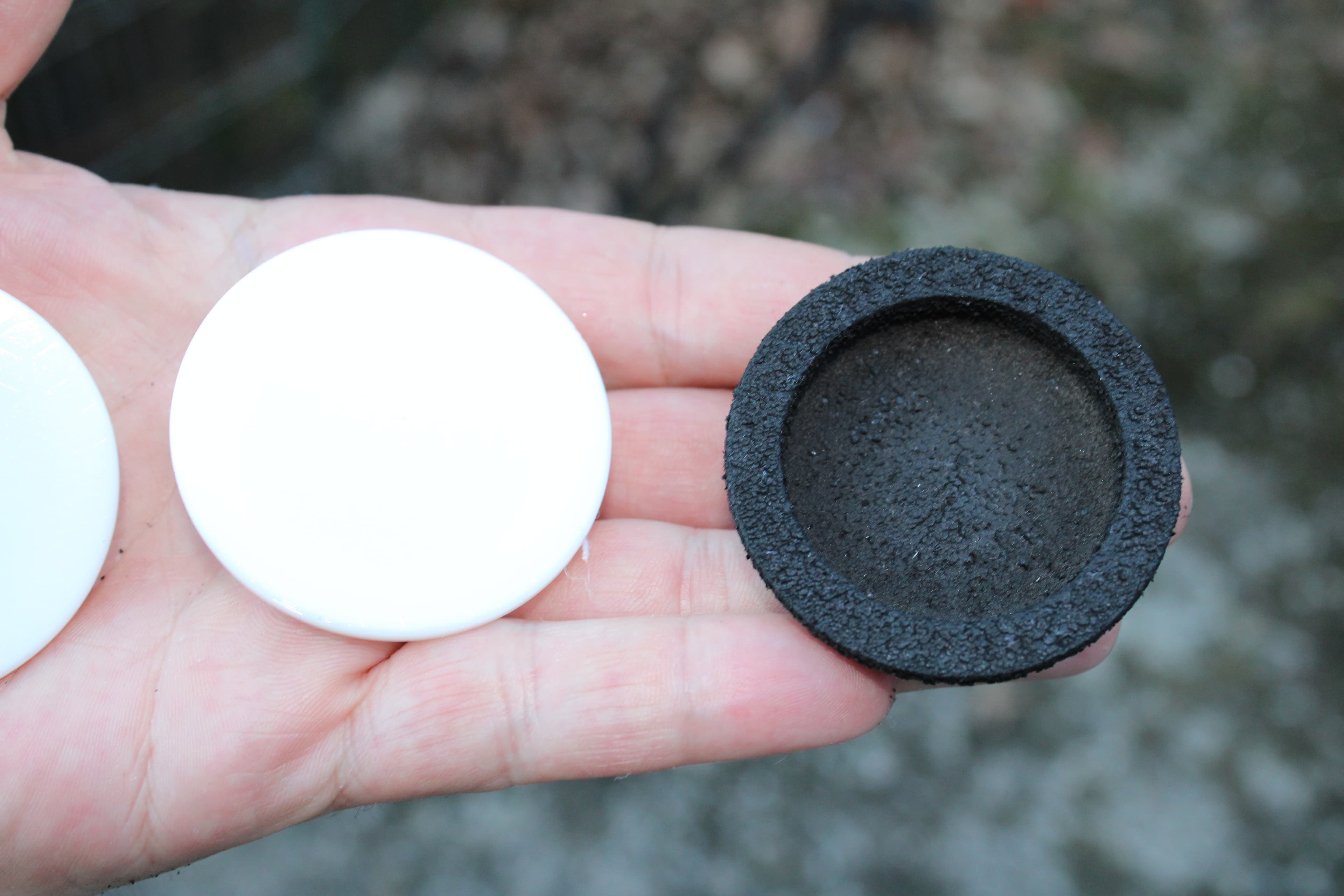

BY MOWERKFlexible 42 mm plug for sealing body openings in the windscreen-wiper compartment. The creator warns that rigid filament will not fit; source photographs compare printed and original plugs and show the installed locations. Print only in suitable TPU/flex, verify every opening size and drainage path, and confirm the plugs seat fully without trapping water or wiring.
