PART №1833

Wireless-Charger Console Tray

ABS · Nylon · PETGMULTI-PART4 FILESCC-BY-NCConsole & storage
SummaryREF 1833
PART
Wireless-Charger Console Tray
OEM
FITS
C-Class W205 / S205 / C205 / A205
PartREV 2026

Loading 3D viewer...

Ref 18334 STL filesPrints without supports
Field photographs
7 PLATES
Plate 1 of 7
PLATE 01 / 07No caption recorded
Files & dimensions
MAN-1833

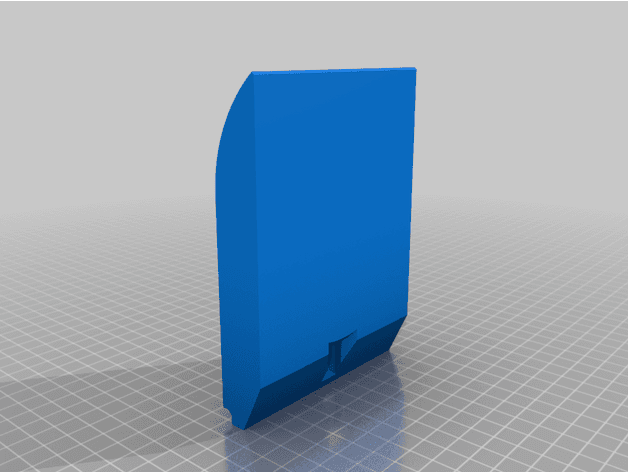

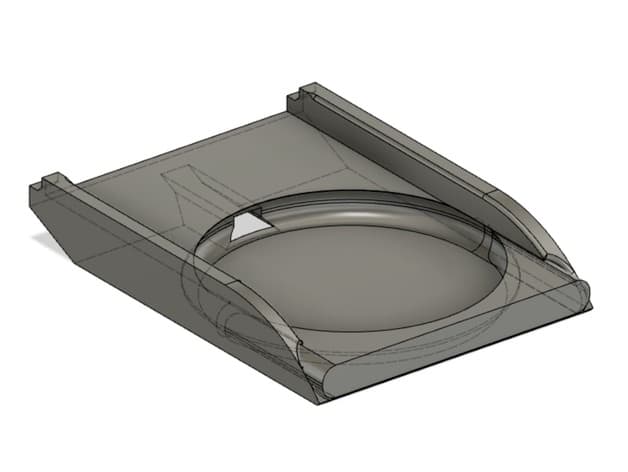

  • [01]Base.stl.STL
  • [02]Base_V2.stl.STL

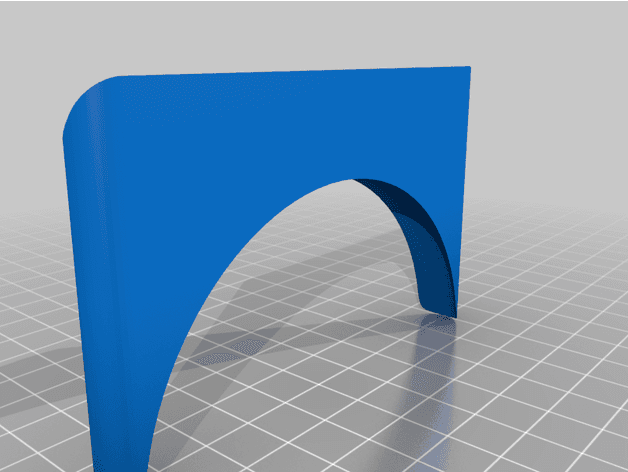

  • [03]Tapa.stl.STL
  • [04]Tapa_V2.stl.STL
  • [05]Bounding box140.004 × 102.000 × 65.400 mm
  • [06]Volume169,177.401 mm³
Field notes
BY ANDRES LASRY (LASRY)

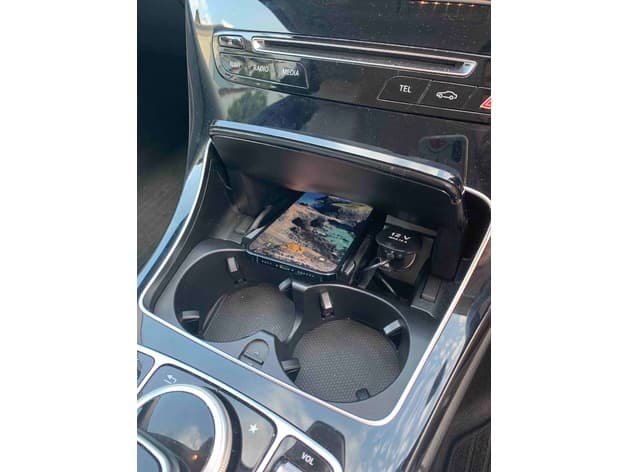

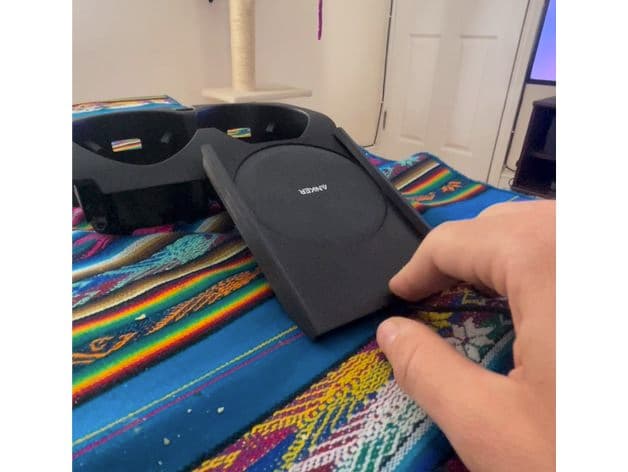

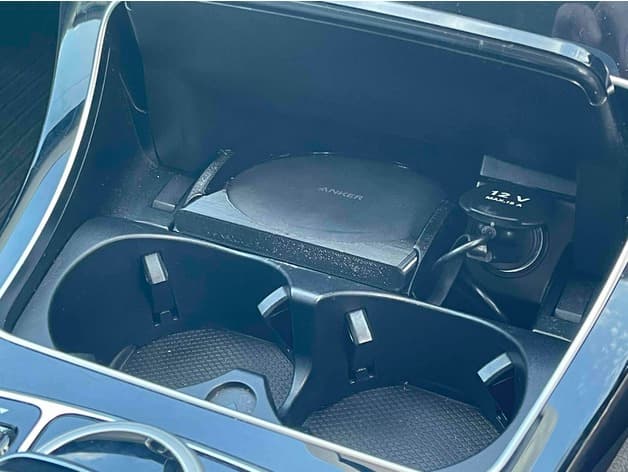

Four-file tray system for an Anker PowerWave Pad in the center compartment. The source shows the tray fitted with the compartment opening and closing and includes revised V2 geometry that moves the charger 15 mm for smaller phones. Select the matching base and cover pair, use cabin-heat-resistant material, route the cable without pinching it, and confirm the phone, tray, lid, selector, and adjacent controls remain secure and unobstructed.
