PART №1858

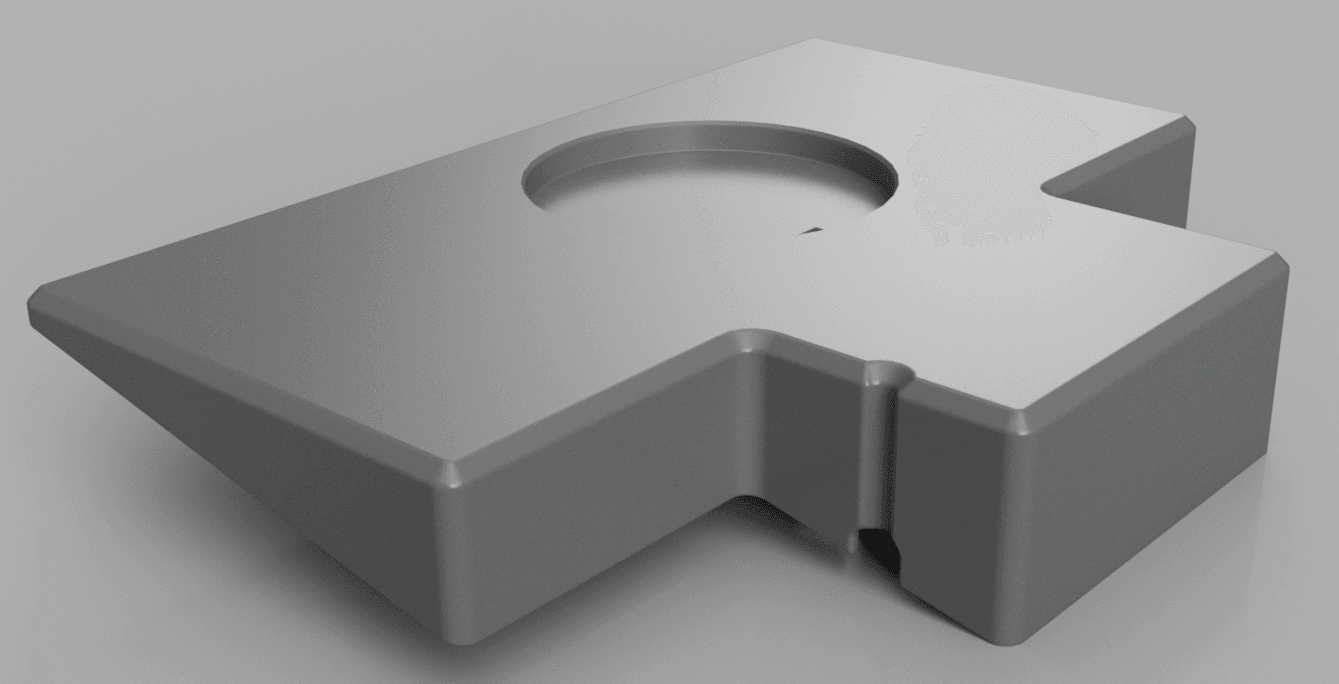

Wireless Charger Dock

ABS · PETG2 FILESCC-BY-SAConsole & storage
SummaryREF 1858
PART
Wireless Charger Dock
OEM
FITS
A-Class W177
PartREV 2026

Loading 3D viewer...

Ref 18582 STL filesPrints without supports
Field photographs
5 PLATES
Plate 1 of 5
PLATE 01 / 05No caption recorded
Files & dimensions
MAN-1858
  • [01]W177 Charger.step.STL
  • [02]W177 Charger.stl.STL
Field notes
BY ANTONY

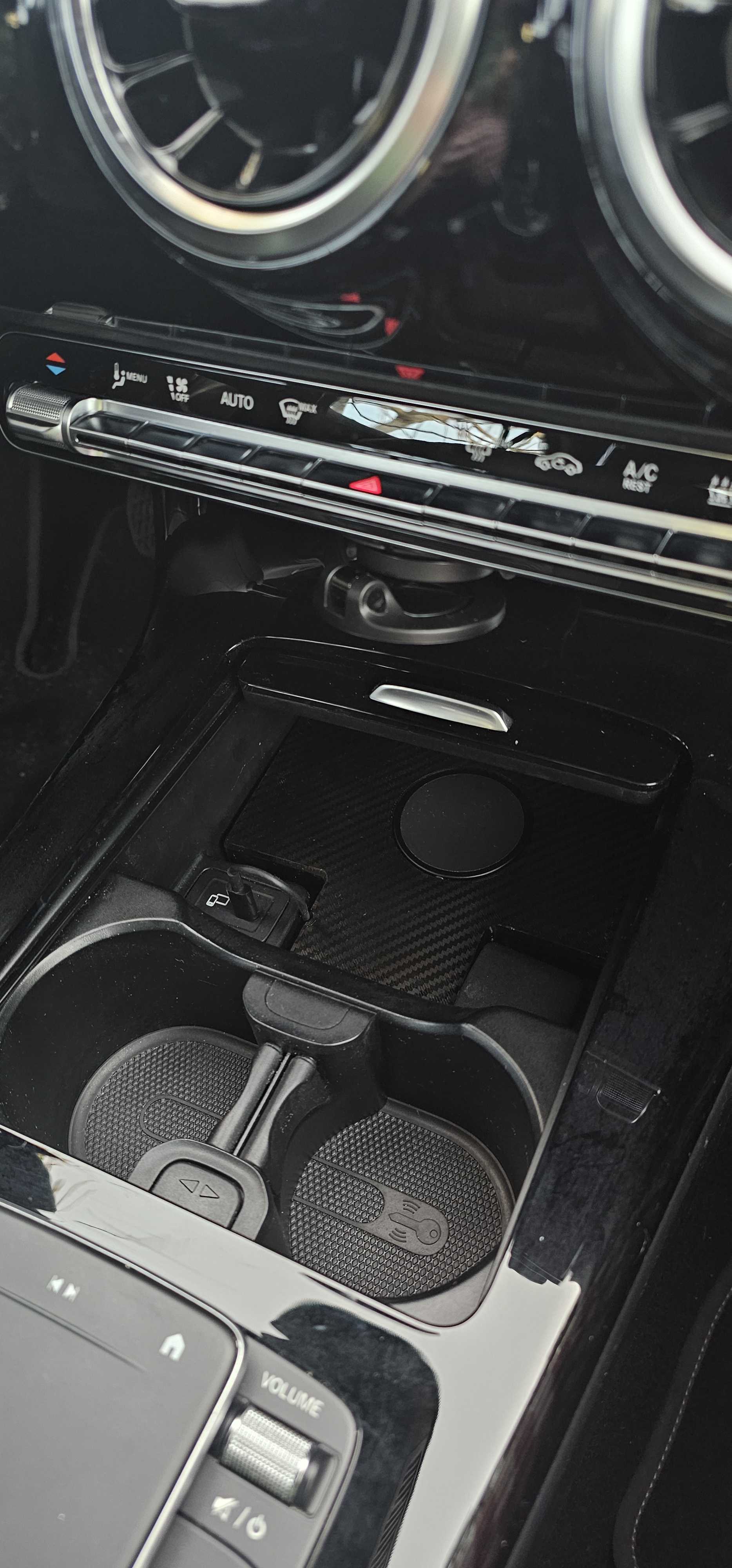

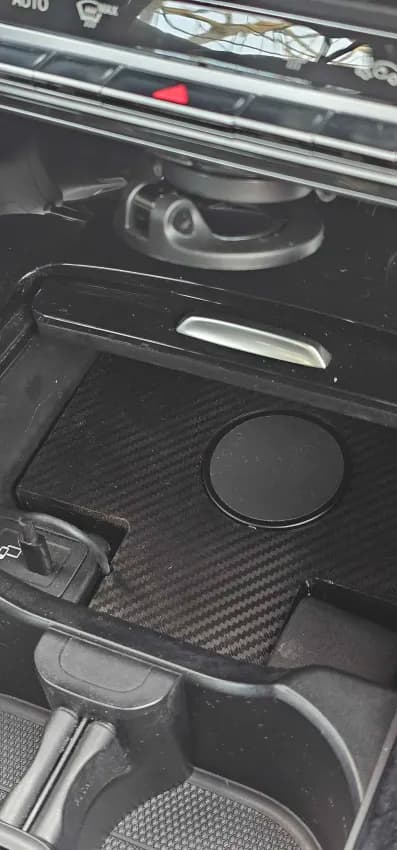

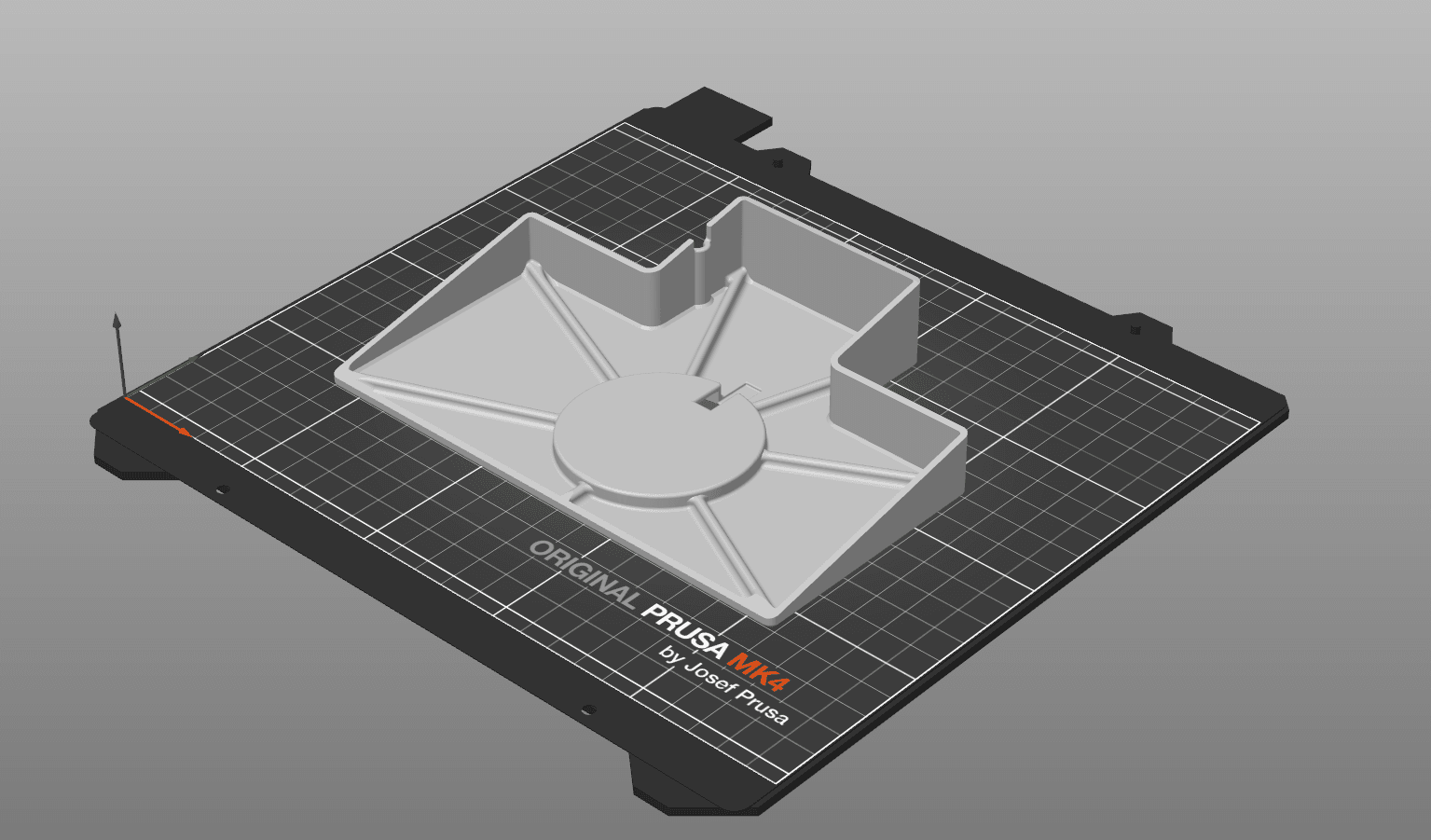

Drop-in holder for a MagSafe-compatible wireless charger in the front storage cubby. The creator made and photographed it in a 2020 car and explicitly states W177 fitment. They also suggest same-generation W247, C118, H247 and X247 compatibility but require a visual cubby check; those lines are not among the live generations in this catalog, so only the tested W177 generation is linked. The model is sized around the charger identified on the source page and was designed for an S23 Ultra; verify phone, case, charger and cable clearance before printing. Place the largest face down and use supports. The creator recommends a cabin-heat-resistant material such as PET, PETG, ABS or ASA. Secure the cable and confirm the dock cannot obstruct controls or become loose while driving.
