PART №1672

Armrest Cup Holder

ABS · Nylon · PETG1 FILECC-BYConsole & storage
SummaryREF 1672
PART
Armrest Cup Holder
OEM
FITS
SLK / SLC R170
PartREV 2026

Loading 3D viewer...

Ref 16721 STL filePrints without supports
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1672
  • [01]mercipohartarto_v5.stl.STL
  • [02]Bounding box188.195 × 80.023 × 64.615 mm
  • [03]Volume52,409.442 mm³
Field notes
BY TAMÁS SIMIGH (IMOT)

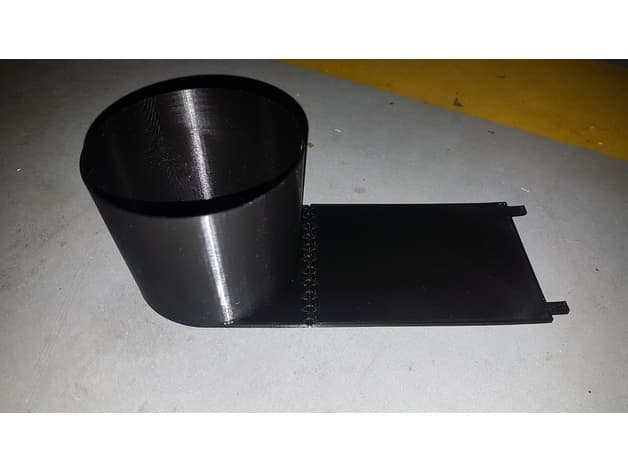

Cup holder with an integral mounting tongue for the centre-armrest compartment. The creator states exact generation fitment and shows the physical print loose and installed, with the tongue pushed beneath the armrest screw. Use cabin-heat-resistant material, avoid damaging the armrest fastener or trim, confirm the lid and selector remain unobstructed and test retention only with a closed cold container before road use.
