PART №1655

Ashtray Storage Bin

ABS · PETG1 FILECC-BY-NCConsole & storage
SummaryREF 1655
PART
Ashtray Storage Bin
OEM
FITS
C-Class W202 / S202
PartREV 2026

Loading 3D viewer...

Ref 16551 STL filePrints without supports
Field photographs
2 PLATES

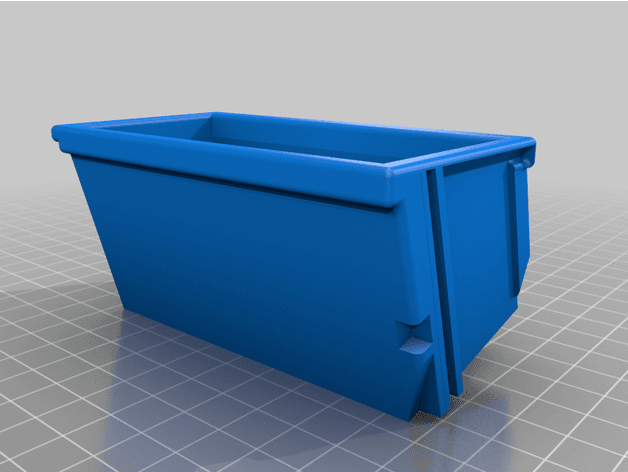

Plate 1 of 2
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1655
  • [01]Mercedes_W202_Ashtray_Replacement.stl.STL
  • [02]Bounding box99.000 × 59.304 × 50.307 mm
  • [03]Volume31,367.445 mm³
Field notes
BY JULIAN (THESTEW)

Storage-bin replacement for the factory ashtray opening. The source notes that light from the original ashtray bulb can shine through light-coloured material and supplies one STL with source renders. Use opaque cabin-heat-resistant material if light bleed is undesirable, compare the ashtray opening and lamp clearance, deburr the edges and confirm the bin and stored items cannot interfere with the selector, controls or occupants or become loose under braking.
