PART №1793

Audio 50 APS iPhone 6 Mount

ABS · Nylon · PETG1 FILECC-BY-NCDashboard & controls
SummaryREF 1793
PART
Audio 50 APS iPhone 6 Mount
OEM
FITS
C-Class W204 / S204 / C204
PartREV 2026

Loading 3D viewer...

Ref 17931 STL filePrints without supports
Field photographs
5 PLATES
Plate 1 of 5
PLATE 01 / 05No caption recorded
Files & dimensions
MAN-1793

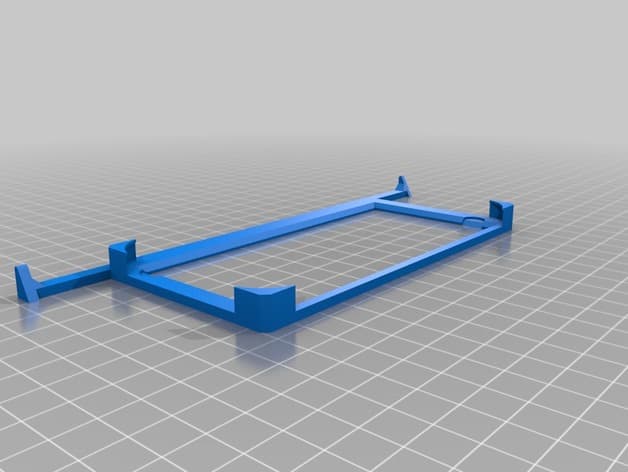

  • [01]audio-50-aps-iphone-6-mount.stl.STL
  • [02]Bounding box192.800 × 71.500 × 10.000 mm
  • [03]Volume10,042.661 mm³
Field notes
BY SILVAN REISER (OSULIVAN)

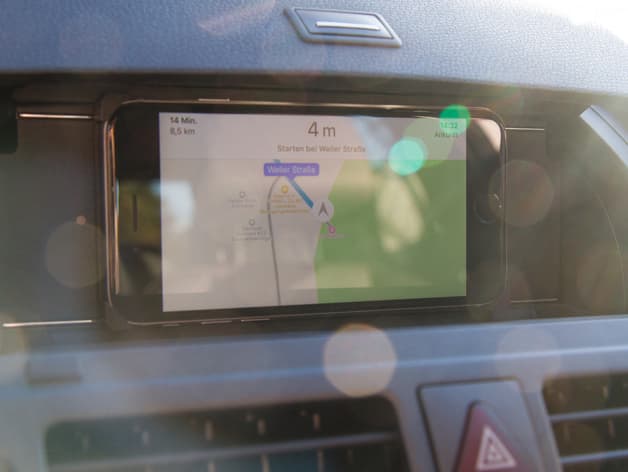

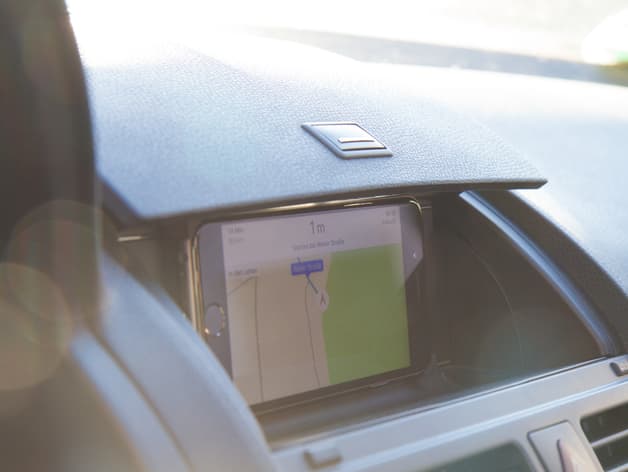

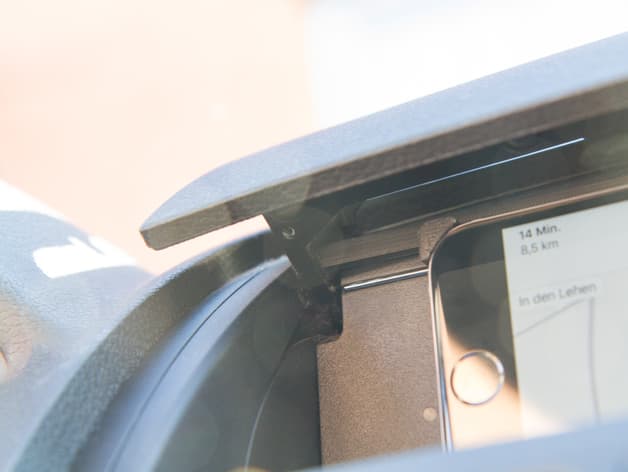

Snap-in phone mount designed and road-used in a 2011 vehicle with the Audio 50 APS navigation display cover. The creator states that it retains an iPhone 6 during acceleration, braking and cornering and allows charging, but the display cover cannot close while fitted. Match the Audio 50 APS cover and phone dimensions, use cabin-heat-resistant material, snap it in without forcing the cover and verify that the phone cannot obscure controls, airbags or the road or detach under braking.
