Mercedes-Benz C-Class W204 / S204 / C204 3D-printable parts

Five-file tablet-holder variants fitted over the original radio-display cover of a CDI 220, including a later version positioned lower and farther from the driver’s view. The creator designed around an 8-inch tablet and retained access to the original display. Match the dashboard cover, tablet and viewing position, use cabin-heat-resistant material, protect trim and wiring and verify the assembly cannot block the road, controls, airbags or ventilation or release the tablet under braking.

Flexible replacement tether published specifically for this generation. The creator requires TPU and instructs removal of the lid pin and remaining old tether before fitting the new piece snugly around the fuel cap without affecting its seal. Compare the pin, cap eye, tether length and filler-lid clearance, use fuel-vapour-, UV- and weather-resistant TPU and confirm the tether cannot enter the filler neck or prevent the cap from sealing completely.

Cup holder designed for a 2013 C180 and physically shown in its centre console, with short and long sleeves for 59 mm cans and larger containers. The creator recommends PETG or ABS for cabin heat, supports and roughly 0.16–0.24 mm layers. Match the console and container diameter, check selector and control clearance and use only closed, cool containers until retention is proven; verify the holder cannot loosen or cause a spill under braking.

Cupholder insert designed and printed for charging a Huawei P30 Pro from an Anker PowerPort wireless charger while leaving the rear storage compartment available. The source shows the physical insert and phone in the vehicle and includes one selected STL plus the preserved editable author file. Match the cupholder, phone and charger dimensions, use cabin-heat-resistant material, protect and strain-relieve the power lead and confirm the phone and insert cannot obstruct the selector or controls or detach under braking.

Compartmented insert designed for the door pocket across the stated 2007–2015 production span, with spaces for cards, a flashlight, tissues or a small shaver and pens. The source supplies one STL and one source CAD image but does not identify door side, body style or steering market. Measure the pocket and stored items, use tough cabin-heat-resistant material and confirm the insert seats fully without scratching trim, interfering with door operation or allowing hard objects to escape under braking.

Combined navigation-display holder and Galaxy S20 Ultra case published for this generation and shown installed in the source vehicle. The creator links both recoverable remix sources and instructs printing the supplied geometry at 1% scale. Confirm that scaling produces the intended phone and dashboard-interface dimensions before printing, use cabin-heat-resistant material and verify that the mount cannot obstruct controls, airbags or the road or release the phone under braking.

Three-piece iPhone 7 holder designed specifically for the original CD slot and shown installed in the source vehicle; the creator notes a thick phone case and charging lead. Match the phone, case and head-unit slot, use cabin-heat-resistant material, insert without forcing the disc mechanism and route the cable clear of controls. Verify that the holder cannot obscure controls, airbags or the road or eject the phone under braking.

Replacement retaining nut published specifically for this generation and supplied with a source CAD image. The creator does not state the underbody panel position, thread dimensions, engine, drivetrain, body style, material or test history. Compare the original nut, stud thread, panel thickness and installed clearance, use heat-, water-, salt- and impact-resistant material and confirm the underbody cover is fully retained after a road test; do not use this print for structural, suspension or lifting points.

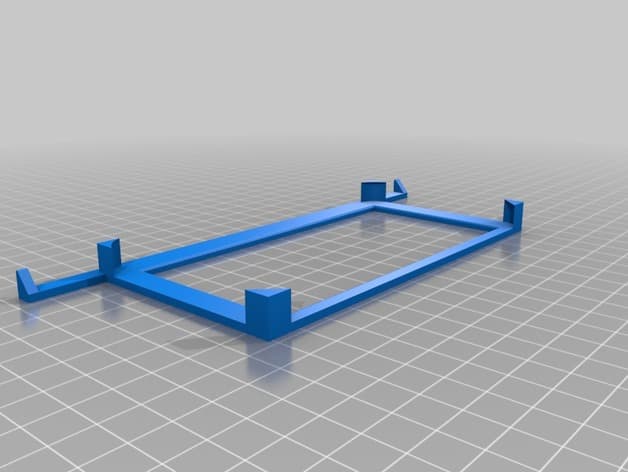

Phone mount published specifically for this generation and a Samsung Galaxy S5. The author supplies one printable model and a source CAD image but does not state the head-unit revision, mounting procedure, steering side or road testing. Match the device and dashboard interface before printing, use cabin-heat-resistant material and confirm the mount cannot damage trim, obstruct the display, controls, airbags or road view, or release the phone under braking.

Internal joystick shaft for the COMAND controller, measured from a broken original and redesigned without its nut. The creator explicitly identifies C-Class W204 and E-Class W212 applications and specifies 0.1 mm layers and 100% infill; no other W212-generation body styles are stated. Compare the removed shaft and controller revision, use tough cabin-heat-resistant material, transfer and assemble the mechanism without damaging electronics and verify full rotary, tilt and press operation before driving.

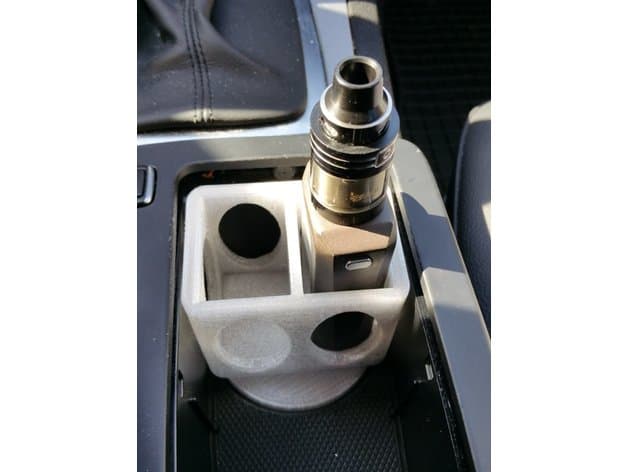

Three-file stand for holding several stated box-mod device sizes in the centre-console cupholder. For this generation the creator instructs that the supplied disc be glued or screwed to the bottom of the stand and reports printing in PETG. Match the cupholder and device dimensions, use cabin-heat-resistant material, assemble the disc securely and confirm that the stand and device cannot obstruct the selector or controls, spill into sockets or become a projectile under braking.

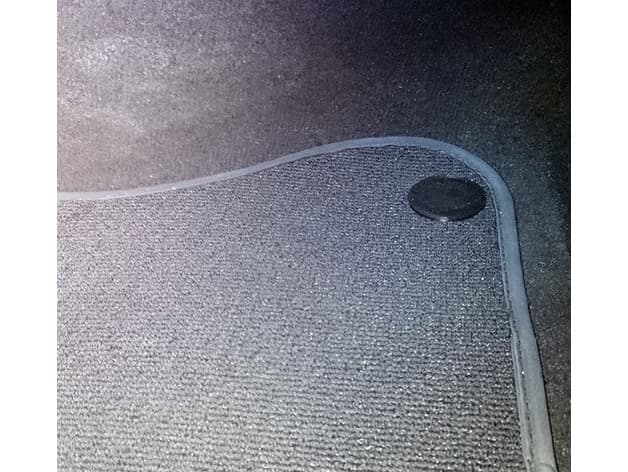

Two-piece floor-mat retaining clip published for this generation and shown on the physical carpet and anchor. The creator warns that small scaling changes may be needed for a particular printer and recommends checking the top and bottom separately so they snap securely without becoming inseparable. Compare the original anchor and mat opening, use tough cabin-heat-resistant material and confirm every mat remains flat, removable for service and completely clear of the accelerator, brake and clutch pedals.

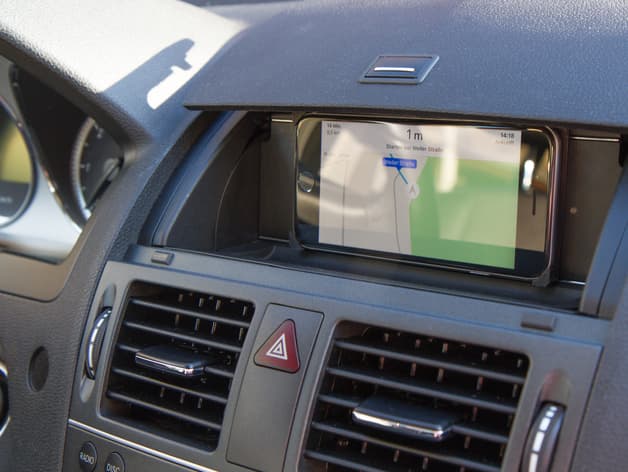

Snap-in phone mount designed and road-used in a 2011 vehicle with the Audio 50 APS navigation display cover. The creator states that it retains an iPhone 6 during acceleration, braking and cornering and allows charging, but the display cover cannot close while fitted. Match the Audio 50 APS cover and phone dimensions, use cabin-heat-resistant material, snap it in without forcing the cover and verify that the phone cannot obscure controls, airbags or the road or detach under braking.

Strengthened replacement clip for the glovebox ballpoint-pen holder. The creator explicitly lists W169, W203, W204, W209, W212 and W245 fitment, shows the part installed and recommends ABS for cabin heat; W245 is absent from the live taxonomy. No body, market or production-break split is stated, so compare the original clip and glovebox recess before printing, fit without damaging the lid and confirm the pen and clip cannot detach into the footwell.

Left- and right-hand hooks for the front panoramic-roof sunblind, with physical prints shown by the creator. The source states CLC and W203/W204 fitment and recommends 0.2 mm layers, 100% infill and supports, but gives no production break or roof option code. Compare both original hooks and roof system before printing, use UV- and cabin-heat-resistant material and verify smooth blind travel with no loose part near occupants.
