PART №1794

Floor-Mat Retaining Clip Set

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYCabin trim, cargo & roof
SummaryREF 1794
PART
Floor-Mat Retaining Clip Set
OEM
FITS
C-Class W204 / S204 / C204
PartREV 2026

Loading 3D viewer...

Ref 17942 STL filesPrints without supports
Field photographs
7 PLATES
Plate 1 of 7
PLATE 01 / 07No caption recorded
Files & dimensions
MAN-1794

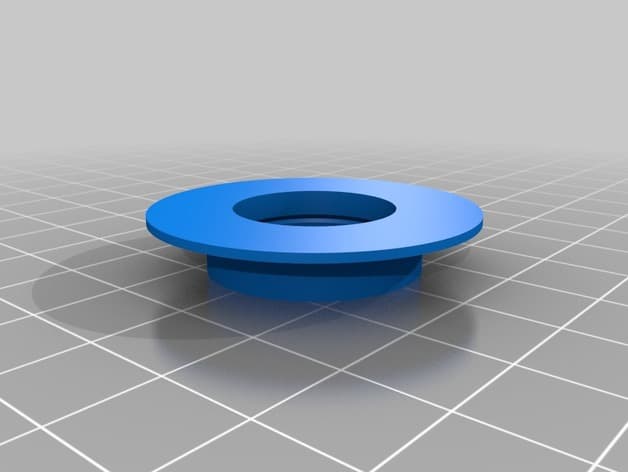

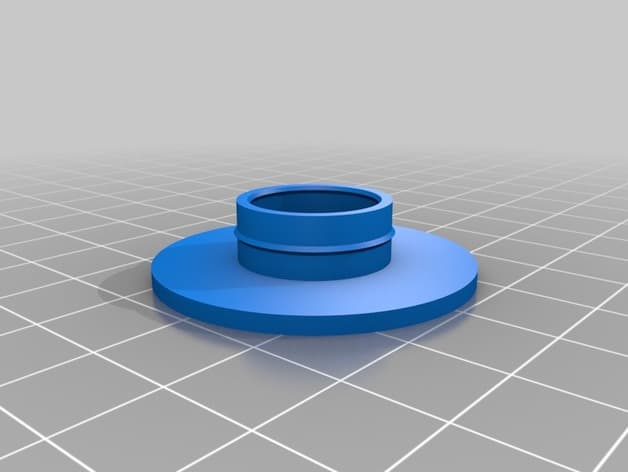

  • [01]carpet-clip-bottom.stl.STL
  • [02]carpet-clip-top.stl.STL
  • [03]Bounding box38.000 × 38.000 × 16.102 mm
  • [04]Volume4,841.598 mm³
Field notes
BY PIOTR KULIKIEWICZ (PRESLEY4B)

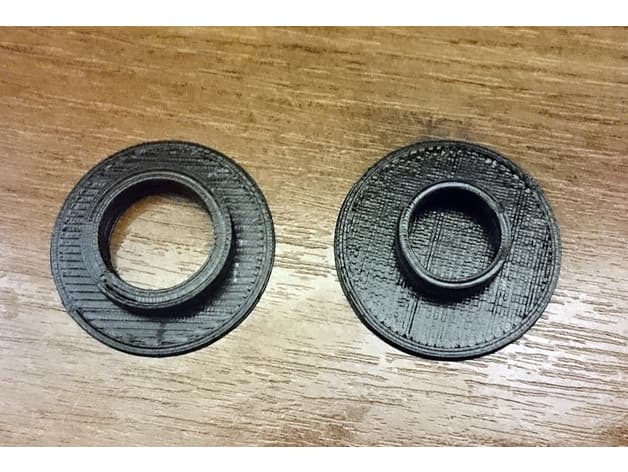

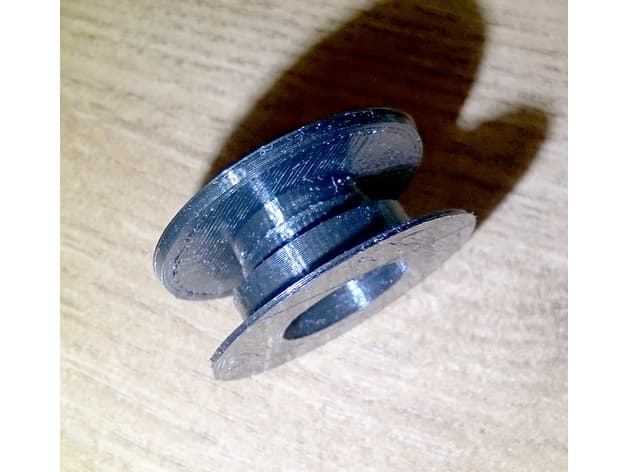

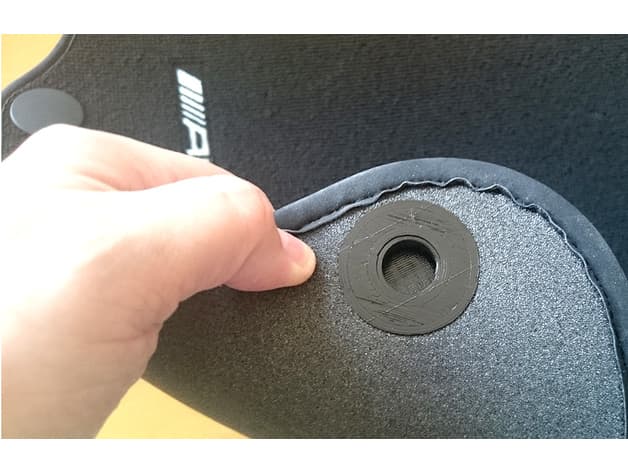

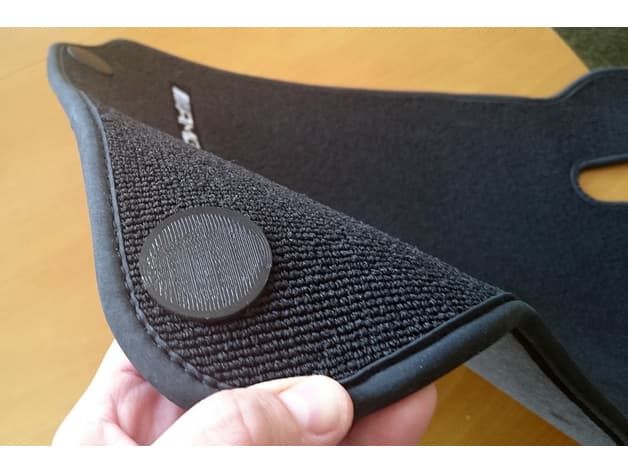

Two-piece floor-mat retaining clip published for this generation and shown on the physical carpet and anchor. The creator warns that small scaling changes may be needed for a particular printer and recommends checking the top and bottom separately so they snap securely without becoming inseparable. Compare the original anchor and mat opening, use tough cabin-heat-resistant material and confirm every mat remains flat, removable for service and completely clear of the accelerator, brake and clutch pedals.
